96 Rockwell Automation Publication 1734-UM013N-EN-P - September 2017
Chapter 5 Configure the Module in a GuardLogix Controller System
g. From the Input Status pull-down menu, choose from the following.
h. From the Data Format pull-down menu, use the default ‘Integer’.
5. Click OK to return to the Module Properties dialog box.

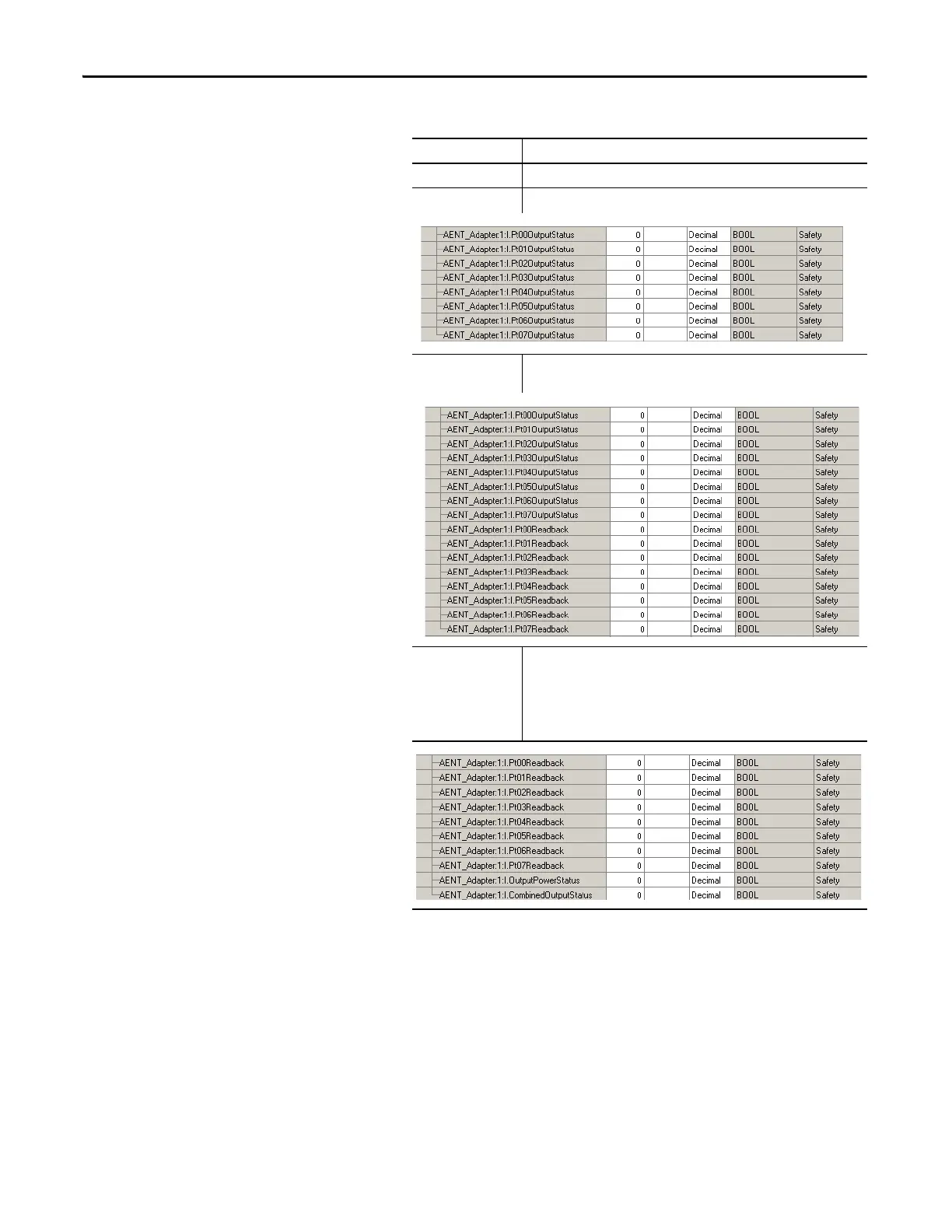

Choose Description
None There are no status tags, only data for the outputs.
Pt. Status There is one status tag for each output point.
Pt. Status - Readback • There is one status tag for each output point.
• There is one data tag for the output readback.
Combined Status -
Readback - Power
• There is one data tag for output readback on each output point.
• One BOOL tag represents the Output Power Status (error bit) from the input
assembly.
• One BOOL tag represents an AND of the status bits for all output points.
(Combined Output Status). For example, if any output channel has a fault,
this bit goes LO.
(1)
(1) When using combined status, use explicit messaging to read individual point status for diagnostic purposes.
