Allen-Bradley 1746-HSCE User Manual

Publication 1746-5.16
19

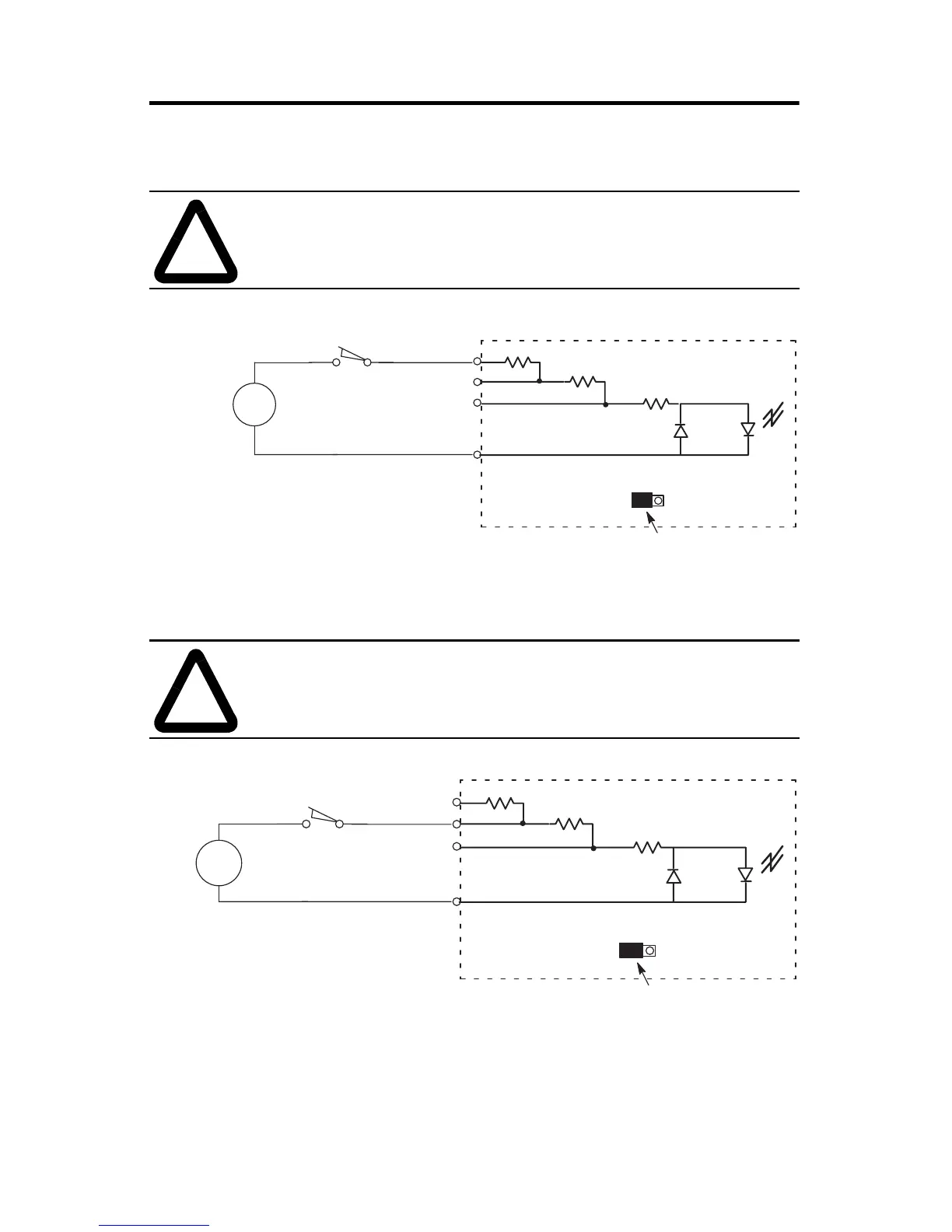

Limit Switch Wiring (24V dc Hard Contact)
Limit Switch Wiring (12V dc Hard Contact)
!
ATTENTION: Only connect one LS input range at a time.
Otherwise, the module will be damaged.
!
ATTENTION: Only connect one LS input range at a time.
Otherwise, the module will be damaged.
+
±
321
Hard Contact
Limit Switch
HSCE module
JW1
Jumper placed
for 10 ms filtering
Do not connect LS (5V dc) or
LS (12V dc) Terminals
24V dc
VS
COM
LS (24V dc)
LS (12V dc)
LS (5V dc)
LS COM
+
±
321
Hard Contact
Limit Switch
HSCE module
JW1
Jumper placed
for 10 ms filtering
Do not connect LS (5V dc) or
LS (12V dc) Terminals
12V dc
VS
COM
LS (24V dc)
LS (12V dc)
LS (5V dc)
LS COM
