Dip Switch and Jumper Locations

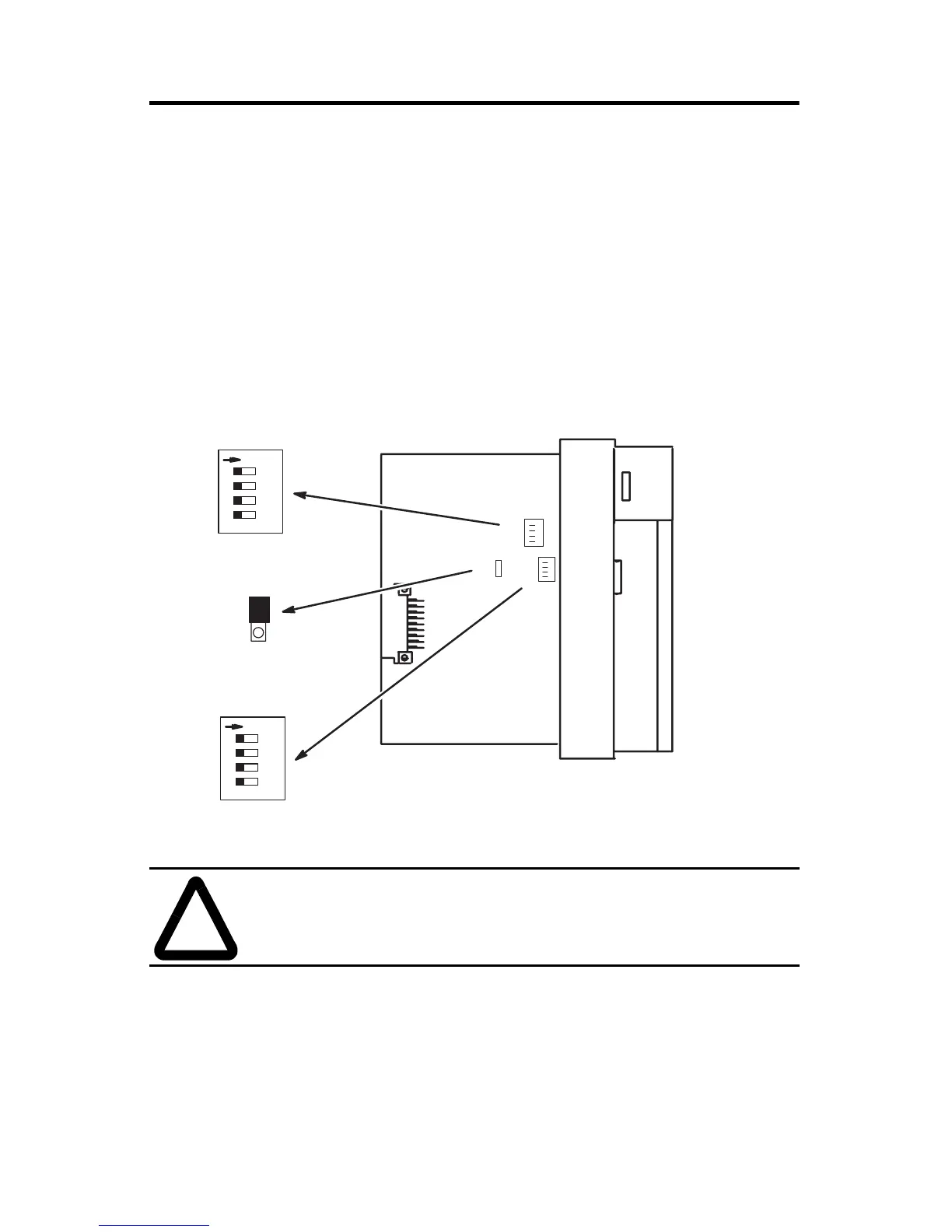

Two dip switches (SW1 and SW2) and one jumper (JW1) are located on the side
of the module.
• SW1 selects the type of input (single ended or differential).
• SW2 selects the output voltage range (4.5-10V dc or 10-30V dc).
• JW1 selects the filtering rate (300 µs or 10 ms) used to debounce the limit
switch input.
Default settings are shown below:
!
ATTENTION: Use a small screwdriver to change dip switch
positions. Graphite from pencils will damage the switch.
1234
N
O
1234
N
O
1
3
SW2 Default
10-30V dc
JW1 Default
10 mS Filter
SW1 Default
Single-Ended Operation
SW2
JW1
SW1
JW1
SW2
JW1
