10
Publication 1746-5.16

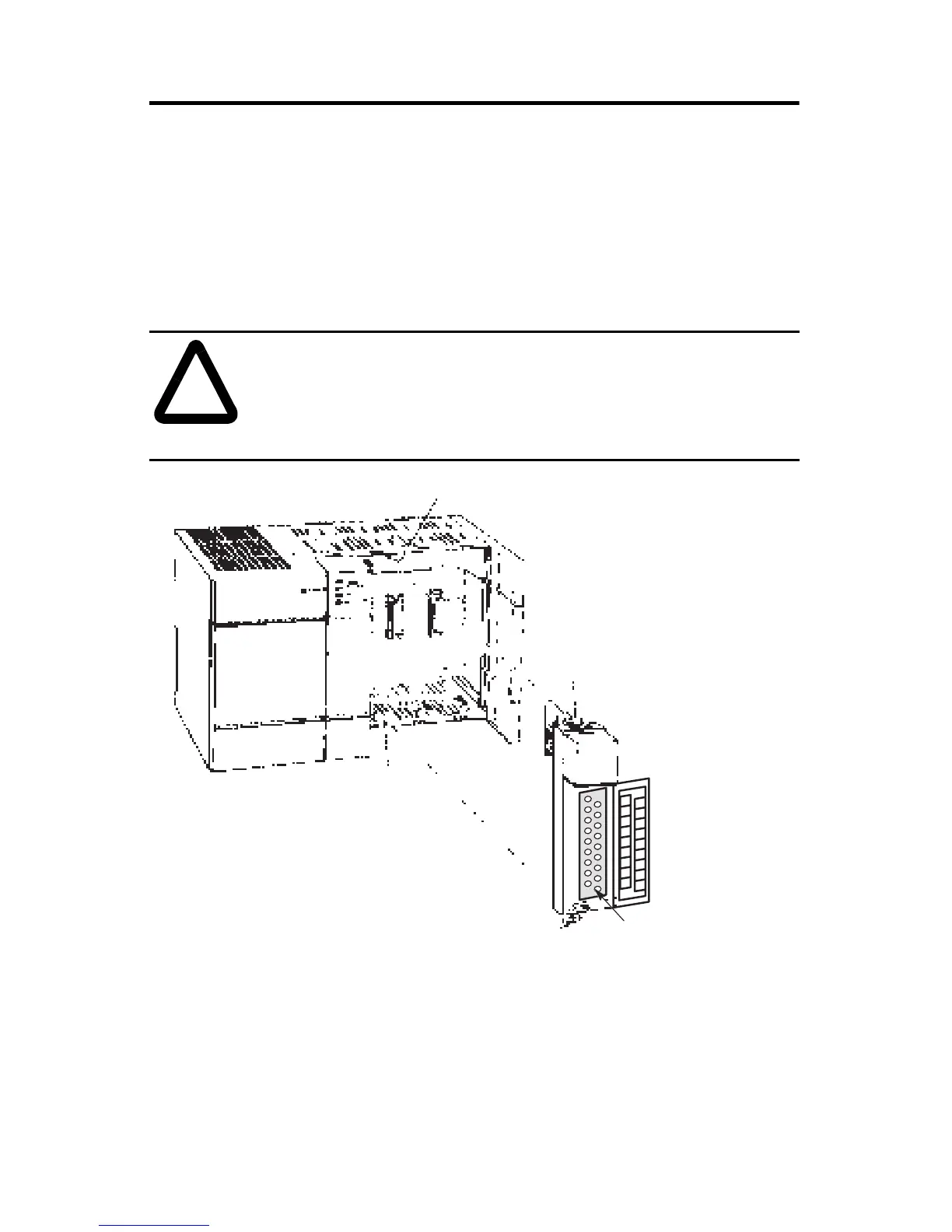

Installing the Module
Installation procedures for this module are the same as any other discrete I/O or
specialty module.
1. Align the full-size circuit board with the rack card guide. The first slot (slot
0) of the first rack is reserved for the CPU.
2. Slide the module into the rack until the top and bottom latches are latched.
To remove the module, press the releases at the top and bottom of the
module and slide it out.
Important:
Set the dip switches before installing the module.
!
ATTENTION: Disconnect power before attempting to install,
remove, or wire the module.
Make sure your SLC power supply has adequate reserve current
capacity. The module requires 320 mA at 5V dc.
1
1
2
3
4
