20
Publication 1746-5.16

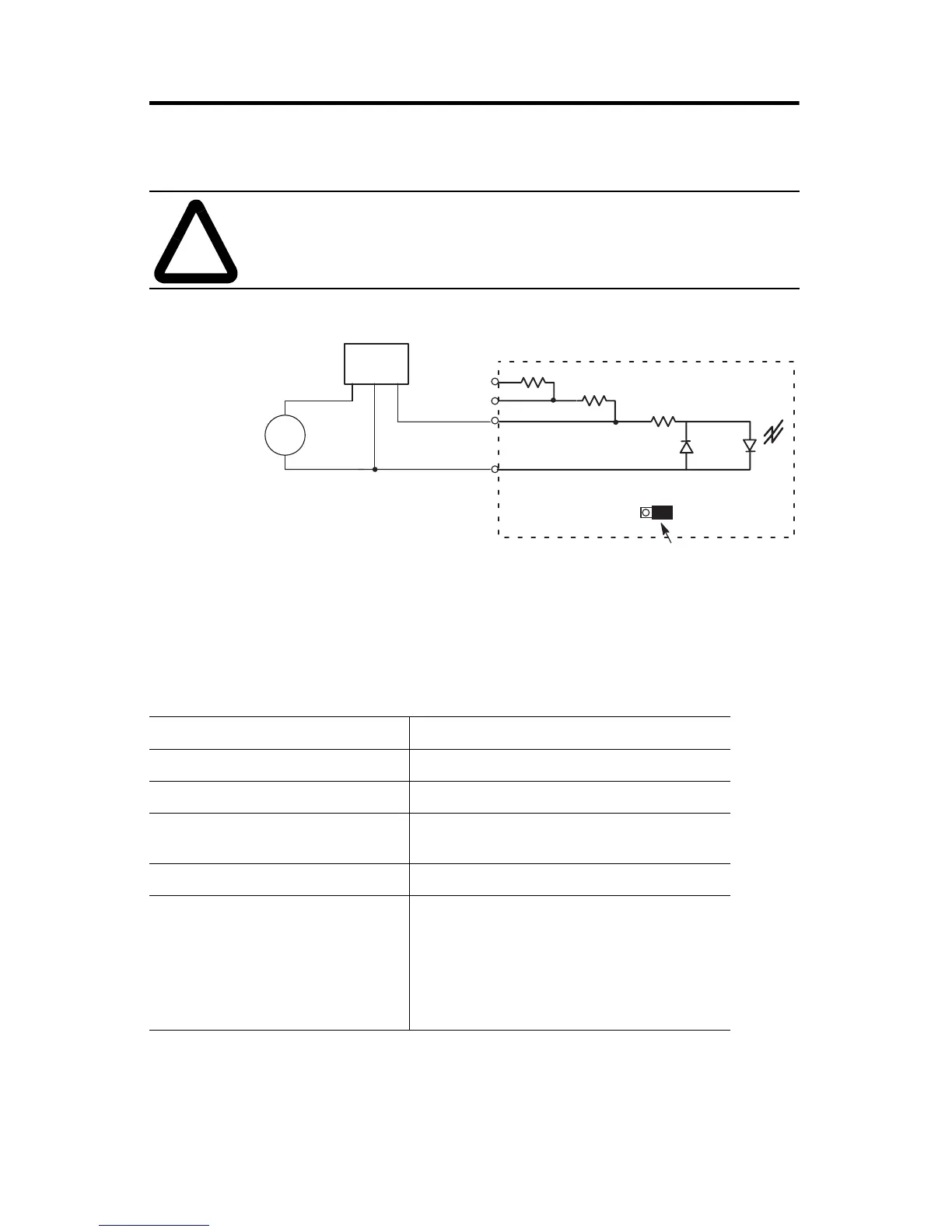

Limit Switch Wiring (5V dc Solid State)
Specifications
General
!
ATTENTION: Only connect one LS input range at a time.
Otherwise, the module will be damaged.
Operating Temperature 0
°
C to +60
°
C (+32
°
F to +140
°
F)
Storage Temperature -40
°
C to +85
°
C (-40
°
F to +185
°
F)
Humidity 5 to 95% without condensation
Backplane Current Consumption
(power supply loading)
320 mA at +5V dc
0 mA at +24V dc
Maximum Cable Length
(1)
(1)
Belden 9503 or equivalent
305 m (1000 ft)
Agency Certification
(when product or packaging is
marked)
CSA certified
CSA Class I, Division 2
Groups A, B, C, D certified
•UL listed
CE marked for all applicable directives
+
±
321
Solid State
Limit Switch
HSCE module
Do not connect LS (12V dc) or
LS (24V dc) Terminals
Jumper placed
for 300 µs
filtering
JW1
5V dc
VS
COM
LS (24V dc)
LS (12V dc)
LS (5V dc)
LS COM
COM
OUT
VS
