8
Publication 1746-5.16

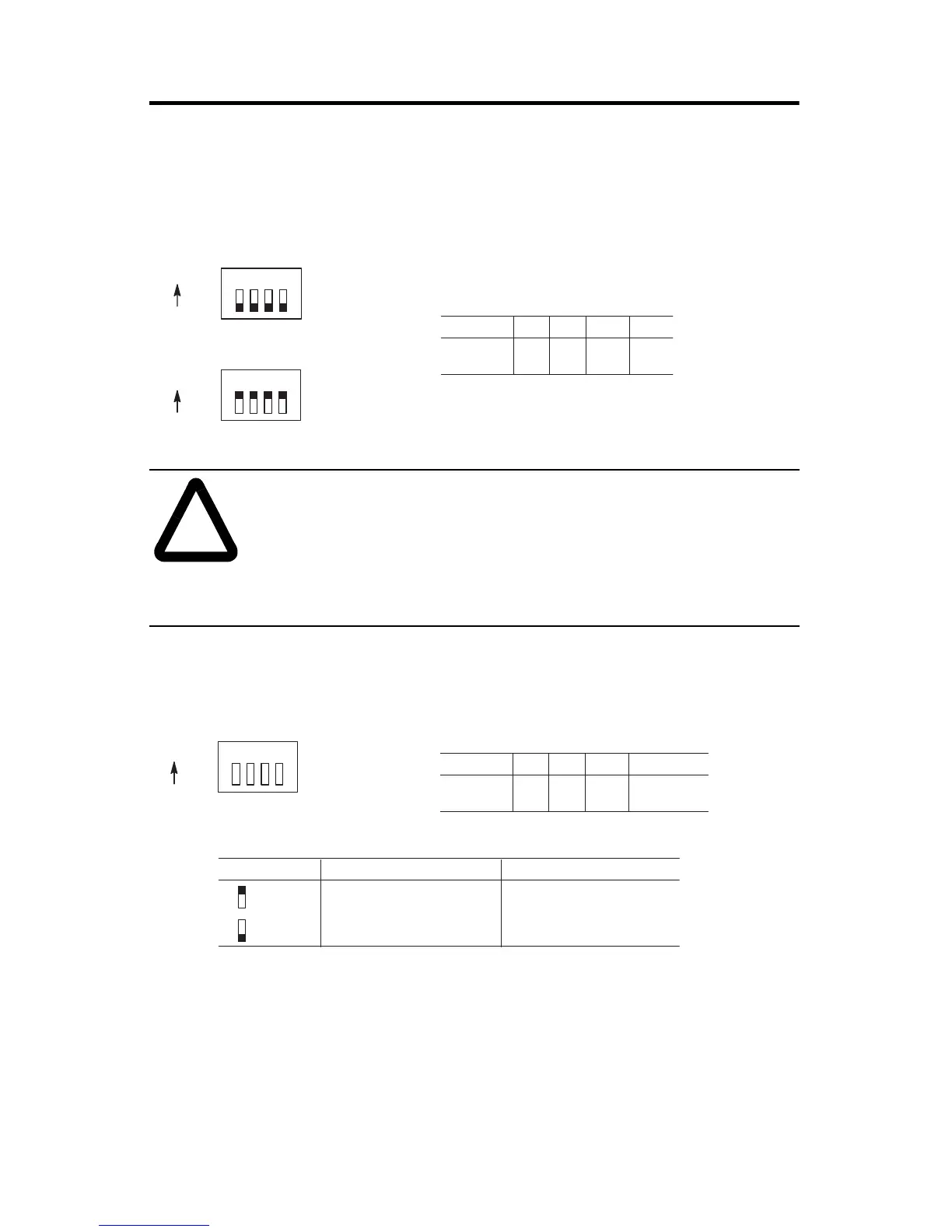

SW2 Settings
Select an output voltage range that coincides with your supply voltage. The
selections are 4.5 - 10V dc or 10 - 30V dc.
SW1 Settings
Select an input connection, single-ended or differential.
It is possible to configure different inputs in different modes. For example, input
A (CHA) can be configured as differential and input Z (CHZ) can be configured
as single-ended.
!
ATTENTION: All switches of SW2 must be ON or all switches
must be OFF. Permanent damage may result if some are ON and
some are OFF.
Operating in the 10-30V dc range with the switches set for the
4.5-10V dc range damages the module.
1234
1234
ON
OFF
ON
OFF
10-30V dc
4.5-10V dc
Switch
Output
1
0
2
1
3
2
4
3
123 4
ABZ
1234
ON
OFF
Switch
Channel not used
Dip switch SW1
ON
OFF
Position
Input Connection Input ON range
differential
single-ended
2.8-4.5V dc
3.1-5.5V dc
