92 Rockwell Automation Publication 1756-UM013B-EN-P - October 2019
Chapter 5 Configure and Replace Safety Modules
View the Module Tags
When you create a module, the Logix Designer application creates a set of tags
that you can view in the Tag Editor. Each configured feature on your module has
a distinct tag that is available for use in the controller program logic.
Complete the following steps to access the tags for a module.

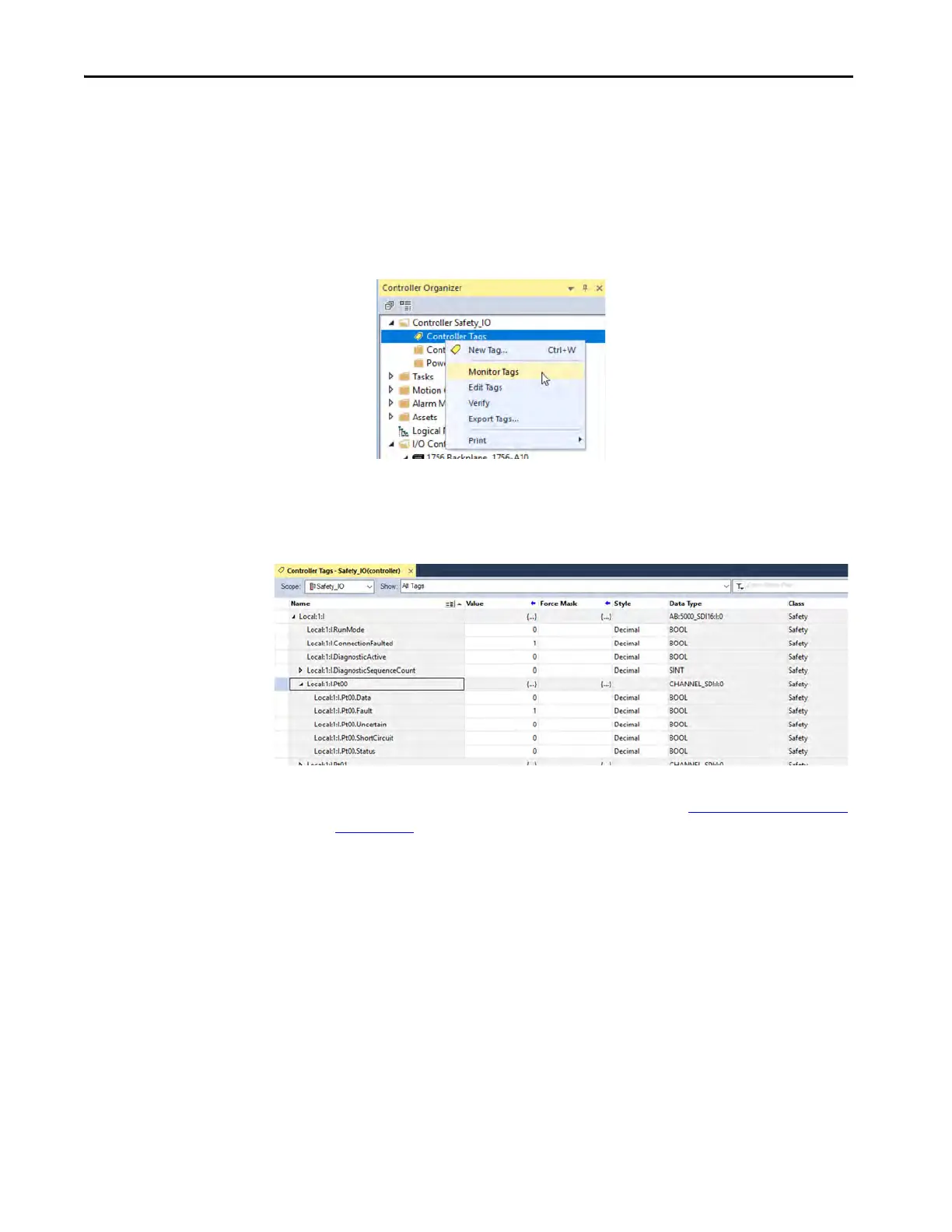

1. In the Controller Organizer, right-click Controller Tags and choose
Monitor Tags.
The Controller Tags dialog box appears with data.
2. To view the tags, click the triangle symbols.
For more information on module tags, see Appendix B,Module Tag Definitions
on page 113.
