178 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 7 Use I/O Modules with CompactLogix 5370 L1 Controllers

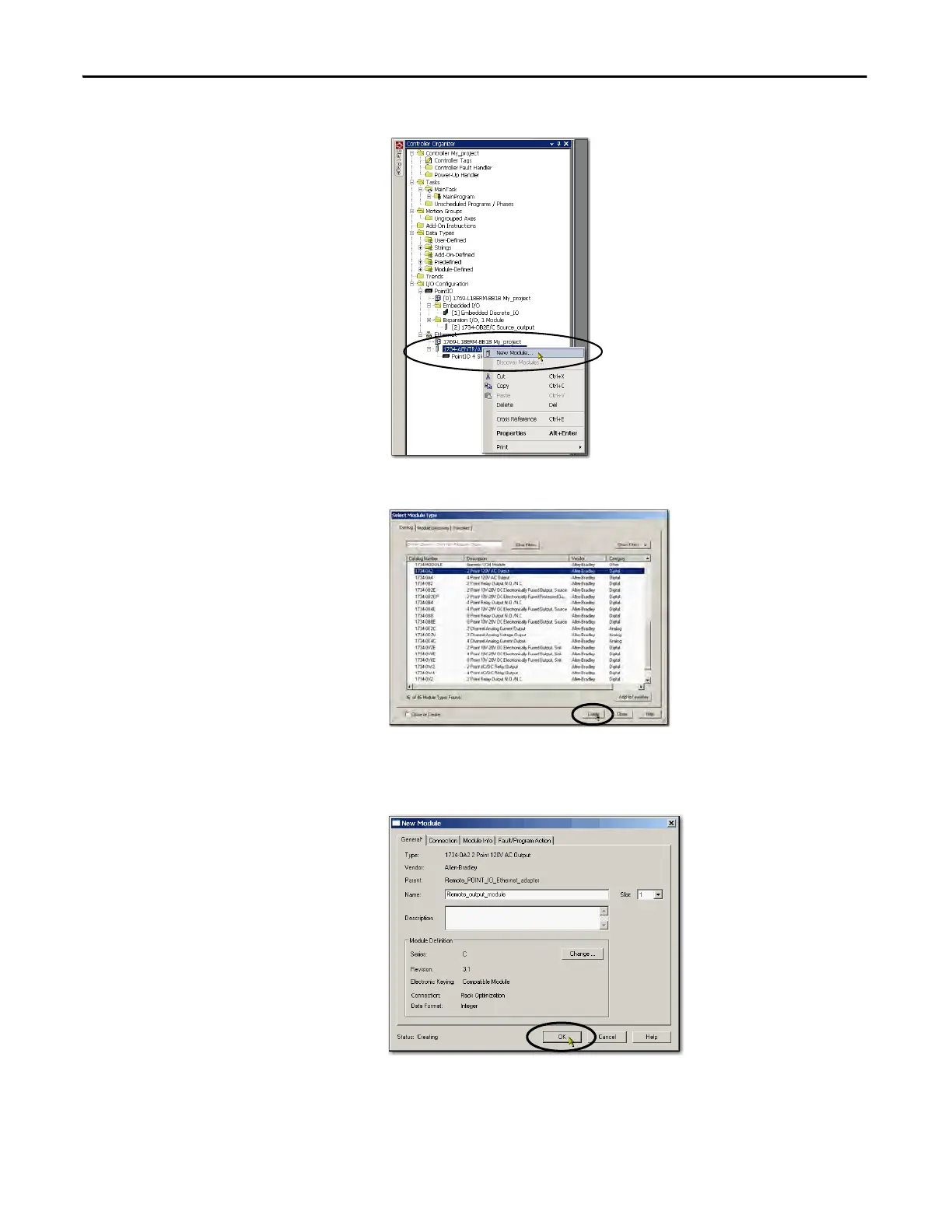

4. Right-click the new adapter and choose New Module.
5. Select the desired I/O module and click Create.
The New Module dialog box appears.
6. Configure the new I/O module as necessary and click OK.
7. Repeat these steps to add all desired distributed I/O modules to
the project.
