120 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 5 CompactLogix 5370 Controllers Overview
Example System
Configurations
CompactLogix 5370 controllers support the following networks:
• EtherNet/IP network - All CompactLogix 5370 controllers
• DeviceNet network - Only CompactLogix 5370 L2 and L3 controllers
EtherNet/IP Network
Figure 3 shows an example EtherNet/IP system configuration for a
1769-L18ERM-BB1B controller.

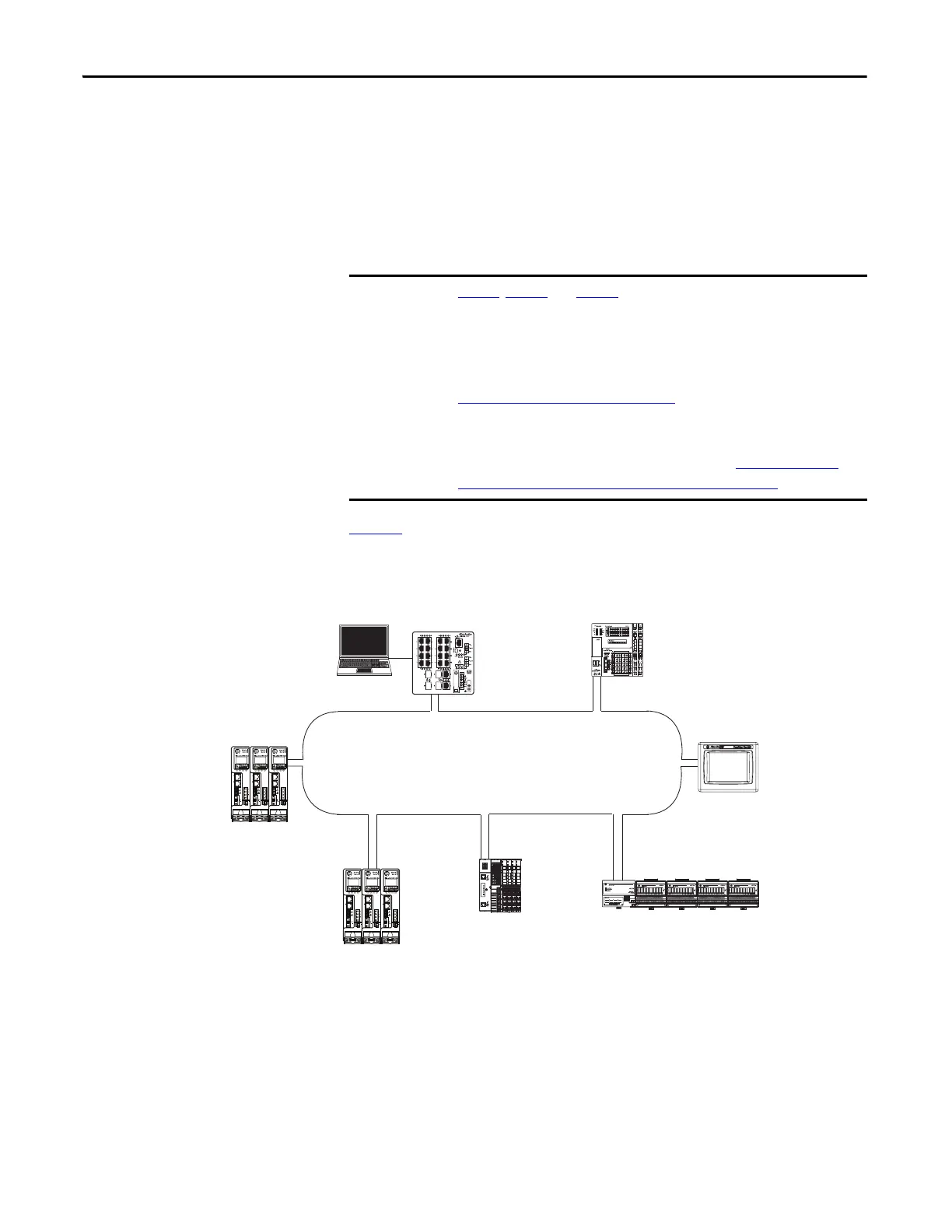

Figure 3 - Example 1769-L18ERM-BB1B Control System Configuration on an EtherNet/IP Network
Figure 3, Figure 4, and Figure 5 show CompactLogix 5370 controllers that are
used in a DLR network topology on an EtherNet/IP network. You can also use
CompactLogix 5370 controllers in linear or star EtherNet/IP network
topologies.
For more information on the other EtherNet/IP network topologies, see
Communicate over Networks
on page 123.
Some of the CompactLogix 5370 controllers support Integrated Motion over an
EtherNet/IP network, if desired. For more information on using Integrated
Motion over an EtherNet/IP network, see Chapter 11, Develop Integrated
Motion over an EtherNet/IP Network Application on page 285.
1769-L18ERM-BB1B
PanelView™ Plus 7
Stratix 5700™
Kinetix® 5500
1734-AENTR POINT I/O
1794-AENTR FLEX™ I/O
Kinetix 5500
To Next Page
