Use I/O Modules with CompactLogix 5370 L2 Controllers Chapter 8
Distributed I/O Modules over a DeviceNet Network
You can include distributed I/O modules over a DeviceNet network in your
CompactLogix 5370 L2 control system.
You must use the following to use distributed I/O modules over a DeviceNet
network in your CompactLogix 5370 L2 control system:
• Logix Designer application or the Studio 5000® environment - For more
information, see C
onfigure Distributed I/O Modules on an EtherNet/IP
Network on page 227.
• RSNetWorx™ for DeviceNet software - For more information, see
Configure Distributed I/O Modules on a DeviceNet Network
on
page 231.

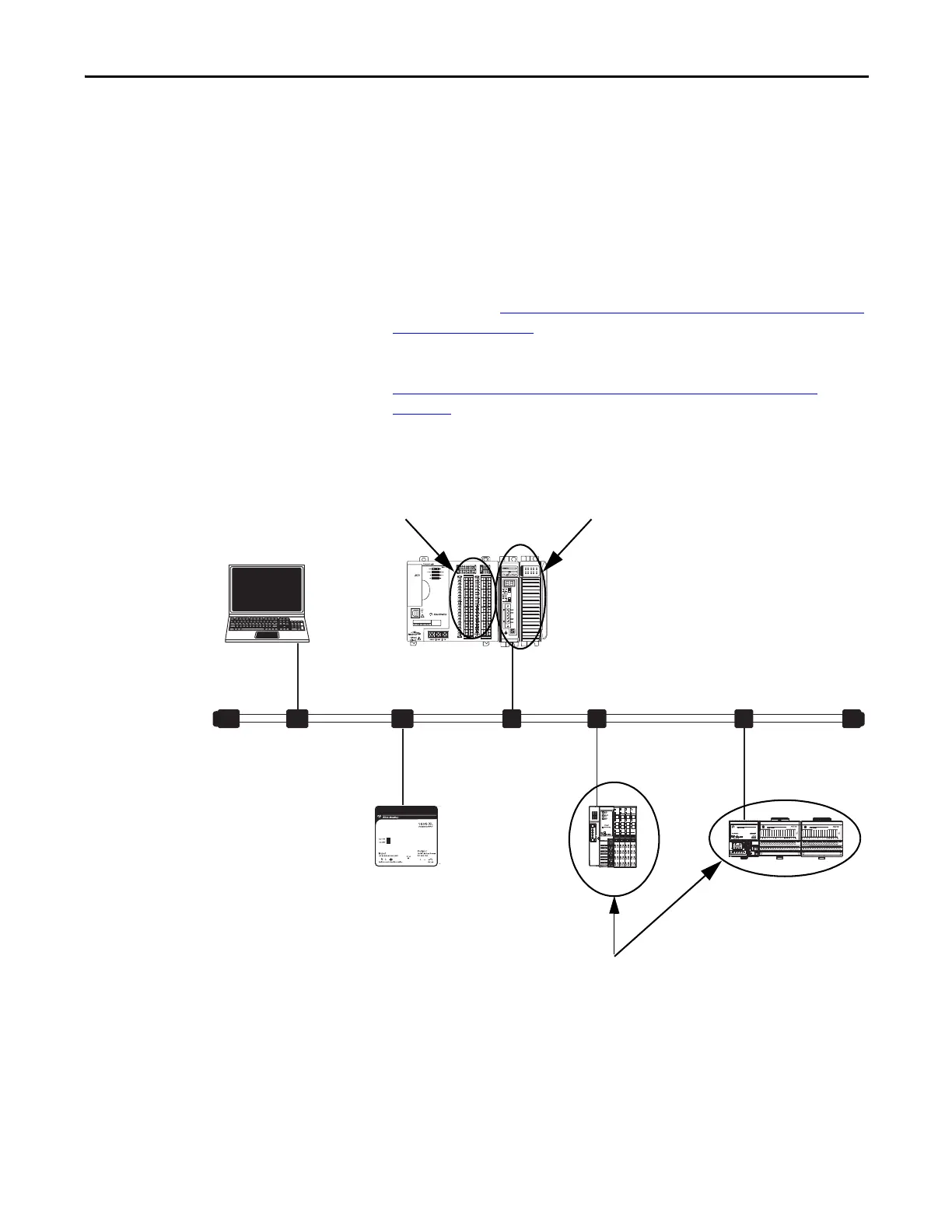

The following graphic shows a CompactLogix 5370 L2 control system on a
DeviceNet network that uses all three I/O module options.
Local Expansion ModulesEmbedded I/O Modules
Distributed I/O Modules
To Next Page
