Install the CompactLogix 5370 L1 Controller Chapter 1
Connect to the Controller via
a USB Cable
The controller has a USB port that uses a Type B receptacle. The port is USB
2.0-compatible and operates at 12 Mbps.
Use a USB cable to connect your computer to the USB port. With this
connection, you can upgrade firmware and download programs to the controller
directly from your computer.

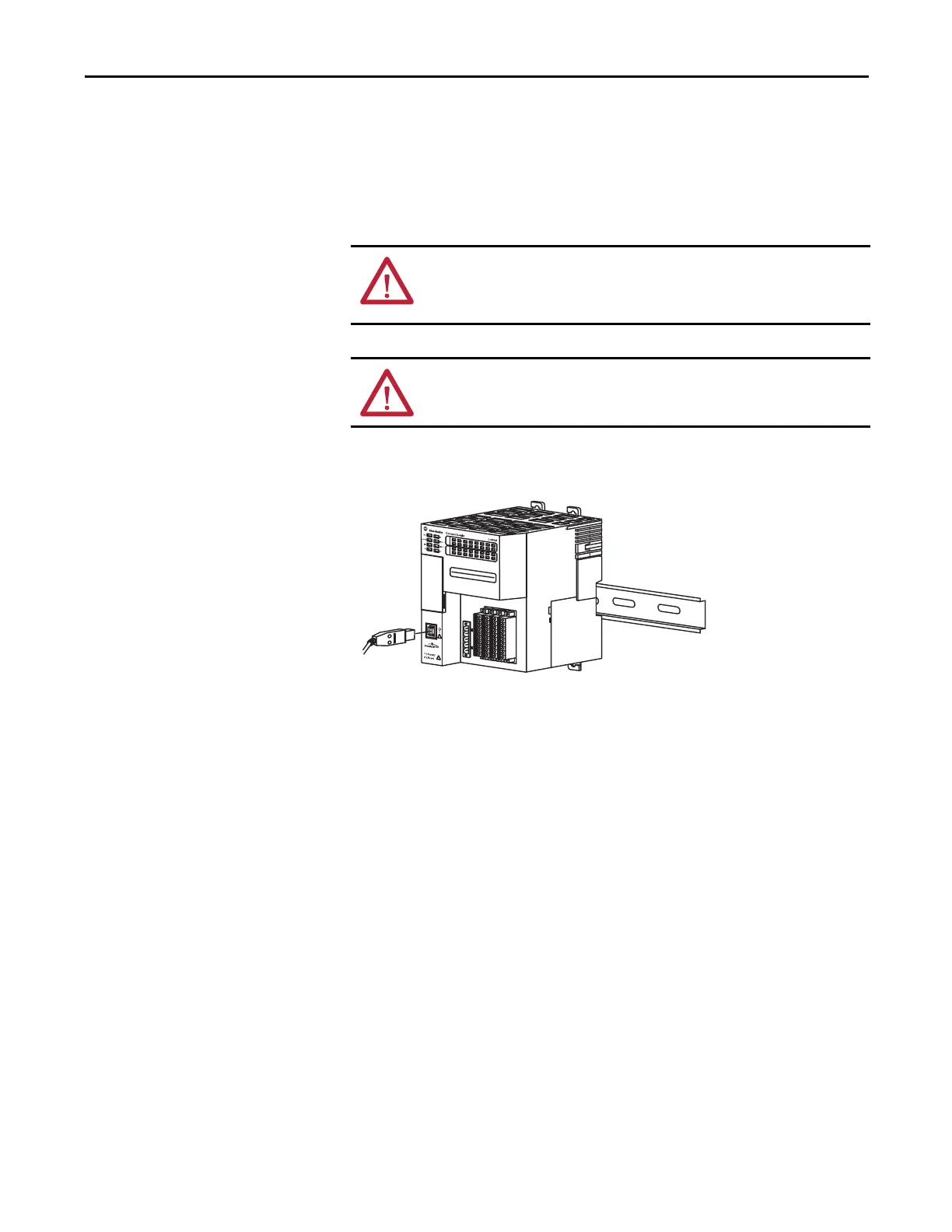

Plug the USB cable into the CompactLogix 5370 L1 controller.
ATTENTION: The USB port is intended only for temporary local
programming purposes and not intended for permanent connection.
The USB cable is not to exceed 3.0 m (9.84 ft) and must not contain hubs.
WARNING: Do not use the USB port in hazardous locations.
