Allen-Bradley 1769-L33ERM

Rockwell Automation Publication 1769-UM021G-EN-P - October 2015 23
Install the CompactLogix 5370 L1 Controller Chapter 1

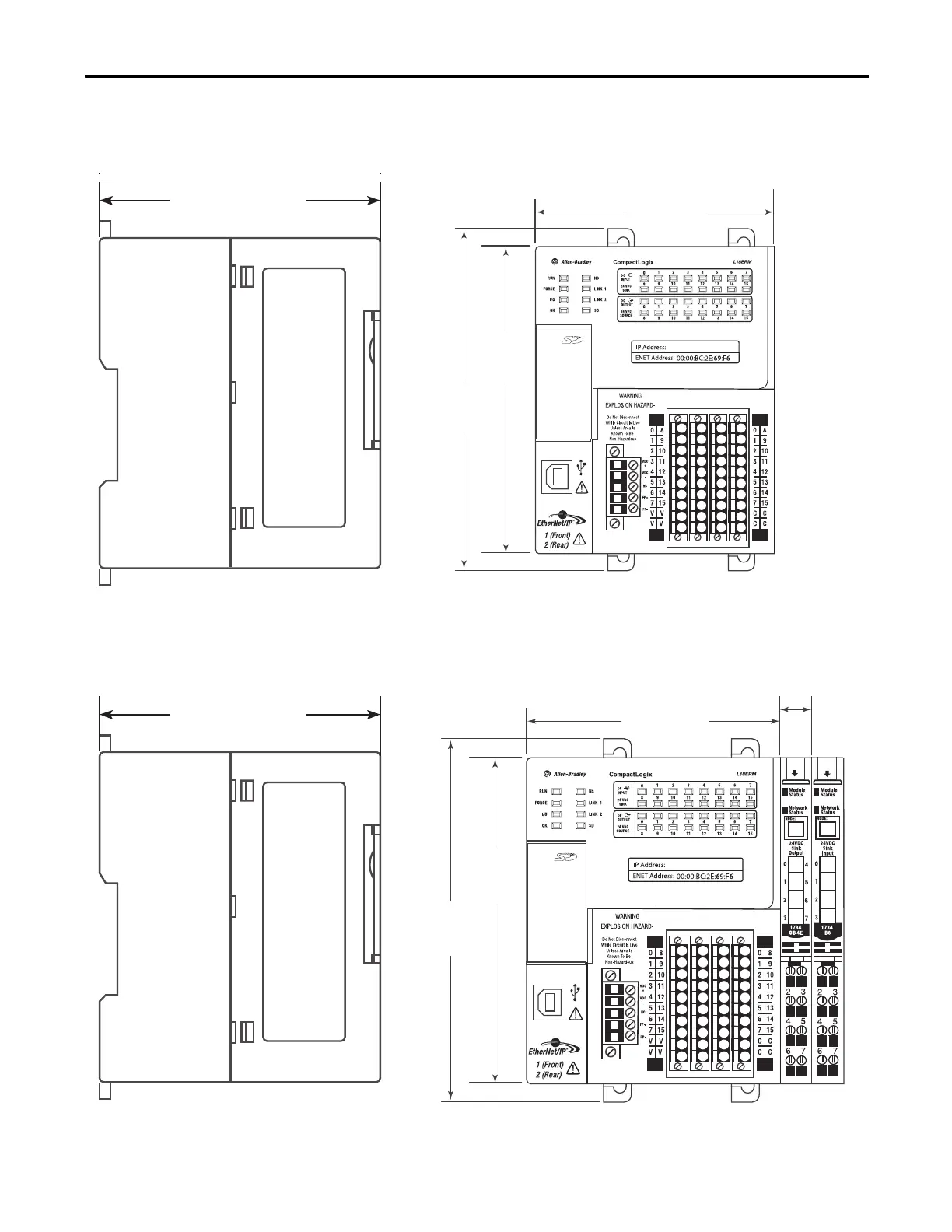

System Dimensions
This graphic shows the system dimensions.
This graphic shows the system dimensions with Expansion I/O modules
installed.
144.00 mm
(5.67 in.)
130.00 mm
(5.11 in.)
100.00 mm
(3.94 in.)
105 mm
(4.13 in.)
144.00 mm
(5.67 in.)
130.00 mm
(5.11 in.)
100.00 mm
(3.94 in.)
12.00 mm
(0.47 in.)
105 mm
(4.13 in.)
