230 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 8 Use I/O Modules with CompactLogix 5370 L2 Controllers

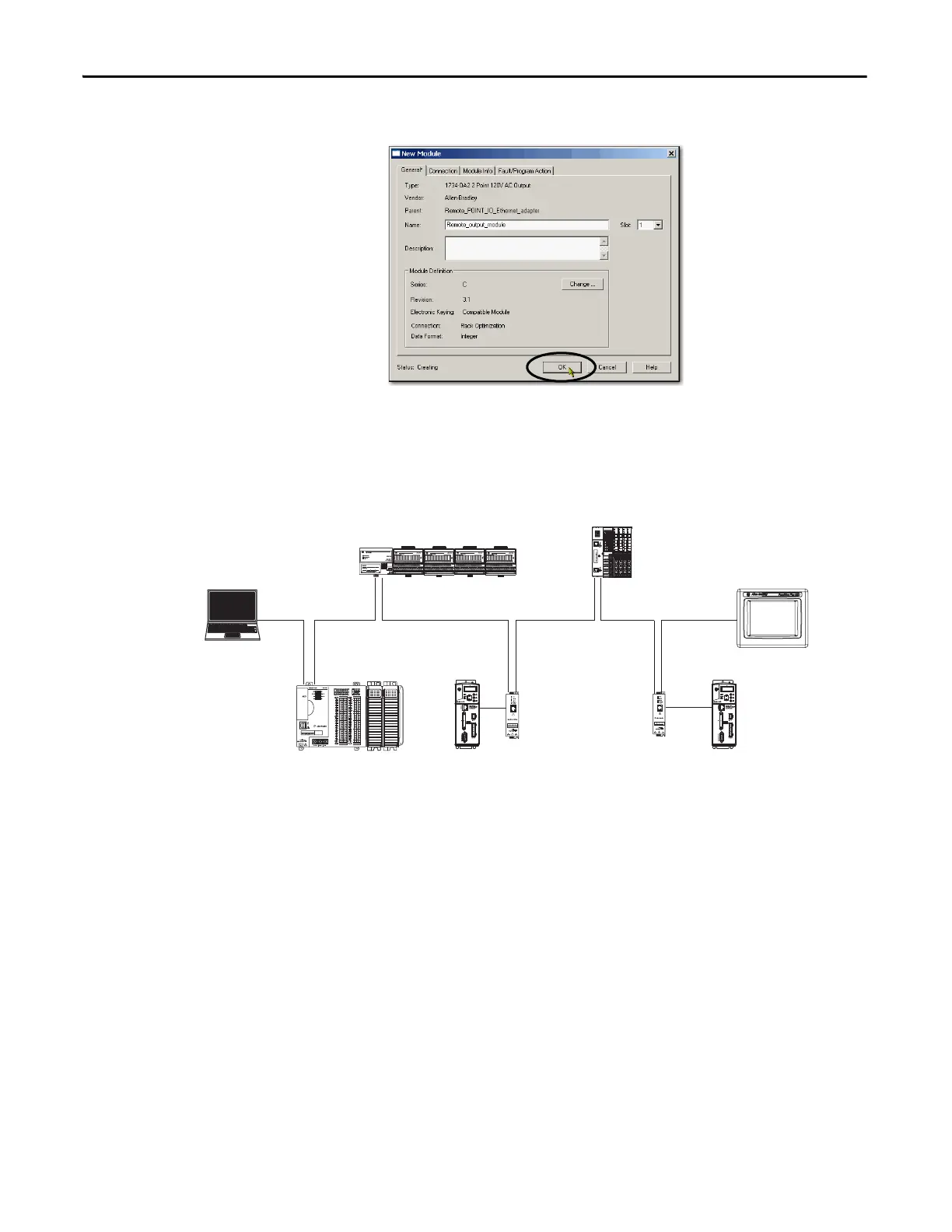

6. Configure the new I/O module as necessary and click OK.
7. Repeat these steps to add all desired distributed I/O modules.
The following graphic is an example of a 1769-L27ERM-QBFC1B control
system that uses distributed I/O modules over an EtherNet/IP network.
1769-L27ERM-QBFC1B
PanelView™ Plus
• Kinetix® 350
• 1783-ETAP EtherNet/IP Tap
1794-AENTR FLEX™ I/O
1734-AENTR POINT I/O
• Kinetix 350
• 1783-ETAP EtherNet/IP Tap
To Next Page
