Chapter 8 Use I/O Modules with CompactLogix 5370 L2 Controllers

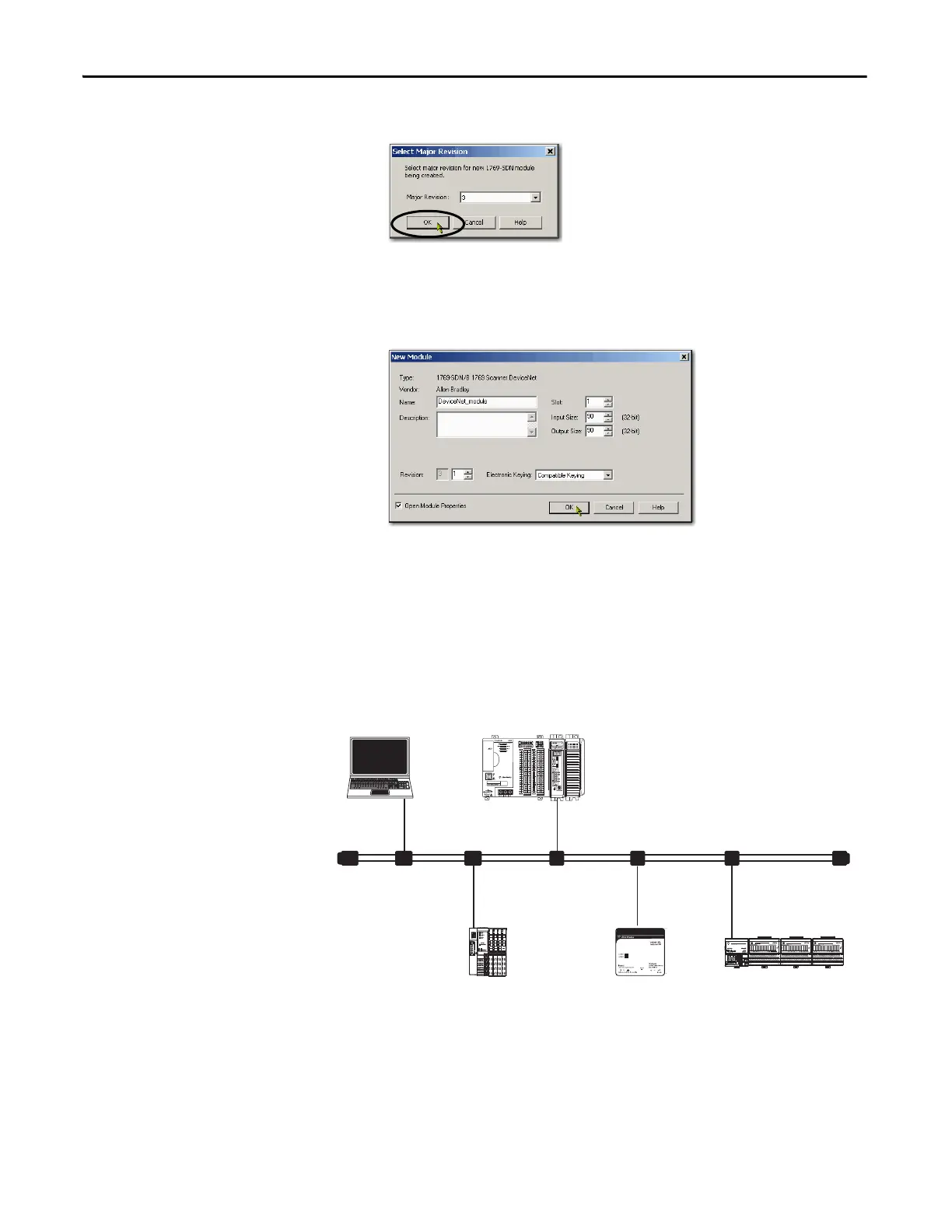

4. Choose a Major Revision and click OK.
The New Module dialog box appears.
5. Configure the new 1769-SDN scanner as necessary and click OK.
6. Use RSNetWorx for DeviceNet software to define the scan list in the
1769-SDN scanner to communicate data between the devices and the
controller through the scanner.
The following graphic is an example of a 1769-L27ERM-QBFC1B control
system that uses distributed I/O modules on a DeviceNet network.
• 1769-L27ERM-QBFC1B
• 1769-SDN
1794-ADN FLEX I/O
1734-ADN POINT I/O 1606-XLDNET
