Use I/O Modules with CompactLogix 5370 L3 Controllers Chapter 9
6. Configure the new I/O module as necessary and click OK.
7. Repeat these steps to add the desired distributed I/O modules.

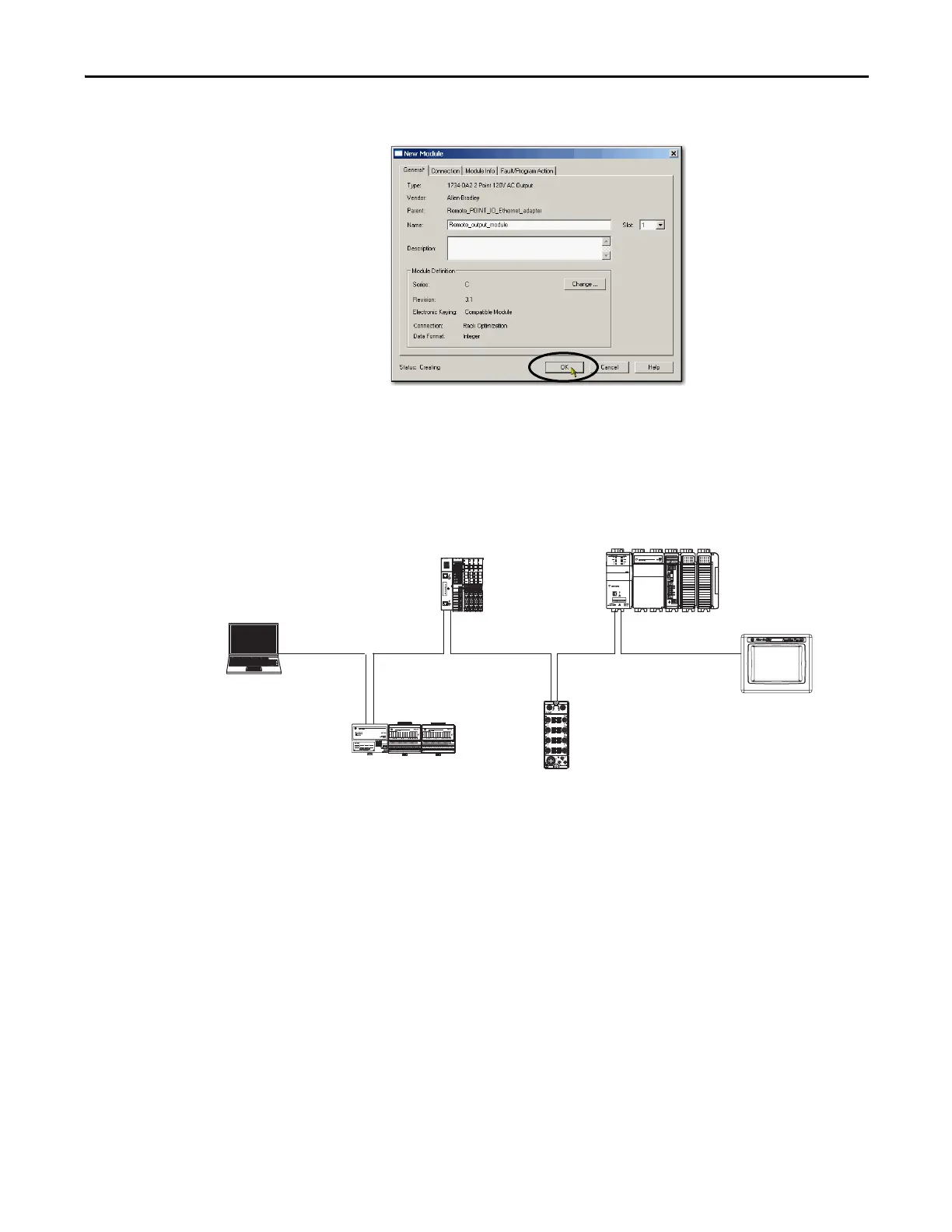

The following graphic is an example of a 1769-L33ERM control system that uses
distributed I/O modules over an EtherNet/IP network.
1769-L33ERM
1734-AENTR POINT I/O
PanelView™ Plus
1732E-IB16M12R
1794-AENTR FLEX™ I/O
