Appendix C Connect Power to the Series A L1 CompactLogix 5370 Controllers

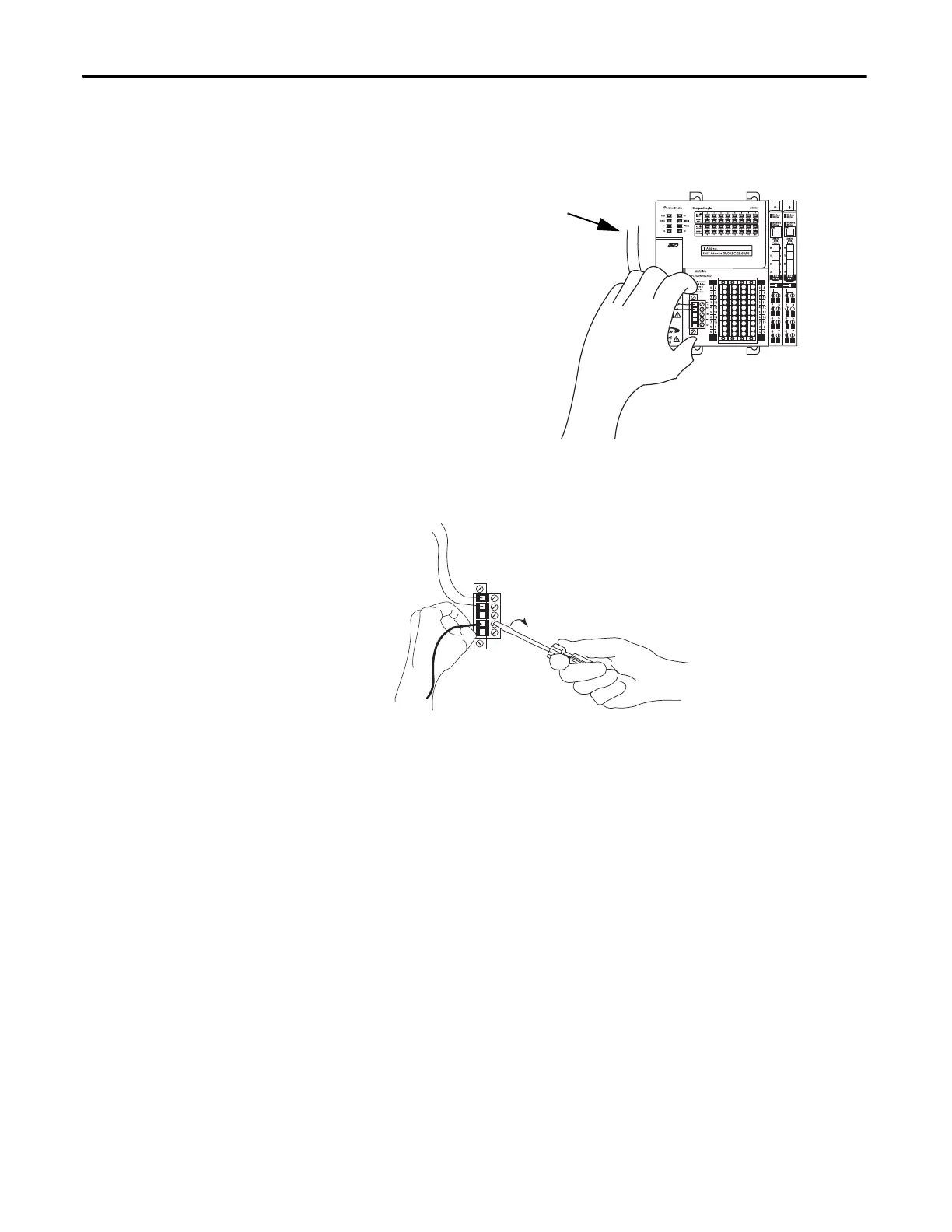

5. Pull the removable connector off of the CompactLogix 5370 L1
controller.
6. Connect the wire that is connected to the + terminal on the external 24V
DC power source to the FP+ terminal, that is, the fourth terminal from
the top, on the removable connector.
Wires connected between external 24V DC
power source and VDC+ and VDC-
terminals on the removable connector.
