Allen-Bradley 1769-L33ERM

68 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 3 Install the CompactLogix 5370 L3 Controller

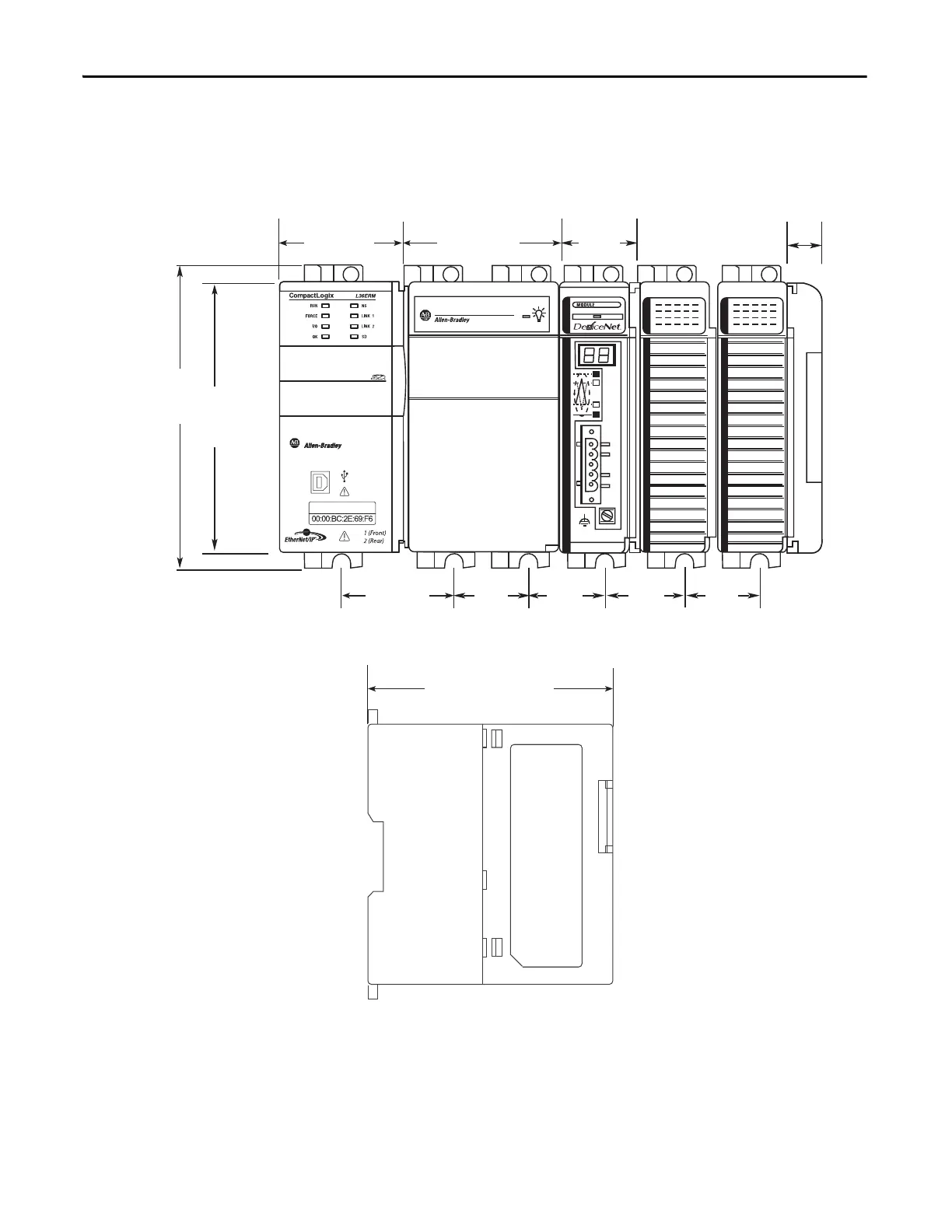

System Dimensions
This graphic shows the system dimensions.
132 mm
(5.20 in.)
118 mm
(4.65 in.)
55 mm
(2.17 in.)
70 mm
(2.76 in.)
35 mm
(1.38 in.)
35 mm
(1.38 in.)
35 mm
(1.38 in.)
35 mm
(1.38 in.)
35 mm
(1.38 in.)
52.5 mm
(2.07 in.)
105 mm
(4.13 in.)
18 mm
(0.71 in.)
