Allen-Bradley 1769-SDN User Manual

Publication 1769-UM009B-EN-P - May 2002
7-14 Using the 1769-SDN Scanner Module with MicroLogix Controllers
CIP Generic
CIP stands for “Control & Information Protocol”. CIP is a newer and
more versatile protocol than PCCC. It is an open protocol that is
supported by newer Allen-Bradley controllers and third-party
products.
CIP messaging is the native messaging format for DeviceNet. All
DeviceNet devices are compliant with CIP messaging. The MicroLogix
1500 1764-LRP processor (Series C) has an enhanced message
instruction that provides simple, easy to use CIP messaging.

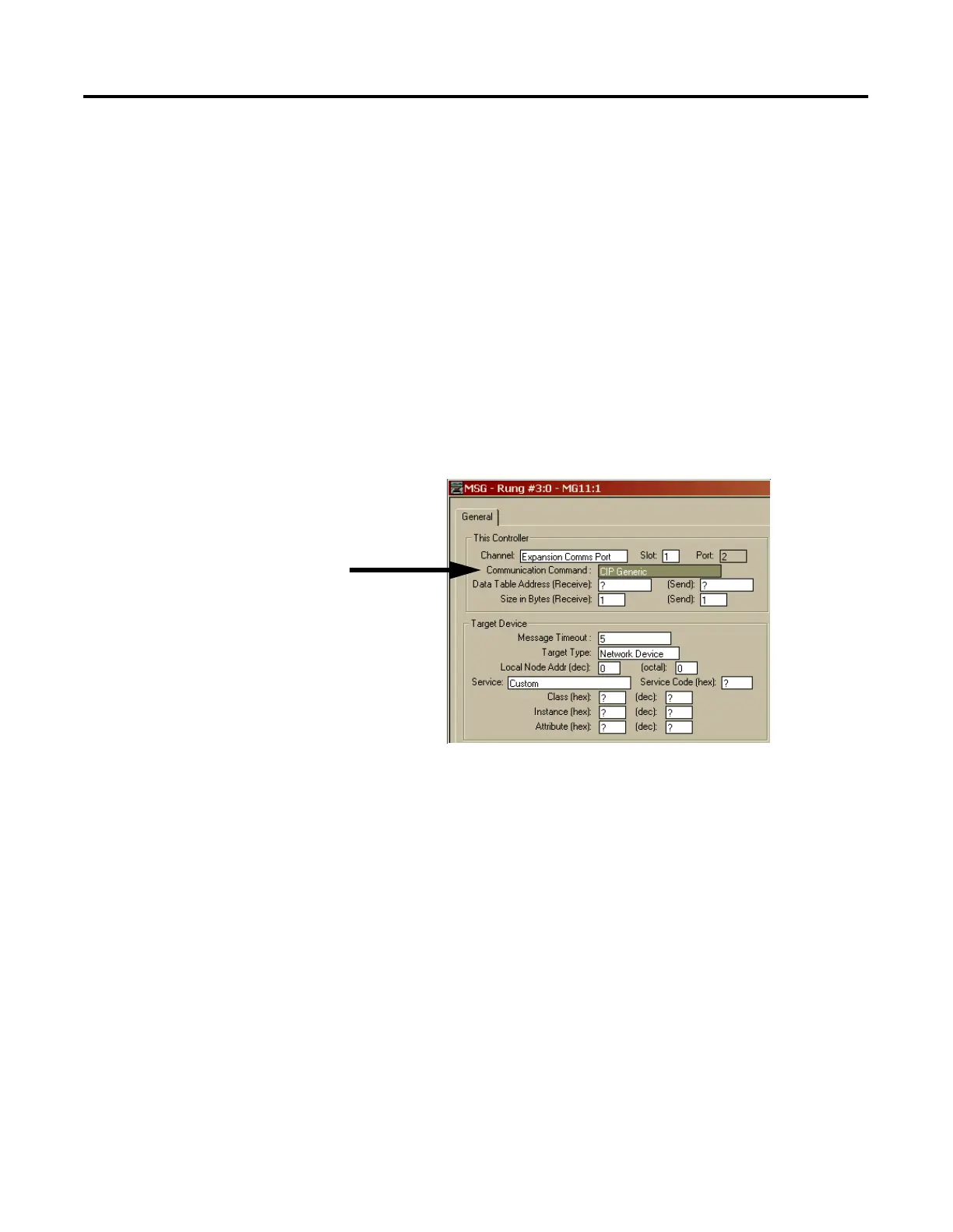

Selecting CIP Generic configures the message instruction to
communicate with DeviceNet devices that do not support PCCC
messaging. When CIP Generic is chosen, you will notice that a
number of message parameters change and many new ones become
available depending upon the service selected.

Allen-Bradley 1769-SDN Specifications

General

Manufacturer	Allen-Bradley
Product Type	DeviceNet Scanner
Series	1769
Communication Protocol	DeviceNet
Input Voltage	24V DC
Current Consumption	100 mA
Number of DeviceNet Nodes	63
Shock	30 g
Power Consumption	2.4 W
DeviceNet Baud Rates	125 kbps, 250 kbps, 500 kbps
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Relative Humidity	5% to 95% (non-condensing)
Weight	0.2 kg
DeviceNet Connector	5-pin removable terminal block
Compatibility	CompactLogix 1769 I/O platform
