Overview 1-3
What Your Scanner Does

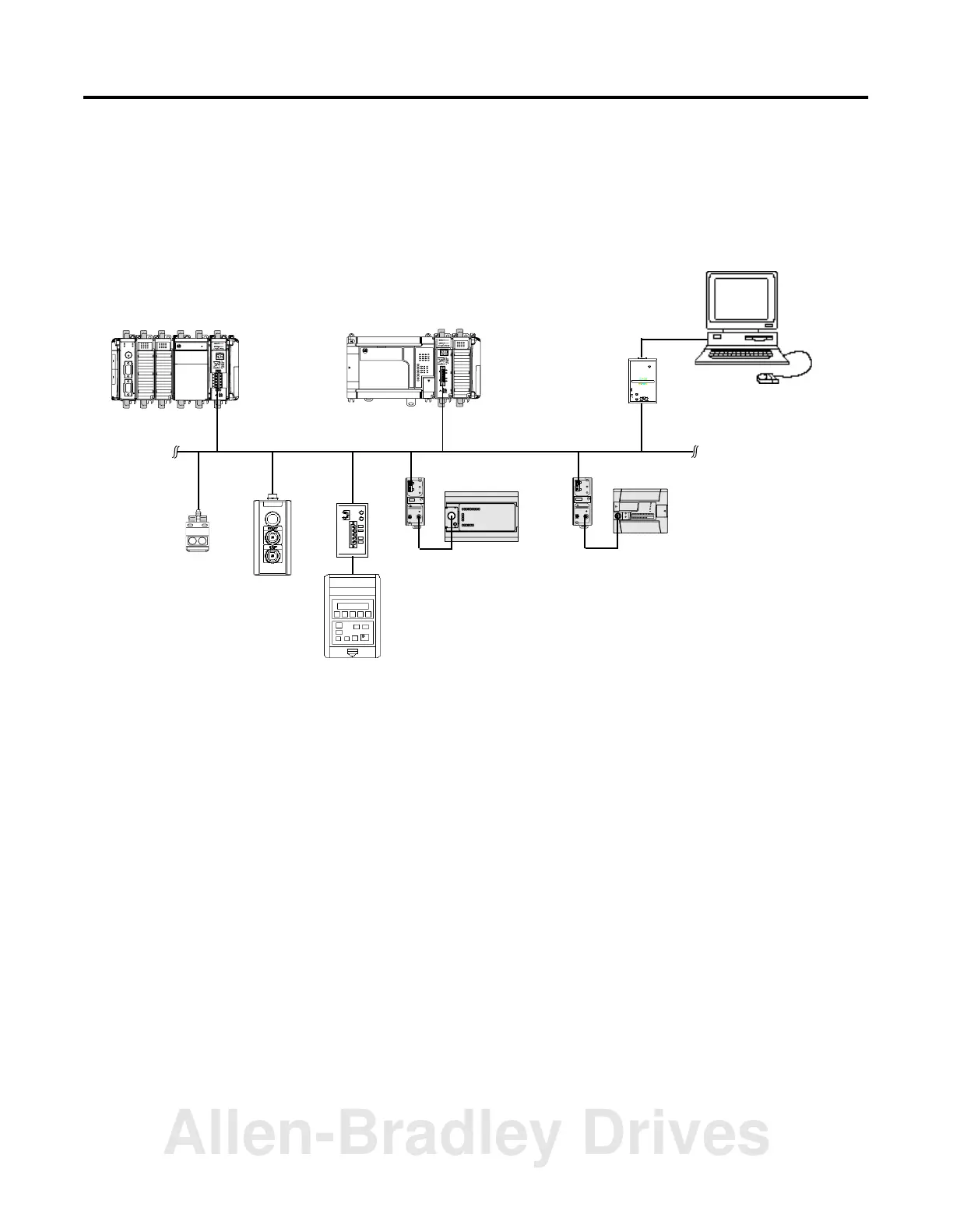

In a typical configuration, the scanner acts as an interface between
DeviceNet devices and the programmable controller.
The scanner communicates with DeviceNet devices over the network
to:
• read inputs from slave devices
• write outputs to slave devices
• communicate with peer devices (messaging)
• upload/download programs to a 1764-LRP based MicroLogix
1500 controller across a DeviceNet network
DANGER
DANGER
PC with RSNetWorx
for DeviceNet software
Series 9000
Photoeye
RediSTATION
DeviceNet Network
1770-KFD PC
Communication
Module
CompactLogix Controller with
1769-SDN Scanner Module
MicroLogix 1500 Controller with
1769-SDN Scanner Module
MicroLogix 1000 Controller
Connected via 1761-NET-DNI
MicroLogix 1200 Controller
Connected via 1761-NET-DNI
1305 Drive Connected via 1203-GU6
Enhanced DeviceNet Communications Module
