Publication 1769-UM009B-EN-P - May 2002
Configuring the DeviceNet Network 4-5

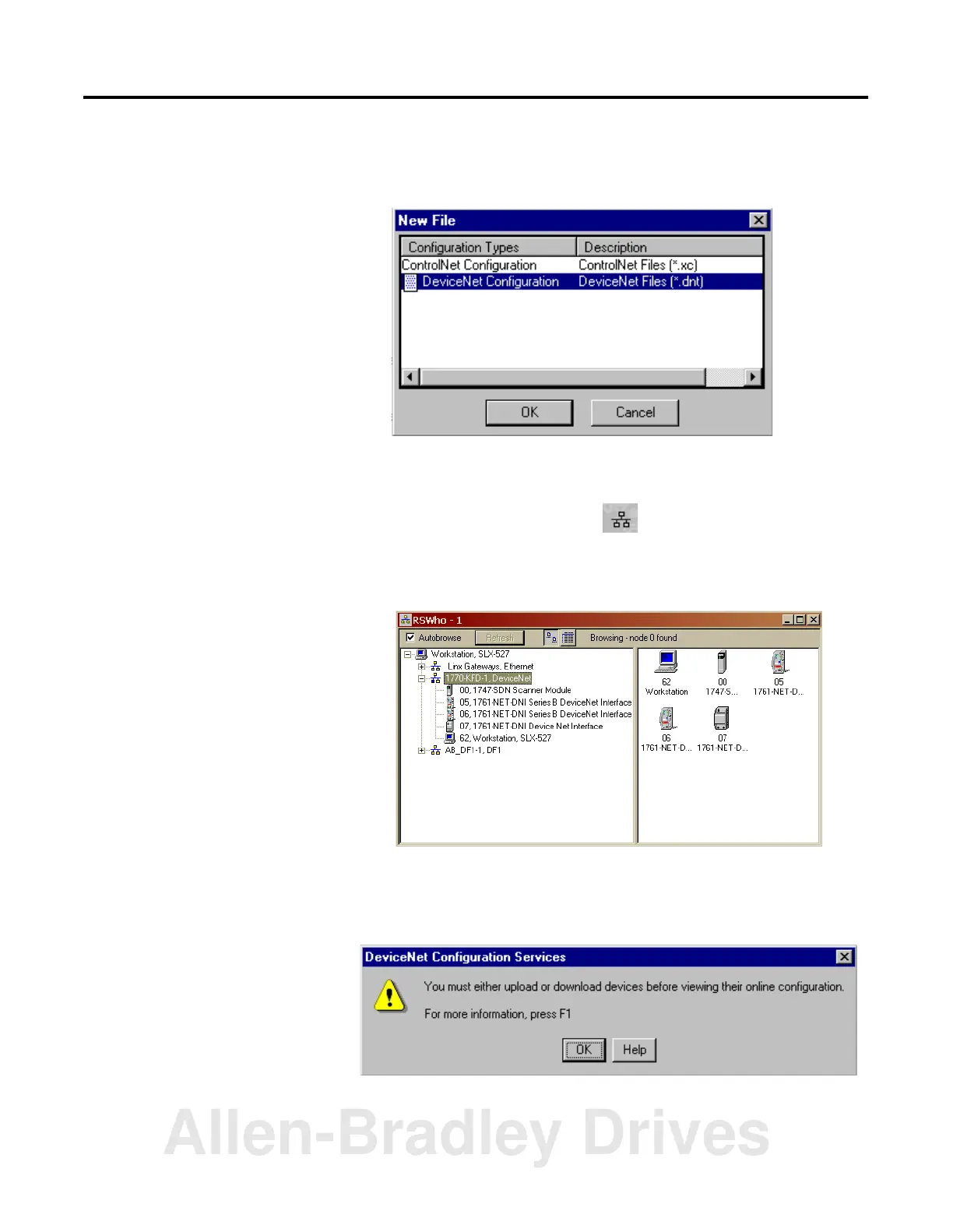

2. From the File menu, select New.
If you have ControlNet configured on your system you may see
the following window. Otherwise, proceed to step 4.
3. Highlight DeviceNet Configuration and click on OK.
4. Click on the Online button on the toolbar.
A list of the available networks will appear. (Your list may
appear different from that shown below, depending upon the
drivers you have configured on your system.)
5. Select your DeviceNet driver and click on OK.
You will be prompted to upload or download devices before
going online.
