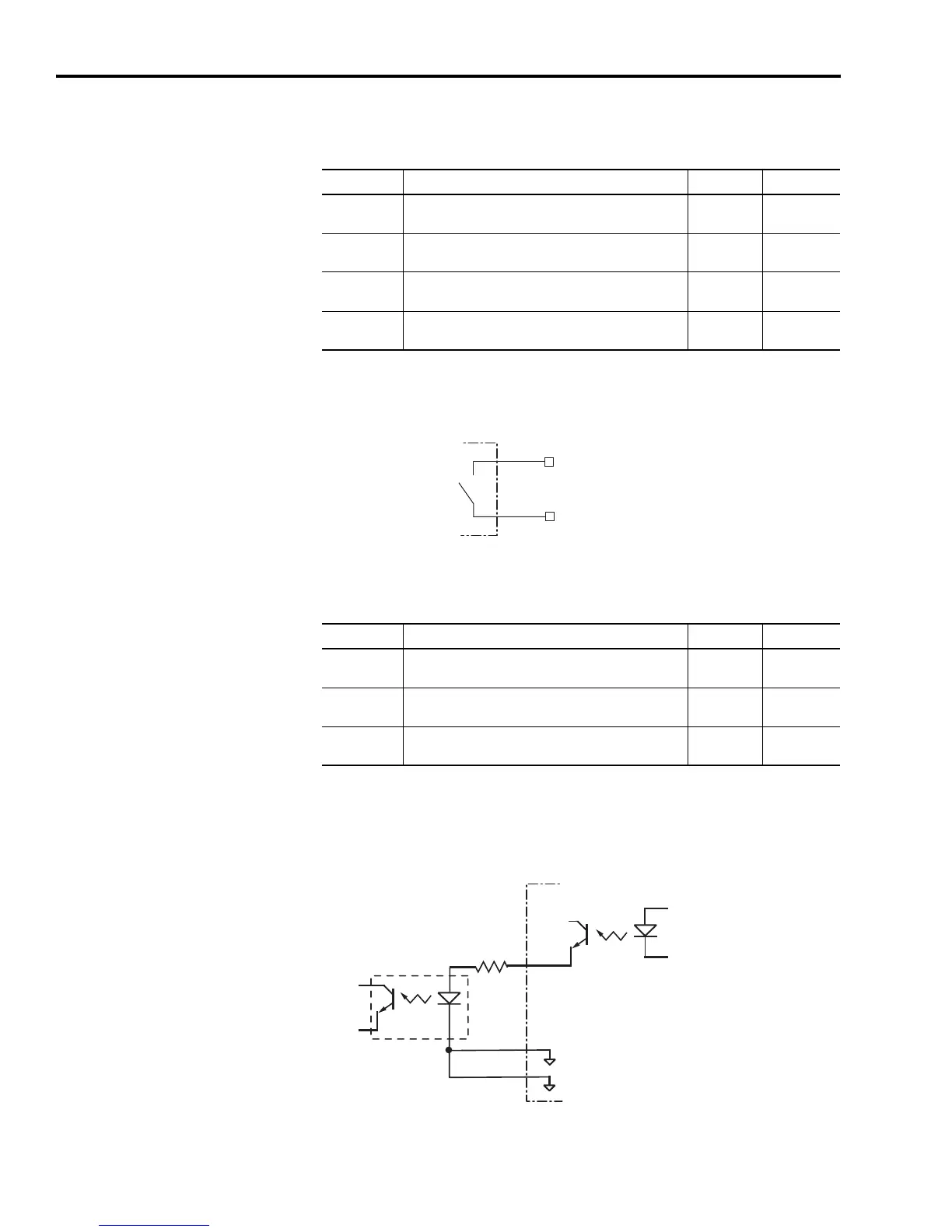

Publication 2098-IN003E-EN-P — April 2004
2-34 Ultra3000 Connector Data
The following table provides a description of the digital output
specifications.
Figure 2.26
Relay Output Hardware Configuration
The following table provides a description of the relay output
specifications.
Drive Output Interface Examples
Figure 2.27
Drive Output Connected to an Opto-Isolator
Parameter Description Minimum Maximum
ON State
Current
Current flow when the output transistor is ON 50 mA
OFF State
Current
Current flow when the output transistor is OFF 0.1 mA
ON State
Voltage
Voltage across the output transistor when ON 1.5V
OFF State
Voltage
Voltage across the output transistor when OFF 50V
CN1-43
Relay +
CN1-44
Relay -
Normally
Open
Relay
Ultra3000 Drive
Parameter Description Minimum Maximum
ON State
Current
Current flow when the relay is closed 1A
ON State
Resistance
Contact resistance when the relay is closed 1Ω
OFF State
Voltage
Voltage across the contacts when the relay is open 30V
1k Ω
IOCOM
CN1-27
CN1-28
IOPWR
IOCOM
Ultra3000 Drive
