Publication 2098-IN003E-EN-P — April 2004
Ultra3000 Connector Data 2-35

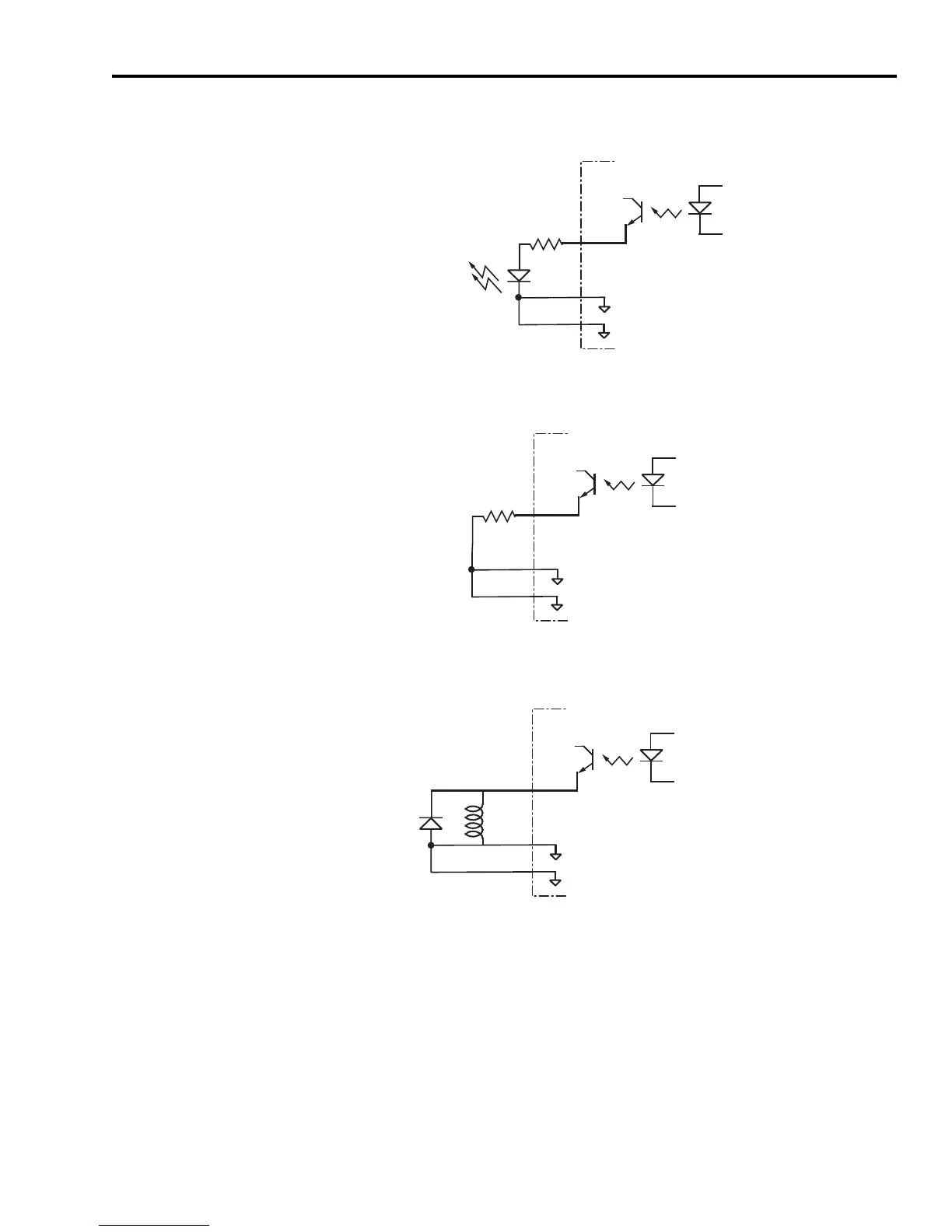

Figure 2.28
Drive Output Connected to an LED Indicator
Figure 2.29
Drive Output Connected to a Resistive Load
Figure 2.30
Drive Output Connected to a Switch/Relay
1k Ω
IOCOM
CN1-27
CN1-28
IOPWR
IOCOM
Ultra3000 Drive
1k Ω
IOCOM
CN1-27
CN1-28
IOPWR
IOCOM
Ultra3000 Drive
IOCOM
CN1-27
CN1-28
IOPWR
IOCOM
Ultra3000 Drive
