Rockwell Automation Publication 22C-UM001J-EN-E - January 2017 41
Installation/Wiring Chapter 1

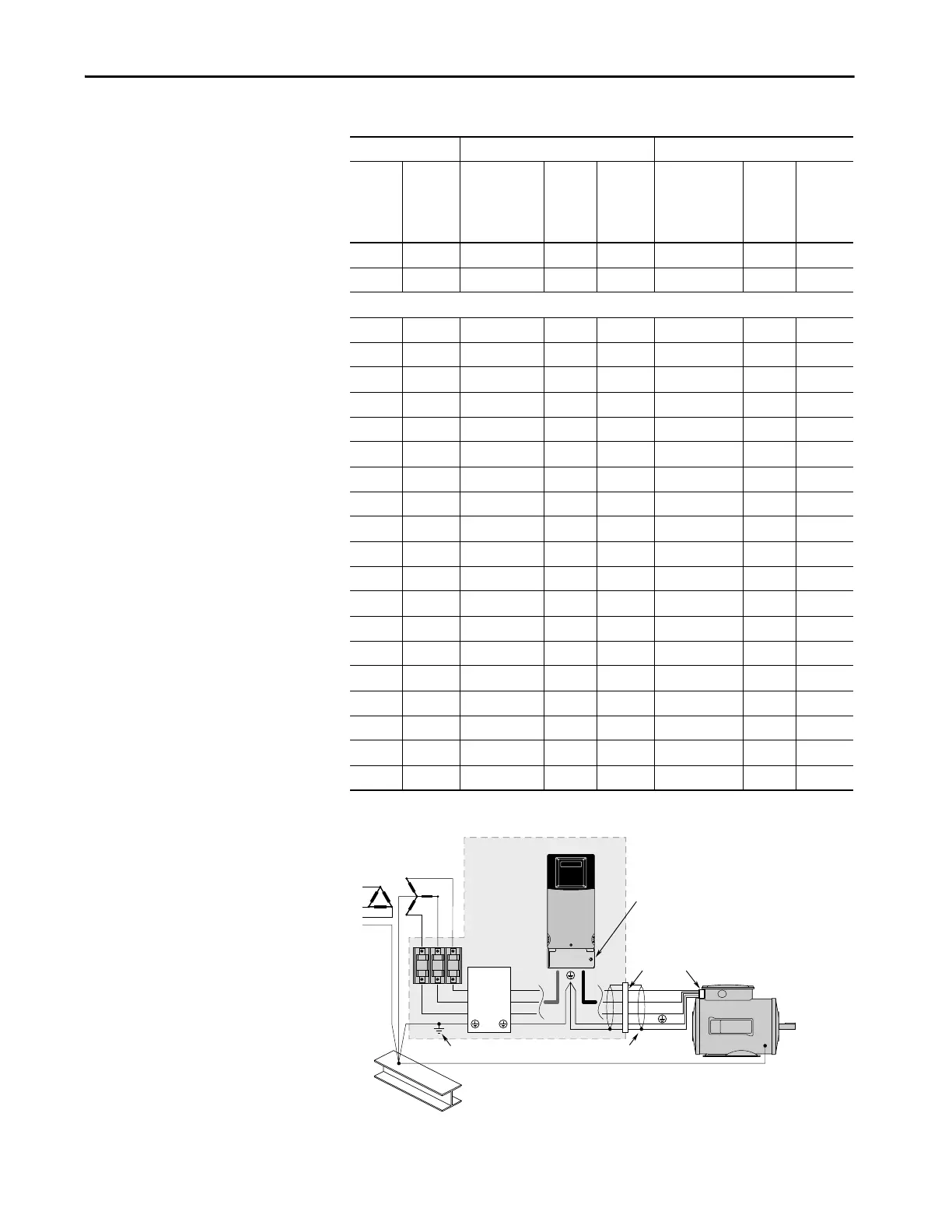

Figure 14 - Connections and Grounding
(1) Shielded Enclosure required to meet EN61800-3 First Environment Restricted for 200-240V AC 11-22 kW (15-30 HP) PowerFlex
400 drives and to meet EN61800-3 First Environment Unrestricted for all PowerFlex 400 ratings.
30 (40) B120A103 22-RFD150 150 No Deltron MIF Series 50 Required
37 (50) B145A103 22-RFD180 150 No Deltron MIF Series 75 Required
380...480 Volts
2.2 (3.0) D6P0N103 22-RF018-CS 10 No 22-RF018-CS 1 Required
4.0 (5.0) D010N103 22-RF018-CS 10 No 22-RF018-CS 1 Required
5.5 (7.5) D012N103 22-RF018-CS 10 No 22-RF018-CS 1 Required
7.5 (10) D017N103 22-RF018-CS 10 No 22-RF018-CS 1 Required
11 (15) D022N103 22-RF026-CS 10 No 22-RF026-CS 1 Required
15 (20) D030N103 22-RFD036 100 No Deltron MIF Series 5 Required
18.5 (25) D038A103 22-RFD050 150 No Deltron MIF Series 5 Required
22 (30) D045A103 22-RFD050 150 No Deltron MIF Series 5 Required
30 (40) D060A103 22-RFD070 50 No Deltron MIF Series 5 Required
37 (50) D072A103 22-RFD100 50 No Deltron MIF Series 5 Required
45 (60) D088A103 22-RFD100 50 No Deltron MIF Series 5 Required
55 (75) D105A103 22-RFD150 150 No Deltron MIF Series 5 Required
75 (100) D142A103 22-RFD180 50 No Deltron MIF Series 5 Required
90 (125) D170A103 22-RFD208 50 No 22-RFD208 5 Required
110 (150) D208A103 22-RFD208 50 No 22-RFD208 5 Required
132 (200) D260A103 22-RFD323 50 Required 22-RFD323 5 Required
160 (250) D310A103 22-RFD480 50 Required 22-RFD480 5 Required
200 (300) D370A103 22-RFD480 50 Required 22-RFD480 5 Required
250 (350) D460A103 22-RFD480 50 Required 22-RFD480 5 Required
Table 12 - PowerFlex 400 – EN61800-3 Compliance
PowerFlex 400 Drive First Environment Restricted First Environment Unrestricted
kW
(HP)
Cat No.
22C-...
Required Filter
(Allen-Bradley)
Restrict
Motor
Cable to
(Meters)
Install
Drive and
Filter in
Shielded
Enclosure
Required Filter Restrict
Motor
Cable to
(Meters)
Install
Drive and
Filter in
Shielded
Enclosure
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
EMI Fittings and Metal Conduit
IP 30/NEMA 1/UL Type 1
Option Kit (Frame C Drives Only)
Shielded Enclosure
(1)
Building Structure Steel
Enclosure Ground Connection
EMI Filter
L1'
L2'
L3'
L1
L2
L3
Shielded Motor Cable
