Rockwell Automation Publication 5069-IN003E-EN-P - October 2018 11
Compact 5000 I/O EtherNet/IP Adapters

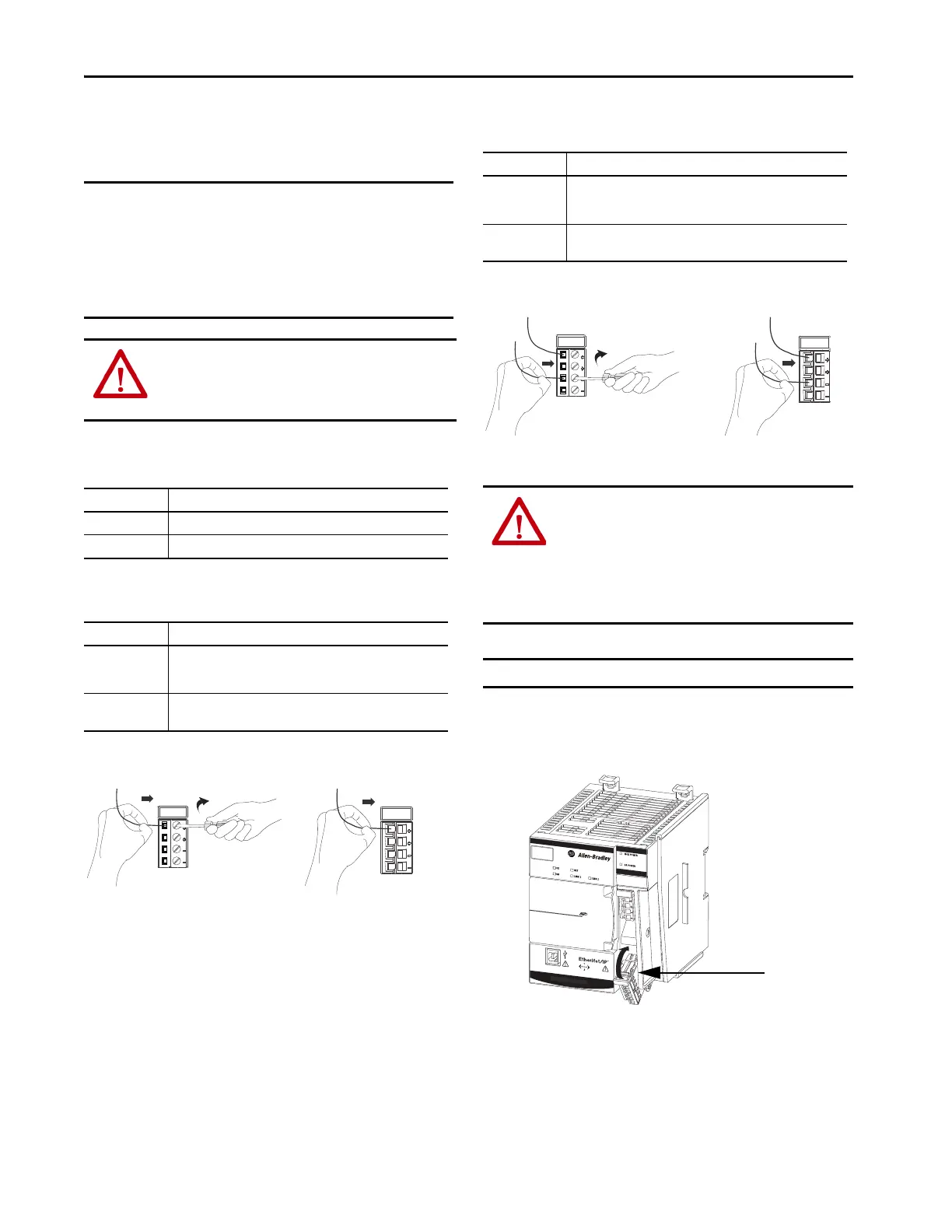

Connect MOD Power to the 5069-AEN2TR Adapter
Before you connect an external power source to the MOD power RTB,
make sure that the MOD power source is properly sized.
1. Verify that the external power supply is not powered.
2. Strip insulation from the wires that you connect to the RTB.
3. Connect the 24V DC(+) wire from the external power supply
to the first + terminal.
4. Connect the 24V DC(—) wire from the external power supply
to the first — terminal.
Install the SA Power RTB
1. Hook the bottom of the SA power RTB on the adapter.
2. Push the RTB against the adapter until the RTB clicks
into place.
3. Push the RTB handle against the RTB until you hear another
click.
IMPORTANT Your application can require a power control device, for
example, a switch, between the external 24V DC power
source and the adapter to control when the module is
powered. If so, you must install the power control device at
the VDC+ terminal on the removable terminal block.
If you install the power control device at the VDC-terminal,
the adapter can fail to power up or power down properly.
WARNING: If you connect or disconnect wiring while the field-
side power is on, an electric arc can occur. This arc could cause an
explosion in hazardous location installations. Be sure that power is
removed or the area is nonhazardous before proceeding.
RTB Type Action
Screw Strip12 mm (0.47 in.) of insulation from the wires.
Spring Strip 10 mm (0.39 in.) of insulation from the wires.
RTB Type Action
Screw
1. Insert the wire into the terminal.
2. Turn the screwdriver to close the terminal on the wire. Torque the
screw to 0.4 N•m (3.5 lb•in).
Spring
Push the wire into the terminal.
If the wire is too thin, crimp a wire ferrule on the wire and insert it.
5069-RTB4-SPRING RTB
5069-RTB4-SCREW RTB
RTB Type Action
Screw
1. Insert the wire into the terminal.
2. Turn the screwdriver to close the terminal on the wire. Torque the
screw to 0.4 N•m (3.5 lb•in).
Spring
Push the wire into the terminal.
If the wire is too thin, crimp a wire ferrule on the wire and insert it.
WARNING: If you connect or disconnect the Removable Terminal
Block (RTB) with power applied, an Electric Arc can occur. This arc
could cause an explosion in hazardous location installations.
The Removable Terminal Block (RTB) does not support "Removal
and Insertion Under Power" (RIUP) capability. Do not connect or
disconnect the Removable Terminal Block (RTB) while power is
applied. Be sure that power is removed before proceeding.
IMPORTANT The SA power RTB is used only on the 5069-AEN2TR adapter.
5069-RTB4-SPRING RTB
5069-RTB4-SCREW RTB
ADAPTER
COMPACT 5000
AENTR
Compact 5000™ I/O
5069-AEN2TR
MOD Power
SA Power
To Next Page
