Rockwell Automation Publication 5069-IN003E-EN-P - October 2018 13
Compact 5000 I/O EtherNet/IP Adapters
3. Connect the L1/AC(+) wire from the external SA AC power
source to the first + terminal.
4. Connect the L2/N/AC(—) wire from the external SA AC
power source to the first — terminal.
5. Connect a wire from an earth ground location to the
first terminal on the RTB. The earth ground location can
be the external SA power supply, the DIN rail, or other earth
ground location.
Connect Power to the 5069-AENTR or 5069-AENTRK
Adapter
Before you connect MOD power or SA power to a 5069-AENTR or
5069-AENTRK adapter, complete the following tasks:
•Read System Power Considerations
on page 8.
• Confirm that the external power supplies that supply MOD
power and SA power are adequately sized for your Compact
5000 I/O system. For more information, see page 8
.
• Install the Power RTB on the 5069-AENTR or 5069-
AENTRK adapter before you connect power to the adapter.

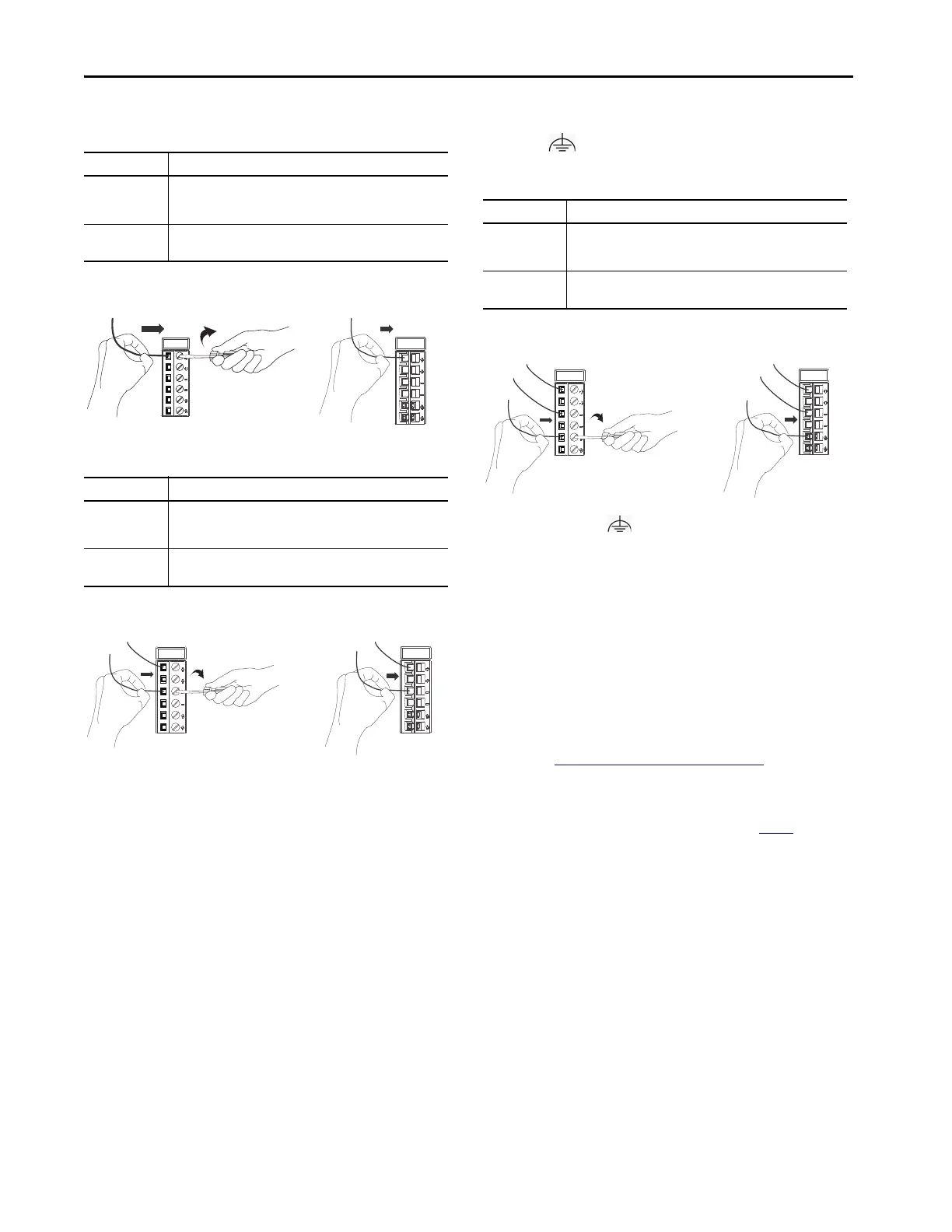

RTB Type Action
Screw
1. Insert the wire into the terminal.
2. Turn the screwdriver to close the terminal on the wire. Torque the
screw to 0.4 N•m (3.5 lb•in).
Spring
Push the wire into the terminal.
If the wire is too thin, crimp a wire ferrule on the wire and insert it.
RTB Type Action
Screw
1. Insert the wire into the terminal.
2. Turn the screwdriver to close the terminal on the wire. Torque the
screw to 0.4 N•m (3.5 lb•in).
Spring
Push the wire into the terminal.
If the wire is too thin, crimp a wire ferrule on the wire and insert it.
5069-RTB6-SPRING RTB
5069-RTB6-SCREW RTB
5069-RTB6-SPRING RTB
5069-RTB6-SCREW RTB
RTB Type Action
Screw
1. Insert the wire into the terminal.
2. Turn the screwdriver to close the terminal on the wire. Torque the
screw to 0.4 N•m (3.5 lb•in).
Spring
Push the wire into the terminal.
If the wire is too thin, crimp a wire ferrule on the wire and insert it.
TIP
The symbol denotes an earth ground terminal that
provides a low impedance path between electrical circuits and
earth for functional purposes and provides noise immunity
improvement. This connection must be made for functional
purposes.
5069-RTB6-SPRING RTB
5069-RTB6-SCREW RTB
