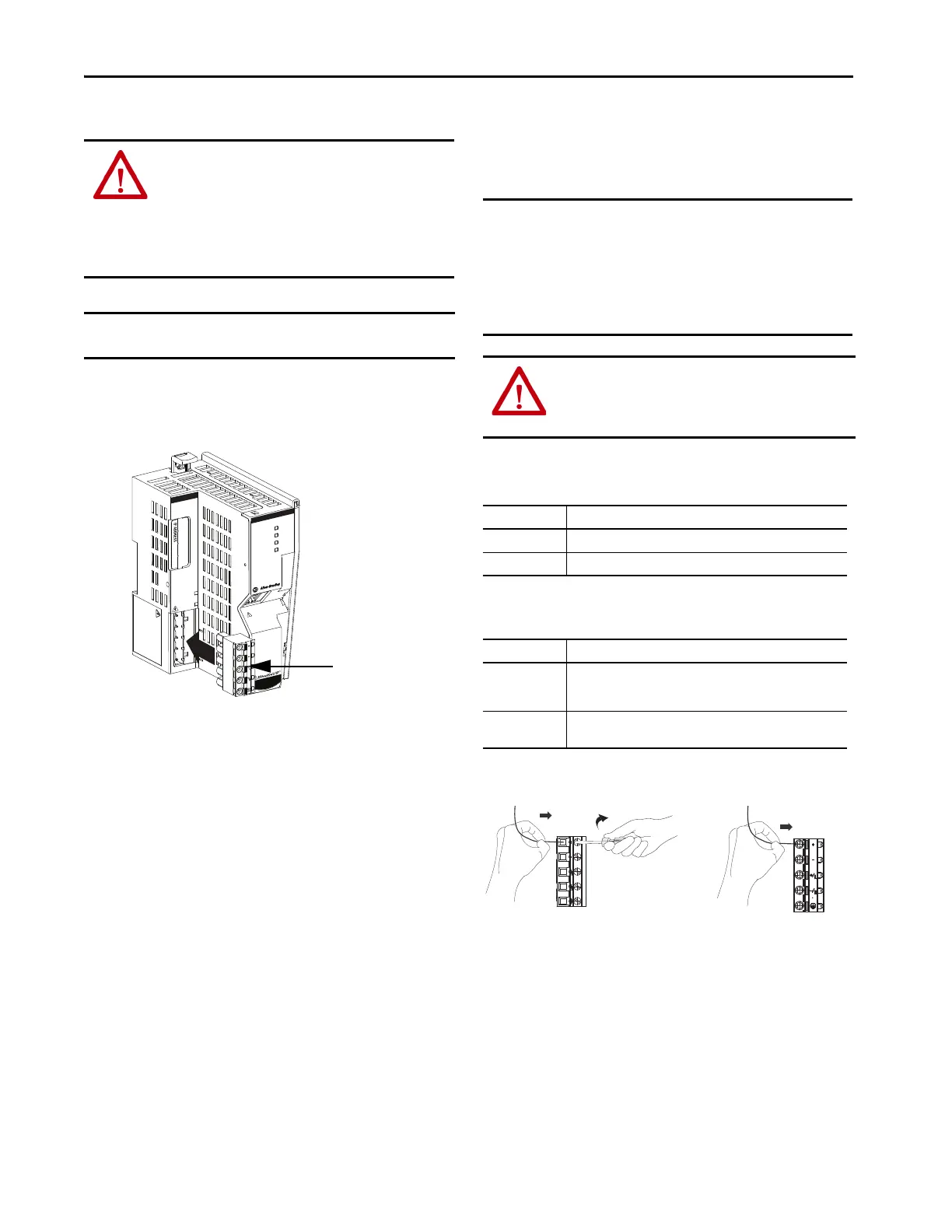

14 Rockwell Automation Publication 5069-IN003E-EN-P - October 2018
Compact 5000 I/O EtherNet/IP Adapters
Install the Power RTB
1. Align the Power RTB with the open connection area on the
adapter.
2. Push the RTB in place.
Connect MOD Power to the 5069-AENTR or 5069-AENTRK Adapter
Before you connect an external power source to the Power RTB
terminals that are used for MOD power, make sure that the power
source is properly sized.
1. Verify that the external power supply is not powered.
2. Strip insulation from the wires that you connect to the RTB.
3. Connect the 24V DC(+) wire from the external power supply
to the + terminal.
WARNING: If you connect or disconnect the Removable Terminal
Block (RTB) with power applied, an Electric Arc can occur. This arc
could cause an explosion in hazardous location installations.
The Removable Terminal Block (RTB) does not support "Removal
and Insertion Under Power" (RIUP) capability. Do not connect or
disconnect the Removable Terminal Block (RTB) while power is
applied. Be sure that power is removed before proceeding.
IMPORTANT The Power RTB is used only on the 5069-AENTR or
5069-AENTRK adapter.
MOD POWER
SA POWER
ADAPTER
2
1
OK
NET
LINK 1
LINK 2
WARNING
-EXPLOSION HAZARD
Do Not Disconnect
While Circuit is Live
Unless Area Is Known
To Be Non-Hazardous
A VERTISSEMENT
-RISQUE D’EXPLOSION.
Ne Pas Debrancher Tant Que
Le Circuit Est Sous Tension,
A Moins Qu’LL Ne S’agisse D’un
Emplacement Non Dengereux
Compact 5000™ I/O
5069-AENTR
IMPORTANT Your application can require a power control device, for
example, a switch, between the external 24V DC power
source and the adapter to control when the module is
powered. If so, you must install the power control device at
the VDC+ terminal on the removable terminal block.
If you install the power control device at the VDC-terminal,
the adapter can fail to power up or power down properly.
WARNING: If you connect or disconnect wiring while the field-
side power is on, an electric arc can occur. This arc could cause an
explosion in hazardous location installations. Be sure that power is
removed or the area is nonhazardous before proceeding.
RTB Type Action
Screw Strip 10 mm (0.39 in.) of insulation from the wires.
Spring Strip 10 mm (0.39 in.) of insulation from the wires.
RTB Type Action
Screw
1. Insert the wire into the terminal.
2. Turn the screwdriver to close the terminal on the wire. Torque the
screw to 0.5…0.6 N•m (4.4…5.3 lb•in).
Spring
Push the wire into the terminal.
If the wire is too thin, crimp a wire ferrule on the wire and insert it.
5069-RTB5-SPRING RTB
5069-RTB5-SCREW RTB
To Next Page
