Compact 5000 I/O EtherNet/IP Adapters

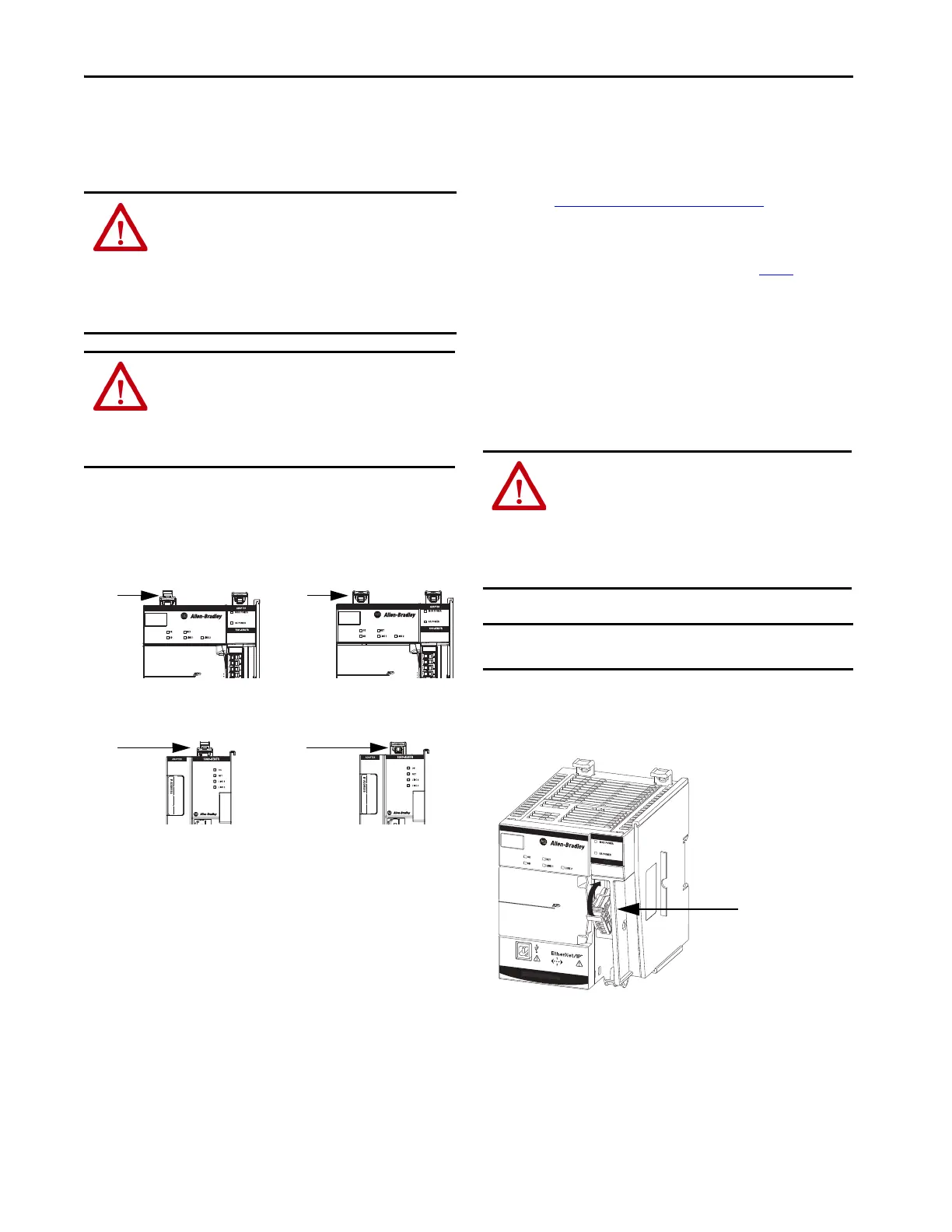

Install the Adapter onto the DIN Rail
The adapter is the first and left-most module in a Compact 5000 I/O
system.
1. Confirm that the DIN rail latches are closed.
2. If the DIN rail latches are open, gently push the rear latch back
until the front latch pops up and clicks.
3. Position the adapter so that the back of it faces the DIN rail.
4. Press the adapter against the DIN rail until you hear a click.
5. Confirm that the adapter is latched securely.
Connect Power to the 5069-AEN2TR Adapter
Before you connect MOD power or SA power to a 5069-AEN2TR
adapter, complete the following tasks:
•Read System Power Considerations
on page 8.
• Confirm that the external power supplies that supply MOD
power and SA power are adequately sized for your Compact
5000 I/O system. For more information, see page 8
.
• Verify that the external power supplies that provide MOD
power and SA power are turned off.
• Install the MOD power RTB and the SA power RTB, if used,
on the 5069-AEN2TR adapter before you connect power to
the adapter.
Install the MOD Power RTB
1. Hook the bottom of the MOD power RTB on the adapter.
2. Push the RTB against the adapter until the RTB clicks into
place.
.
3. Push the RTB handle against the RTB until you hear another
click.
ATTENTION:
• Do not remove or replace the adapter while power is applied.
Interruption of the backplane can result in unintentional
operation or machine motion.
• During DIN rail mounting of all devices, be sure that all debris
(metal chips, wire strands) is kept from falling into the adapter
or modules. Debris that falls into the adapter or modules could
cause damage on powerup.
WARNING: If you insert or remove the adapter while power is on,
an electric arc can occur. This arc could cause an explosion in
hazardous location installations. The module does not support
“Removal and Insertion Under Power” (RIUP) capability. Do not
connect or disconnect the module while power is applied. Be sure
that power is removed before proceeding.
Open
Position
Closed
Position
5069-AEN2TR Adapter
Open
Position
Closed
Position
5069-AENTR and 5069-AENTRK Adapters
WARNING: If you connect or disconnect the Removable Terminal
Block (RTB) with power applied, an Electric Arc can occur. This arc
could cause an explosion in hazardous location installations.
The Removable Terminal Block (RTB) does not support "Removal
and Insertion Under Power" (RIUP) capability. Do not connect or
disconnect the Removable Terminal Block (RTB) while power is
applied. Be sure that power is removed before proceeding.
IMPORTANT The MOD power RTB is used only on the 5069-AEN2TR
adapter.
ADAPTER
COMPACT 5000
AENTR
Compact 5000™ I/O
5069-AEN2TR
MOD Power
SA Power
