8 Rockwell Automation Publication 5069-IN003E-EN-P - October 2018
Compact 5000 I/O EtherNet/IP Adapters

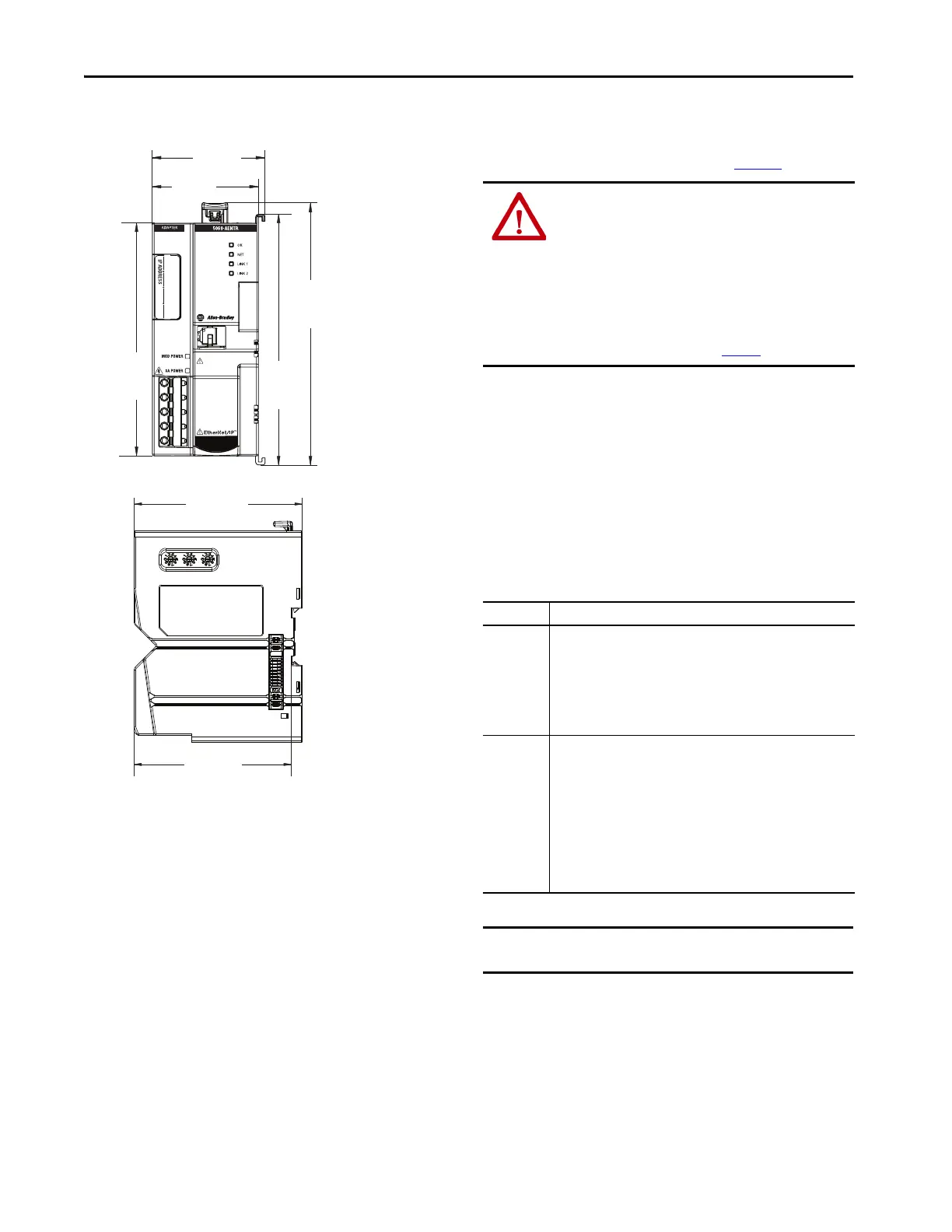

5069-AENTR and 5069-AENTRK Adapter Dimensions
Ground Considerations
You must ground DIN rails according to the Industrial Automation
Wiring and Grounding Guidelines, publication 1770-4.1
You can use the following DIN rails with the adapters:
• EN50022 - 35 x 7.5 mm (1.38 x 0.30 in.)
• EN50022 - 35 x 15 mm (1.38 x 0.59 in.) - 5069-AENTR and
5069-AENTRK only
System Power Considerations
Compact 5000 I/O EtherNet/IP adapters provide power to a
Compact 5000 I/O system via RTBs that are connected to external
power supplies and installed on the adapter.
The RTBs provide the following power to the system.
56.00 mm
(2.20 in.)
132.40 mm
(5.21 in.)
123.00 mm
(4.84 in.)
139.00 mm
(5.47 in.)
105.30 mm
(4.15 in.)
98.80 mm
(3.89 in.)
59.56 mm
(2.34 in.)
ATTENTION: This product is grounded through the DIN rail to
chassis ground. Use zinc-plated chromate-passivated steel DIN
rail to assure proper grounding. The use of other DIN rail
materials (for example, aluminum or plastic) that can corrode,
oxidize, or are poor conductors, can result in improper or
intermittent grounding. Secure DIN rail to mounting surface
approximately every 200 mm (7.8 in.) and use end-anchors
appropriately. Be sure to ground the DIN rail properly. See
Industrial Automation Wiring and Grounding Guidelines,
Rockwell Automation publication 1770-4.1
for more information.
Power Type Description
MOD power
System-side power that is used to operate the Compact 5000 I/O system. MOD
power is provided through the MOD power RTB and passed across the MOD
power bus.
• The total continuous current draw across the MOD power bus must not be
more than 10 A, max, at 18...32V DC.
• Confirm that the external MOD power supply is adequately sized for the
total MOD power bus current draw in the system, plus the MOD power
inrush current requirements.
SA power
Field-side power that is used to power field-side devices. SA power is
provided through the SA power RTB and passed across the SA power bus.
• If you are using DC voltage for SA power, the continuous current draw
across the SA power bus must not be more than 10 A, max
at 18…32VDC.
• If you are using AC voltage for SA power, the continuous current draw
across the SA power bus must not be more than 10 A, max
at 18…240VAC.
• Confirm that the external SA power supply is sized adequately for the total
SA power current draw in the system, including the combined inrush
current requirements for all connected modules.
IMPORTANT The Compact 5000 I/O EtherNet/IP adapters do not have an
embedded power supply that powers the system.
