Allen-Bradley 5069-AENTR User Manual

Rockwell Automation Publication 5069-IN003E-EN-P - October 2018 7
Compact 5000 I/O EtherNet/IP Adapters

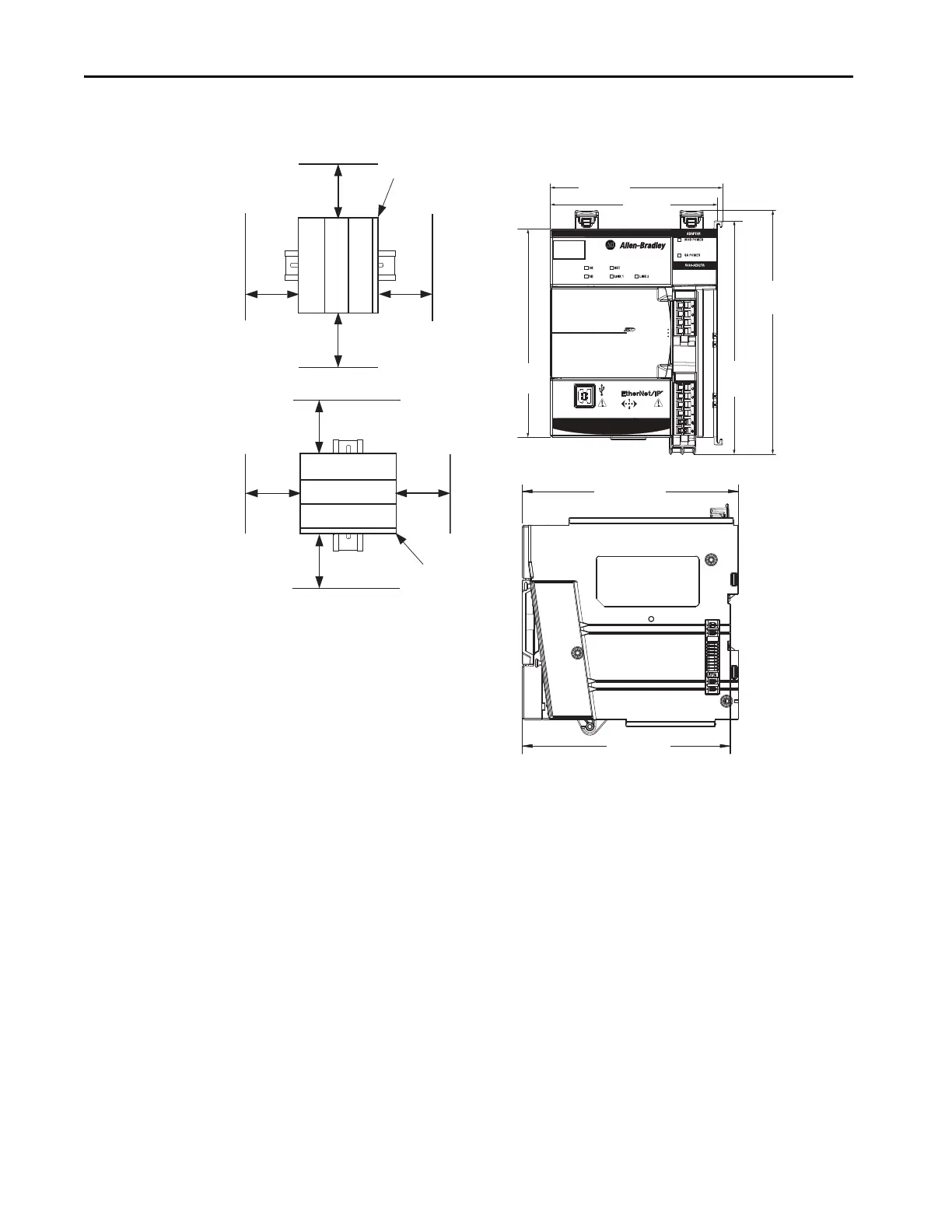

Compact 5000 I/O EtherNet/IP Adapter Spacing
Adapter Dimensions
5069-AEN2TR Adapter Dimensions
Top
Bottom
SideSide
Adapter
Compact 5000 I/O
End cap
Compact 5000 I/O
IMPORTANT: Allow 25 mm (1 in.)
of space on all sides of the system
for adequate ventilation.
Adapter
Compact 5000 I/O
Compact 5000 I/O
Horizontal Mounting
Vertical Mounting
Only the 5069-AENTR and
5069-AENTRK adapters
support vertical mounting.
Top
Bottom
SideSide
End cap
Compact 5000™ I/O
MOD PowerSA Power
98.10 mm
(3.86 in.)
137.84 mm
(5.43 in.)
123.00 mm
(4.84 in.)
143.97 mm
(5.67 in.)
136.81 mm
(5.39 in.)
130.31 mm
(5.13 in.)
101.66 mm
(4.00 in.)
