Rockwell Automation Publication 5069-IN003E-EN-P - October 2018 5
Compact 5000 I/O EtherNet/IP Adapters

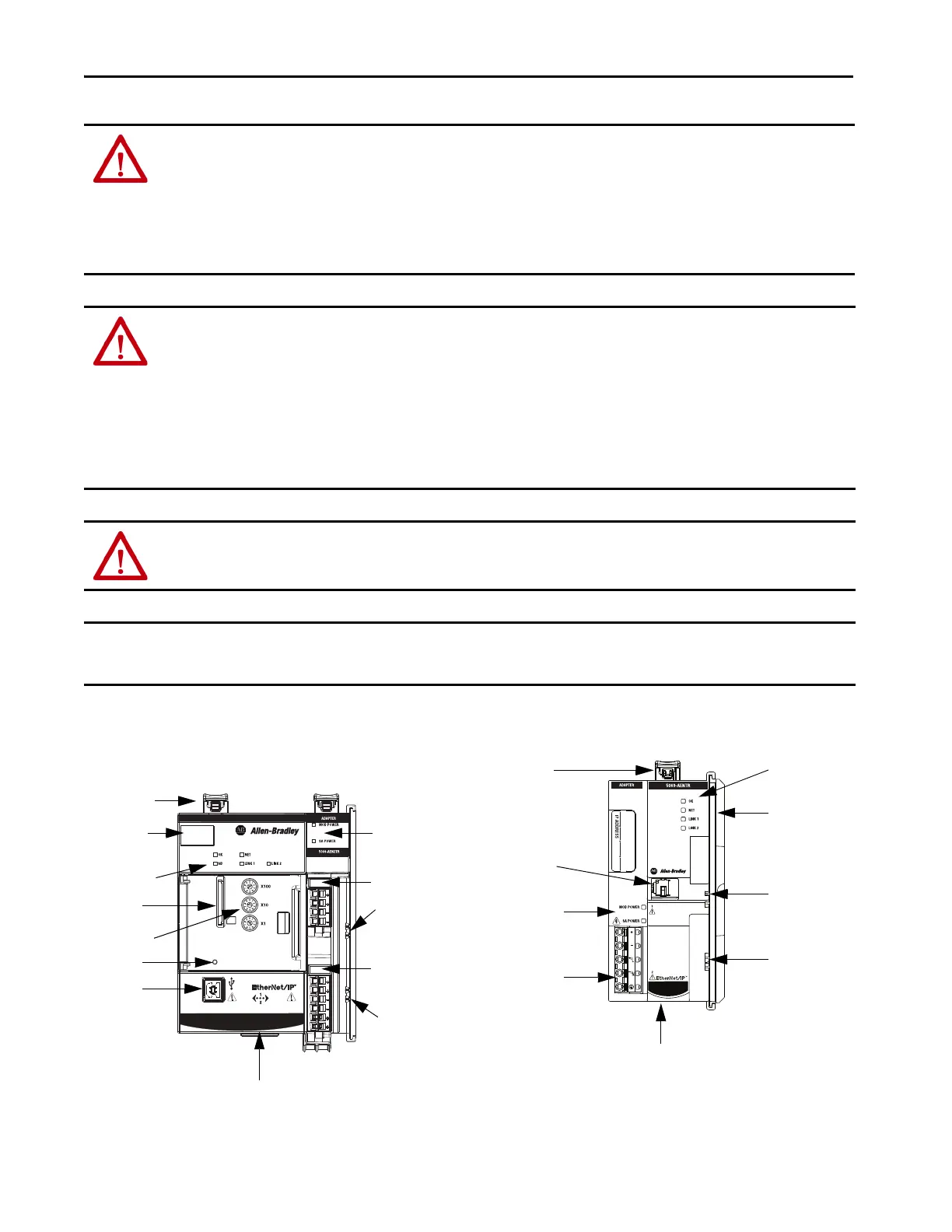

About the Adapters
5069-AEN2TR Adapter
5069-AENTR (5069-AENTRK) Adapter
ATTENTION:
• In case of malfunction or damage, no attempts at repair should be made. The module should be returned to the manufacturer for repair. Do not dismantle the
module.
• This equipment is certified for use only within the surrounding air temperature range of 0…60 °C (32…140 °F) The equipment must not be used outside of
this range.
• Use only a soft dry anti-static cloth to wipe down equipment. Do not use any cleaning agents.
• 5069-AEN2TR EtherNet/IP adapter only — The USB port is intended for temporary local programming purposes only and not intended for permanent
connection. The USB cable is not to exceed 3.0 m (9.84 ft) and must not contain hubs.
WARNING:
• If you connect or disconnect wiring while the field-side power is on, an electric arc can occur. This could cause an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
• When used in a Class I, Division 2, hazardous location, this equipment must be mounted in a suitable enclosure with proper wiring method that complies with
the governing electrical codes.
• 5069-AEN2TR EtherNet/IP adapter only:
– When you insert or remove the SD memory Card while power is on, an electric arc can occur. This could cause an explosion in hazardous location
installations. Be sure that power is removed or the area is nonhazardous before proceeding.
– When you press the reset button while power is on, an electric arc can occur. This could cause an explosion in hazardous location installations. Be sure that
power is removed or the area is nonhazardous before proceeding.
WARNING: Do not use the USB port in hazardous locations. (5069-AEN2TR EtherNet/IP adapter only.)
IMPORTANT Any illustrations, charts, sample programs, and layout examples shown in this publication are intended solely for the purposes of example. Since there are
many variables and requirements associated with any particular installation, Rockwell Automation does not assume responsibility or liability for actual use
based upon the examples shown in this publication.
Compact 5000™ I/O
MOD PowerSA Power
DIN Rail Latches
Status Indicators
SD Card Slot
Reset Button
Four-character
Display
Module Power and
Sensor/Actuator
Power Status
Indicators
MOD Power RTB
SA Power RTB
USB Port
Rotary Switches
Ethernet ports 1 and 2 (on bottom of the adapter)
IMPORTANT: Port 1 is the front port and port 2 is the rear port.
MOD Power Bus
Connector
SA Power Bus
Connector
DIN Rail Latch Status Indicators
Module Power and
Sensor/Actuator Power
Status Indicators
Rotary switches
(on side of adapter)
Power RTB
Ethernet port 2 (on bottom of the adapter)
MOD Power Bus
Connector
SA Power Bus
Connector
Ethernet port 1
