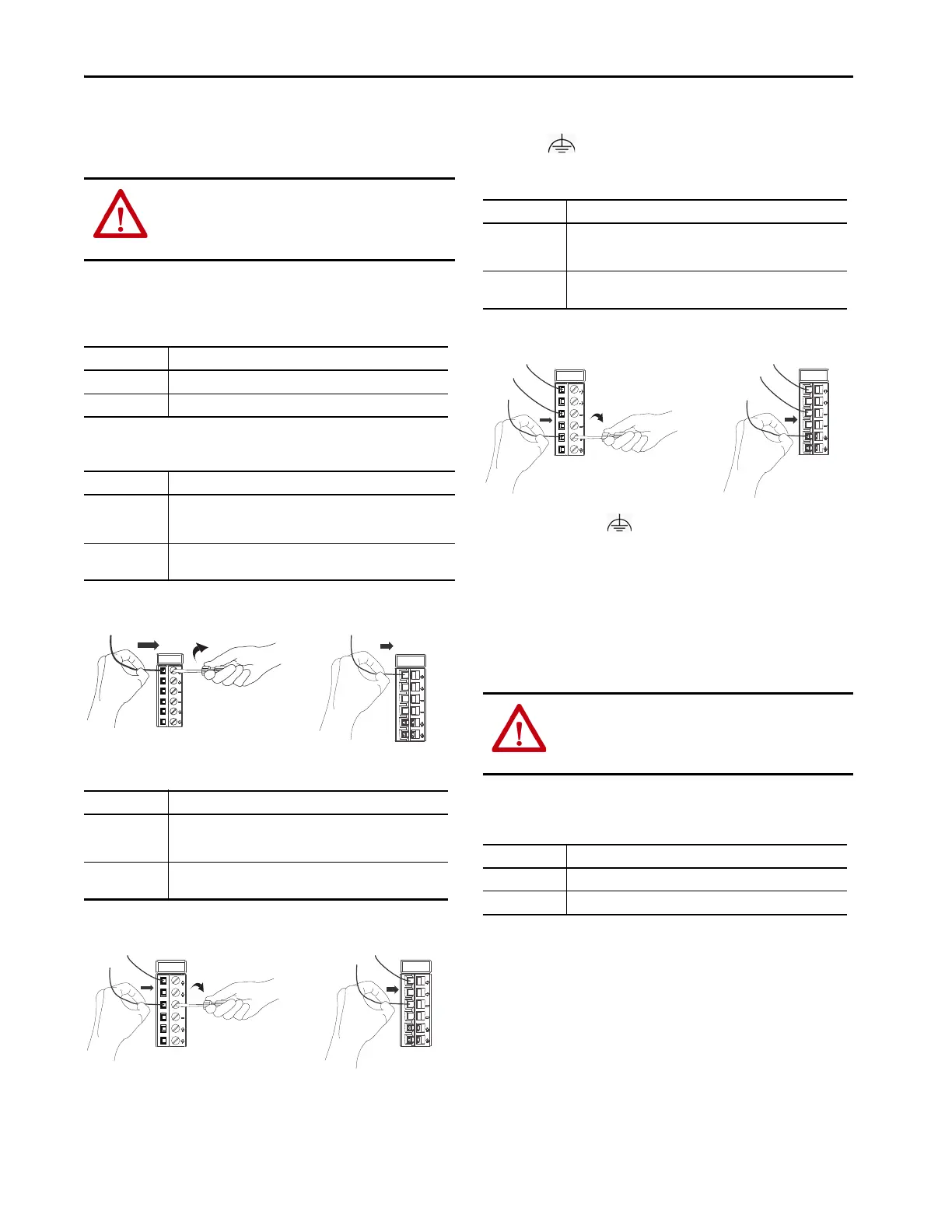

12 Rockwell Automation Publication 5069-IN003E-EN-P - October 2018
Compact 5000 I/O EtherNet/IP Adapters
Connect SA DC Power to the 5069-AEN2TR Adapter
Before you connect an external DC power source to the SA power
RTB, make sure that the SA power source is adequately sized.
1. Confirm that MOD power and all sources of SA power are
turned off.
2. Strip insulation from the wires that you connect to the RTB.
3. Connect the DC(+) wire from the external DC power supply
to the first + terminal.
4. Connect the DC(—) wire from the external SA DC power
supply to the first — terminal.
5. Connect a wire from an earth ground location to the
first terminal on the RTB. The earth ground location can
be the external SA power supply, the DIN rail, or other earth
ground location.
Connect SA AC Power to the 5069-AEN2TR Adapter
Before you connect an external AC power source to the SA power
RTB, make sure that the SA power source is adequately sized.
1. Verify that the SA power source is not powered on.
2. Strip insulation from the wires that you connect to the RTB.
WARNING: If you connect or disconnect wiring while the field-
side power is on, an electric arc can occur. This arc could cause an
explosion in hazardous location installations. Be sure that power is
removed or the area is nonhazardous before proceeding.
RTB Type Action
Screw Strip 12 mm (0.47 in.) of insulation from the wires.
Spring Strip 10 mm (0.39 in.) of insulation from the wires.
RTB Type Action
Screw
1. Insert the wire into the terminal.
2. Turn the screwdriver to close the terminal on the wire. Torque the
screw to 0.4 N•m (3.5 lb•in).
Spring
Push the wire into the terminal.
If the wire is too thin, crimp a wire ferrule on the wire and insert it.
RTB Type Action
Screw
1. Insert the wire into the terminal.
2. Turn the screwdriver to close the terminal on the wire. Torque the
screw to 0.4 N•m (3.5 lb•in).
Spring
Push the wire into the terminal.
If the wire is too thin, crimp a wire ferrule on the wire and insert it.
5069-RTB6-SPRING RTB
5069-RTB6-SCREW RTB
5069-RTB6-SPRING RTB
5069-RTB6-SCREW RTB
RTB Type Action
Screw
1. Insert the wire into the terminal.
2. Turn the screwdriver to close the terminal on the wire. Torque the
screw to 0.4 N•m (3.5 lb•in).
Spring
Push the wire into the terminal.
If the wire is too thin, crimp a wire ferrule on the wire and insert it.
TIP
The symbol denotes an earth ground terminal that
provides a low impedance path between electrical circuits and
earth for functional purposes and provides noise immunity
improvement. This connection must be made for functional
purposes.
WARNING: If you connect or disconnect wiring while the field-
side power is on, an electric arc can occur. This arc could cause an
explosion in hazardous location installations. Be sure that power is
removed or the area is nonhazardous before proceeding.
RTB Type Action
Screw Strip12 mm (0.47 in.) of insulation from the wires.
Spring Strip 10 mm (0.39 in.) of insulation from the wires.
5069-RTB6-SPRING RTB
5069-RTB6-SCREW RTB
