68 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019
Chapter 2 Features Common to Compact 5000 I/O Digital Modules
Input Module Compatibility
Compact 5000 I/O digital input modules interface to sensing devices and
detect whether they are On or Off.
The input modules convert DC On/Off signals from user devices to
appropriate logic level for use in the controller. Typical input devices include
the following:
• Proximity switches
• Limit switches
• Selector switches
• Float switches
• Push-button switches
When you design systems with Compact 5000 I/O digital input modules,
consider the following factors:
• Voltage necessary for your application
• Current leakage
• Whether you need a solid-state device
• Whether your application uses sinking or sourcing wiring

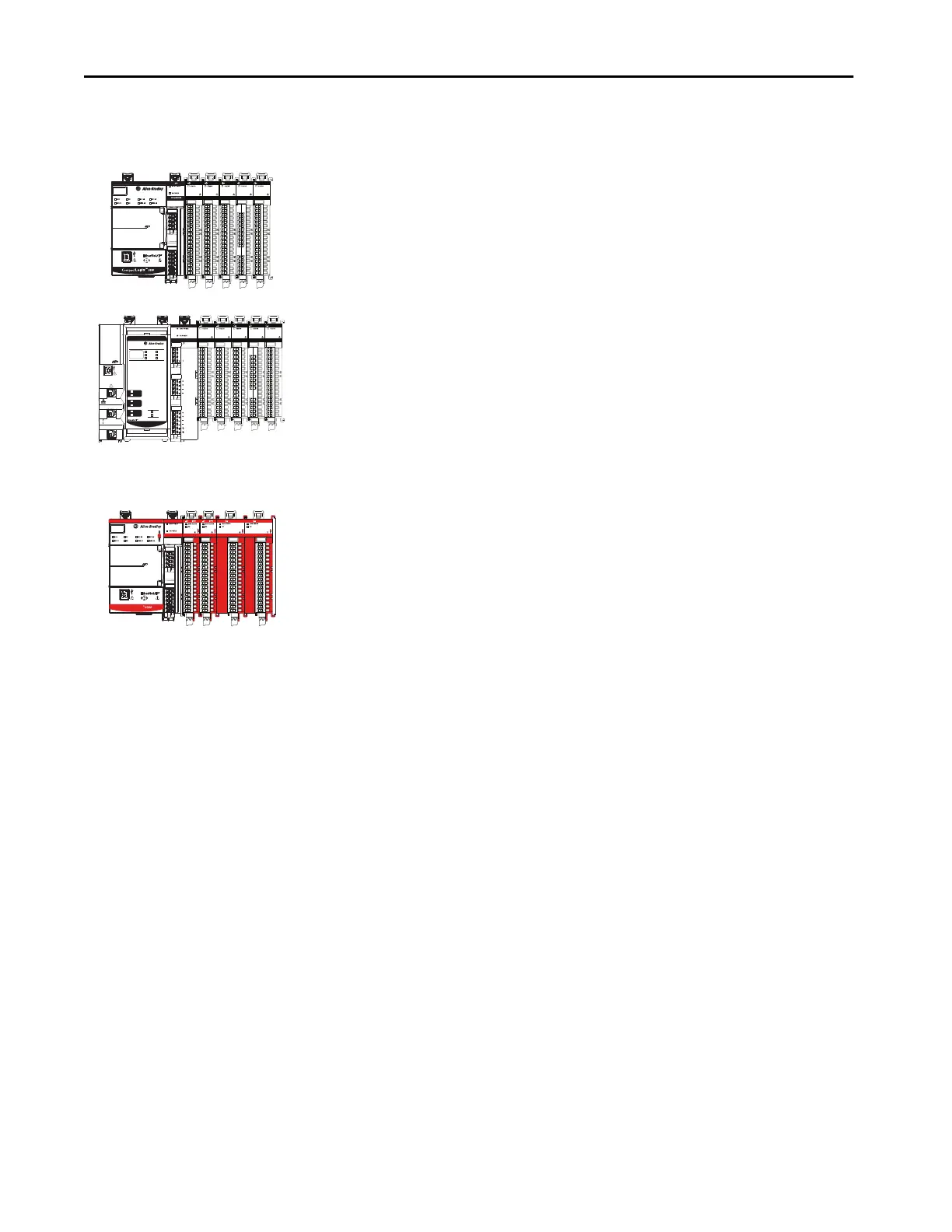

5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Safety Modules
â„¢
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
To Next Page
