10 Rockwell Automation Publication 1609-UM009A-EN-P - January 2013
Bulletin 1609 UPS
Connect Power and
Equipment to the UPS
1. Connect the appropriate input power to the UPS's input (Line, Neutral
and Ground) terminals (see Figure 2).
2. Connect the specified equipment to the UPS's output (Line, Neutral and
Ground) terminals (see Figure 2).

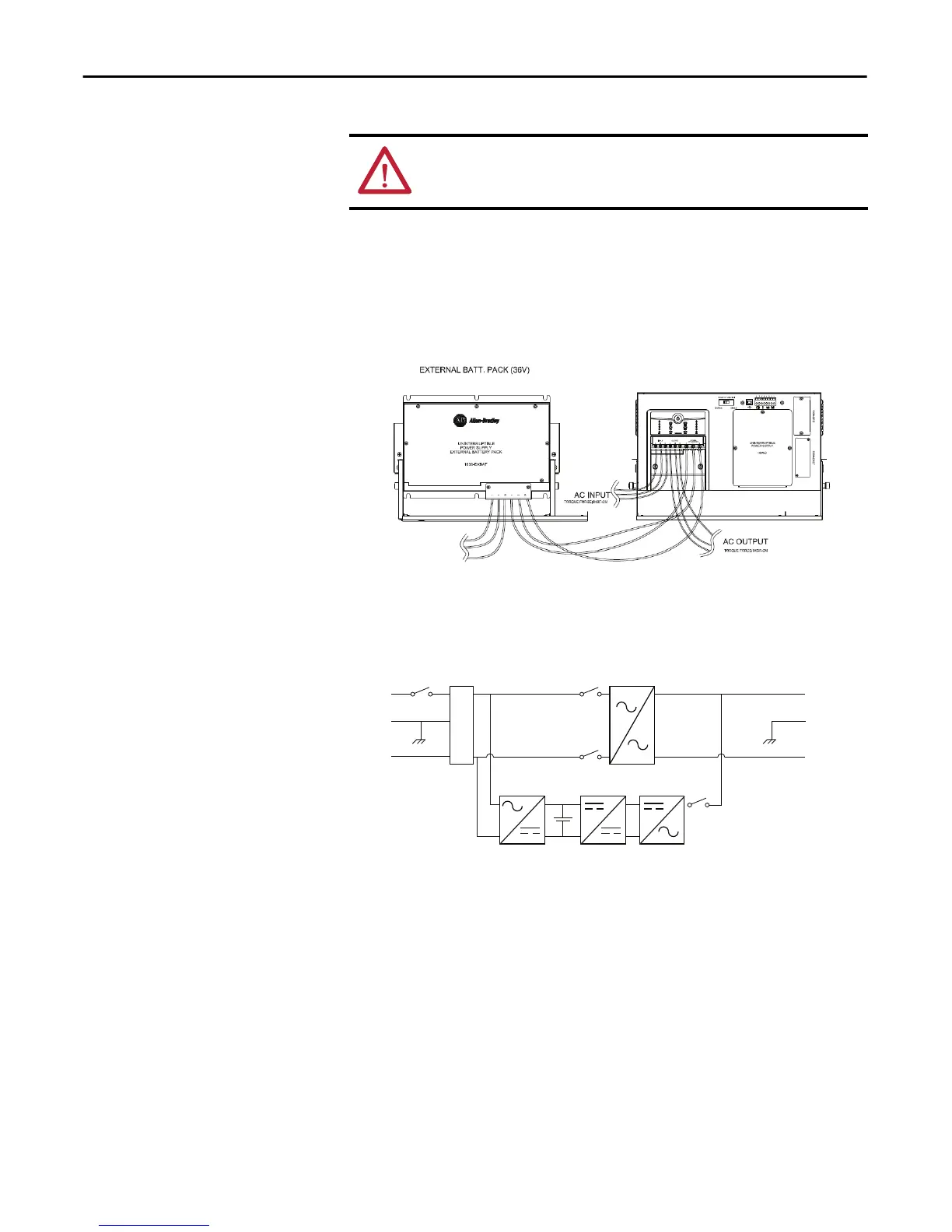

Figure 2 - System Wiring
3. Connect any additional optional accessories (1609-ENET card).
1609-D Block Figure
WARNING: This UPS features Surge Protection Device (SPD) is located
on the left front of the unit. Disconnect all power sources before servicing
due to Electric Shock Hazard for risk of severe injury or death.
L
E
N
L
E
AC
Input
AC
Output
Backfeed
Relay
Inverter
Relay
+
-
AVR
AC to AC
AC to DC DC to DC DC to AC
Backfeed
Relay
Input
Filter
Breaker
N
