Rockwell Automation Publication 1609-UM009A-EN-P - January 2013 21
Bulletin 1609 UPS

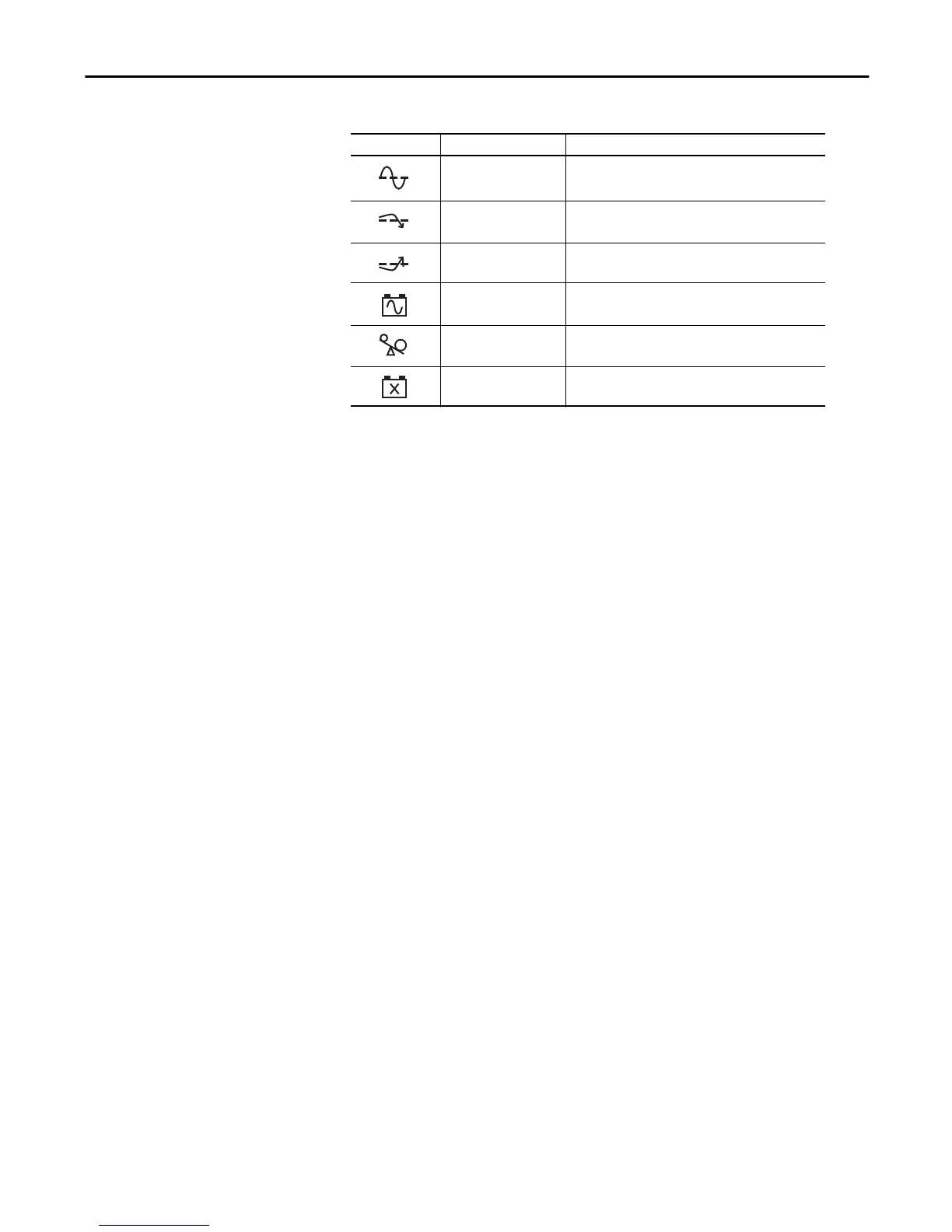

Display LED Indicators
Indicator LED Indicator Title Description
Online The UPS is supplying utility power to the connected equipment
(see Troubleshooting).
AVR Trim ➊ The UPS is compensating for a high utility voltage
(see Troubleshooting).
AVR Boost ➊ The UPS is compensating for a low utility voltage
(see Troubleshooting).
On Battery The UPS is supplying battery power to the connected equipment.
Overload The connected equipment is drawing more than the UPS power
rating allows (see Troubleshooting).
Replace Battery/Disconnect The battery is disconnected or must be replaced
(see Troubleshooting).
➊ Applies to 1609-D only
