12 Rockwell Automation Publication 1609-UM009A-EN-P - January 2013

Bulletin 1609 UPS

Battery Wiring

and Installation (cont.)

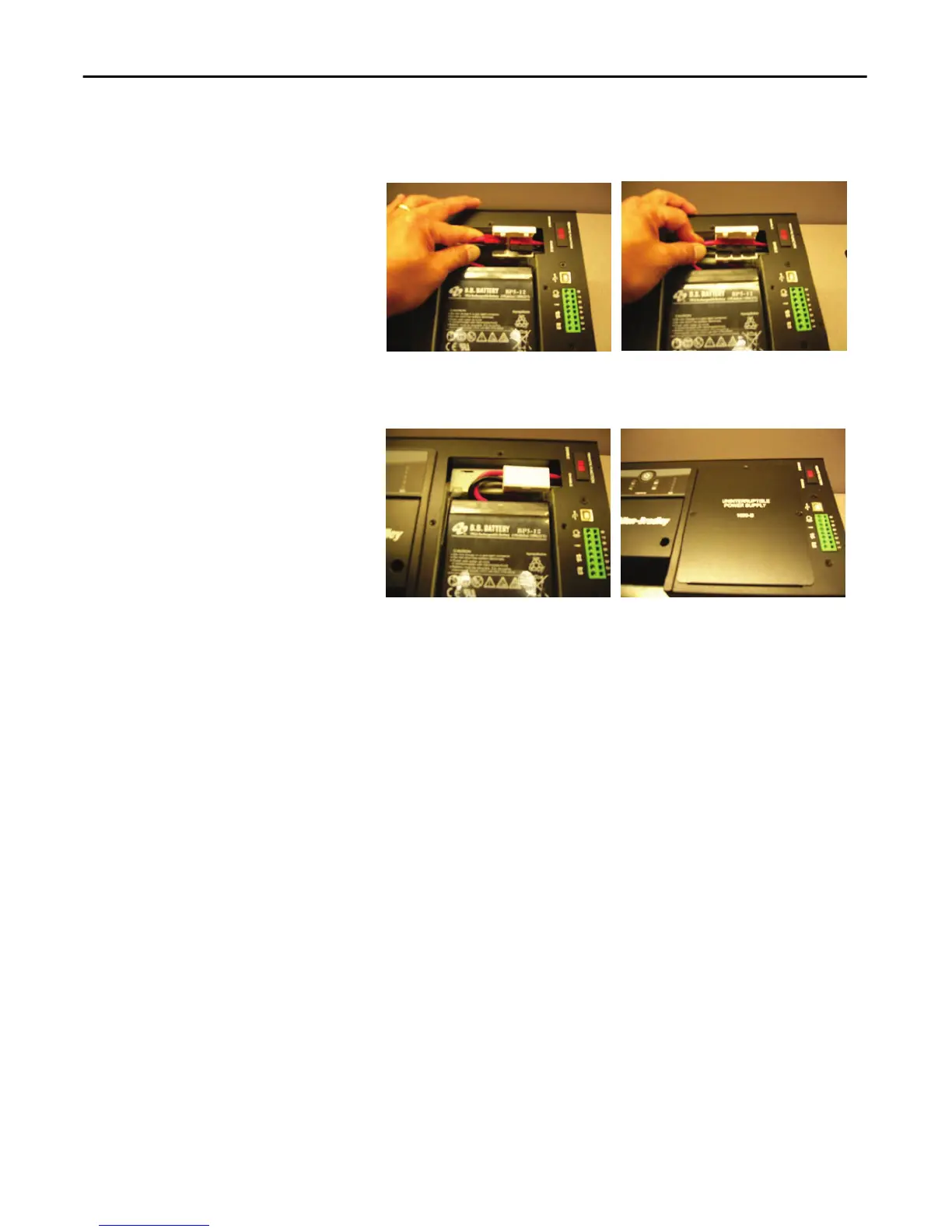

4. To connect the batteries to the UPS, insert the batteries into the battery

compartment, open the white connector retainer and connect the two

cables together as shown in the photo below.

5. To complete the battery installation, close the white connector retainer

and reattach the battery door with the three screws (torque of 8.7+/-1.7 lb-in).
