16 Rockwell Automation Publication 1609-UM009A-EN-P - January 2013
Bulletin 1609 UPS
Battery Wiring
and Installation (cont.)

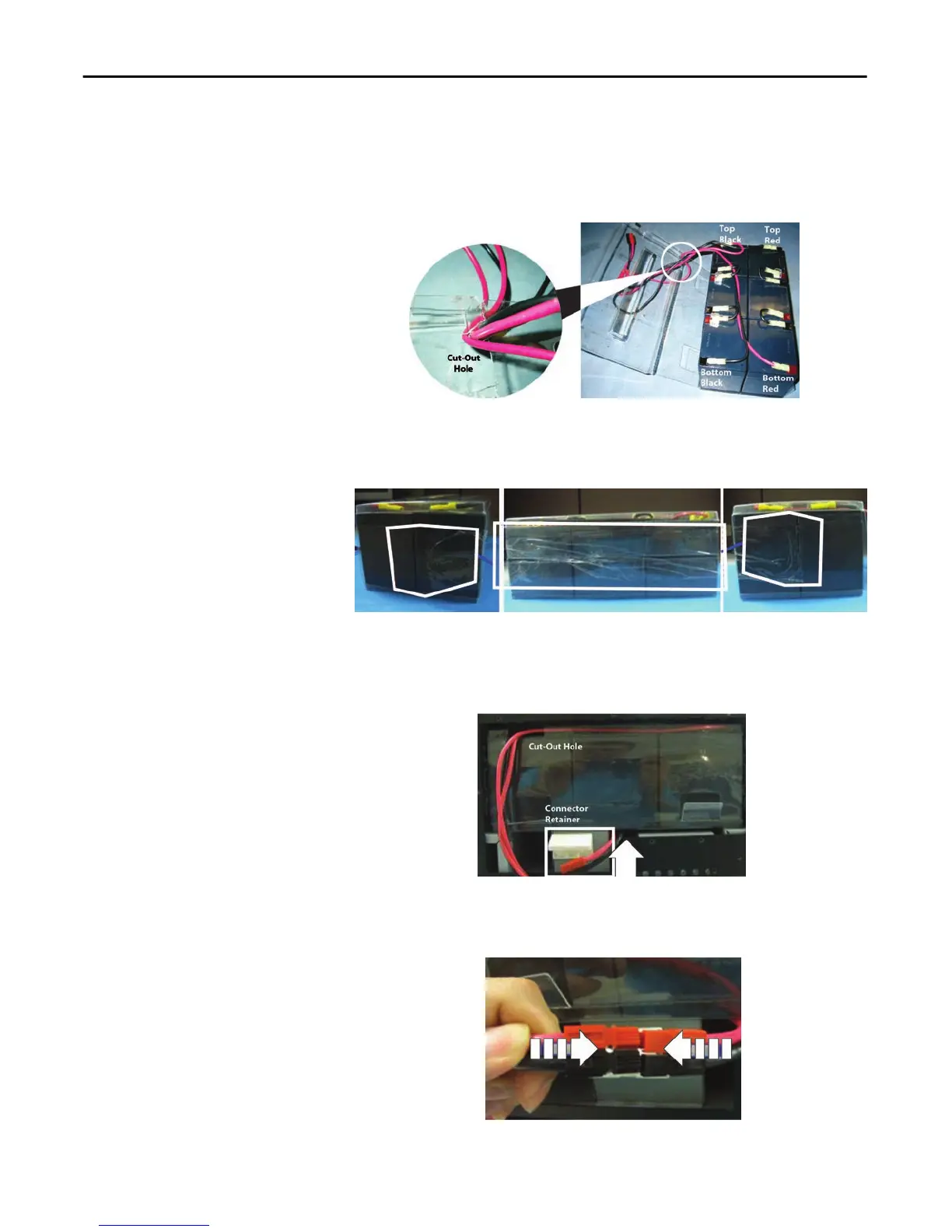

3. Connect the shorter set of red and black wires of the harness to the top
terminals (red - to - red and black - to - black). Connect the longer set
of red and black wires of the harness to the bottom terminals (red - to - red
and black - to - black) and route the wires through the cut-out hole. See
photo below for details.
4. Fold the battery container and seal it with tape.
5. Insert the batteries into the battery compartment in the orientation as
shown in the photo below.
6. Open the white connector retainer and connect the two cables together
as shown in the photo below.
To Next Page
