Rockwell Automation Publication 1769-UM021G-EN-P - October 2015 131
Communicate over Networks Chapter 6

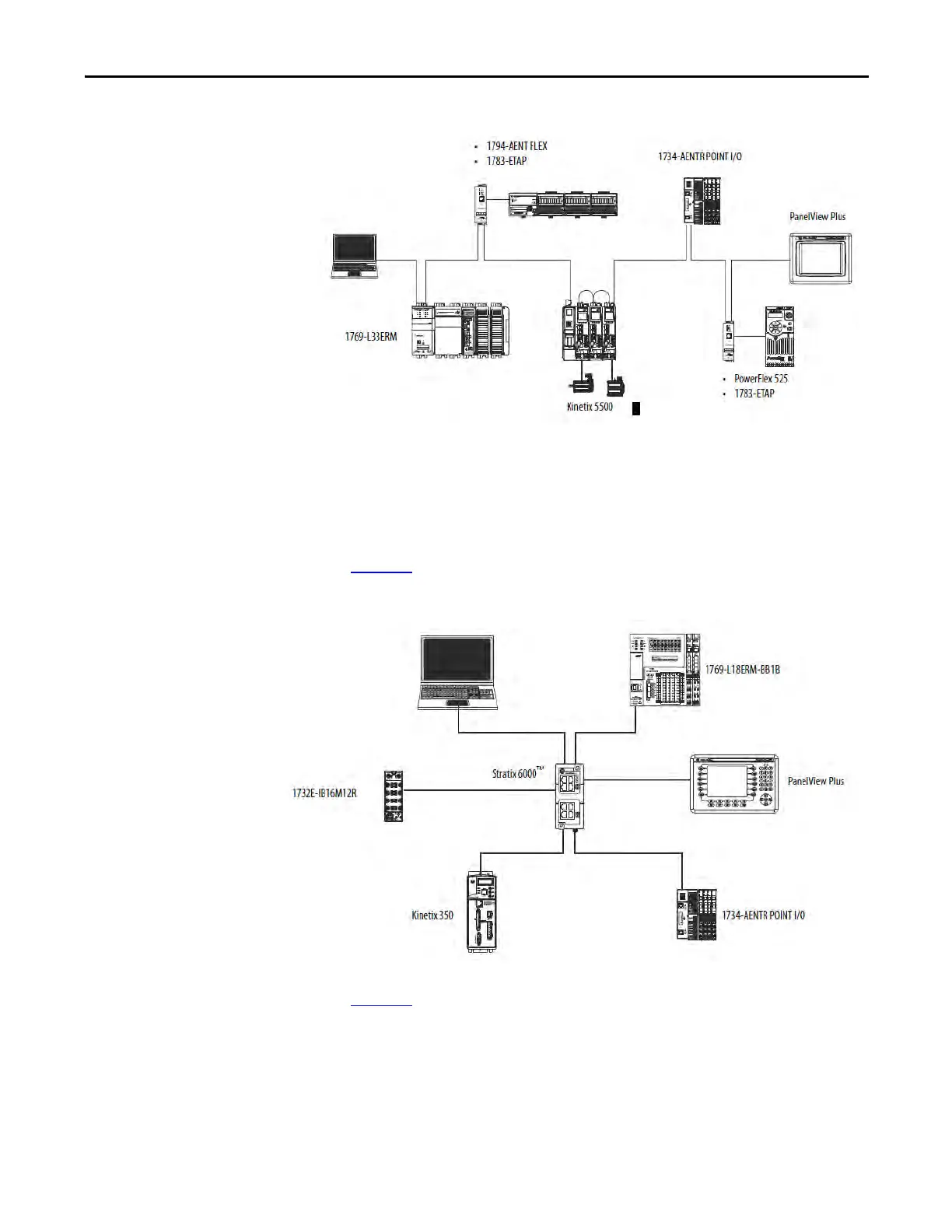

Figure 13 - Example 1769-L33ERM Control System Using a Linear Network Topology
Star Network Topology
A star network topology is a traditional EtherNet/IP network that includes
multiple devices that are connected to each other via an Ethernet switch.
Figure 14
shows a 1769-L18ERM-BB1B control system using a star topology.
Figure 14 - Example1769-L18ERM-BB1B Control System Using a Star Network Topology
Figure 15 shows a 1769-L27ERM-QBFC1B control system using a star
topology.
