136 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 6 Communicate over Networks

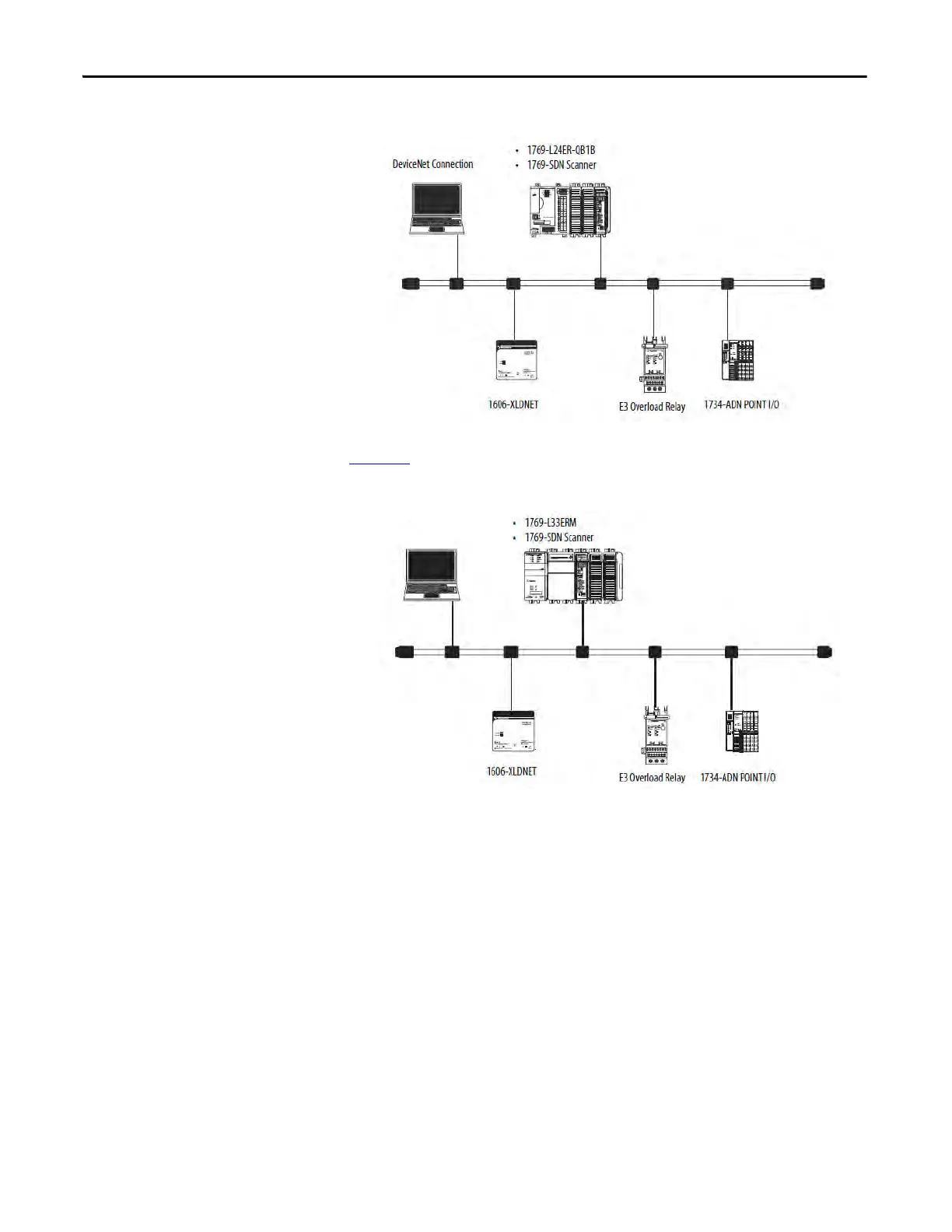

Figure 17 - Example 1769-L24ER-QB1B Control System Using a DeviceNet Network
Figure 18 shows an example 1769-L33ERM using a DeviceNet network.
Figure 18 - Example 1769-L33ERM Control System Using a DeviceNet Network
