148 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 7 Use I/O Modules with CompactLogix 5370 L1 Controllers
5. Connect the wire that is connected to the - terminal on the external 24V
DC power source to the FP- terminal, that is the fifth terminal from the
top, on the removable connector.
6. Plug the removable connector into the controller.
7. Secure the removable connector in place.
8. Turn on power to the separate external 24V DC power source connected
to the removable connector.

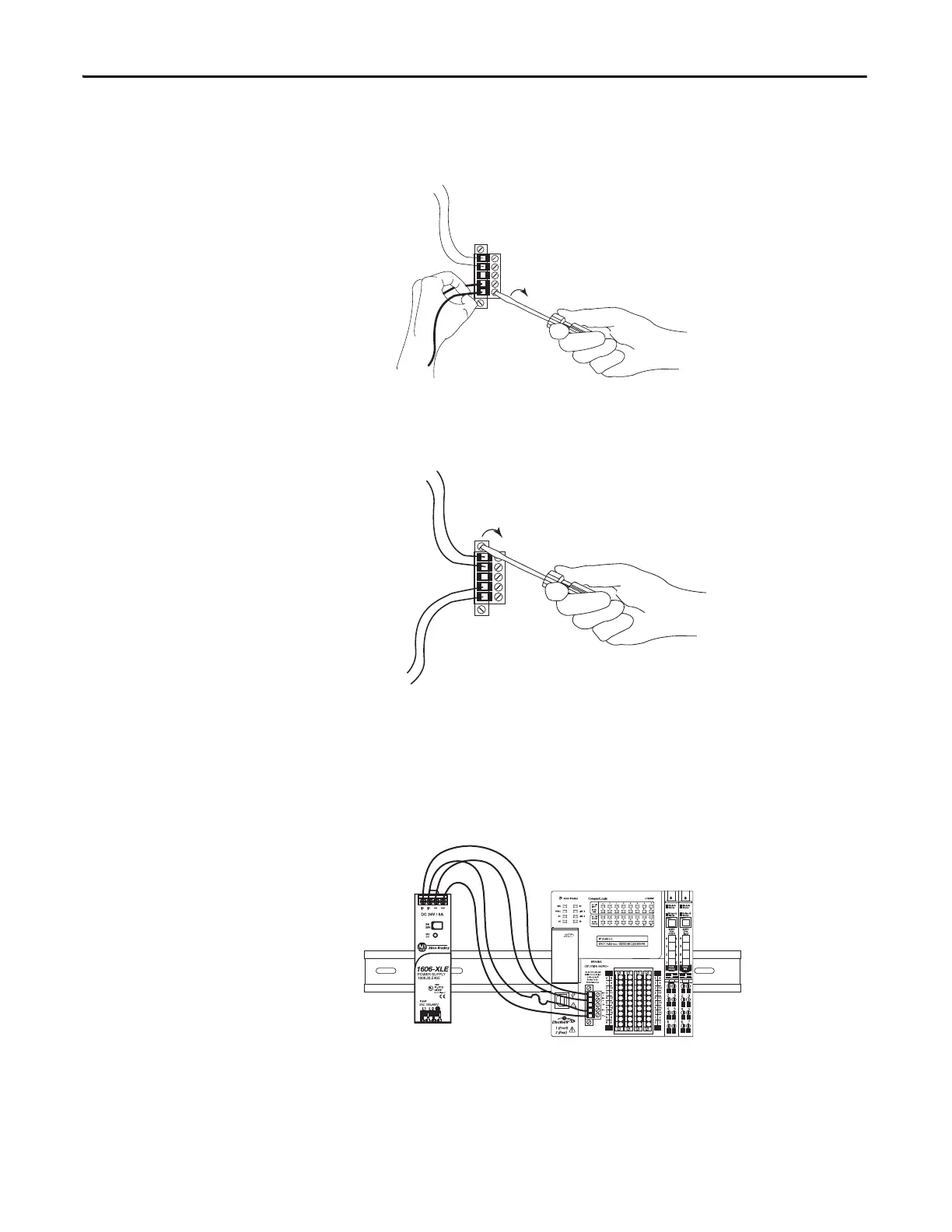

The following graphic shows separate external 24V DC power supply that is
connected to the VDC+/VDC- and FP+/FP- terminals on the removable
connector, respectively.
IMPORTANT: No wires are
connected to the NC terminal.
