192 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 8 Use I/O Modules with CompactLogix 5370 L2 Controllers
Tab le 11 lists the available embedded analog output channel types and ranges for
the channel type. The configuration choices are made on the Output
Configuration tab of the Module Properties dialog box, as shown in the table.
Figure 33
shows an example of wiring input devices to the analog output points
on the 1769-L27ERM-QBFC1B controller when it is operating in voltage or
current mode.

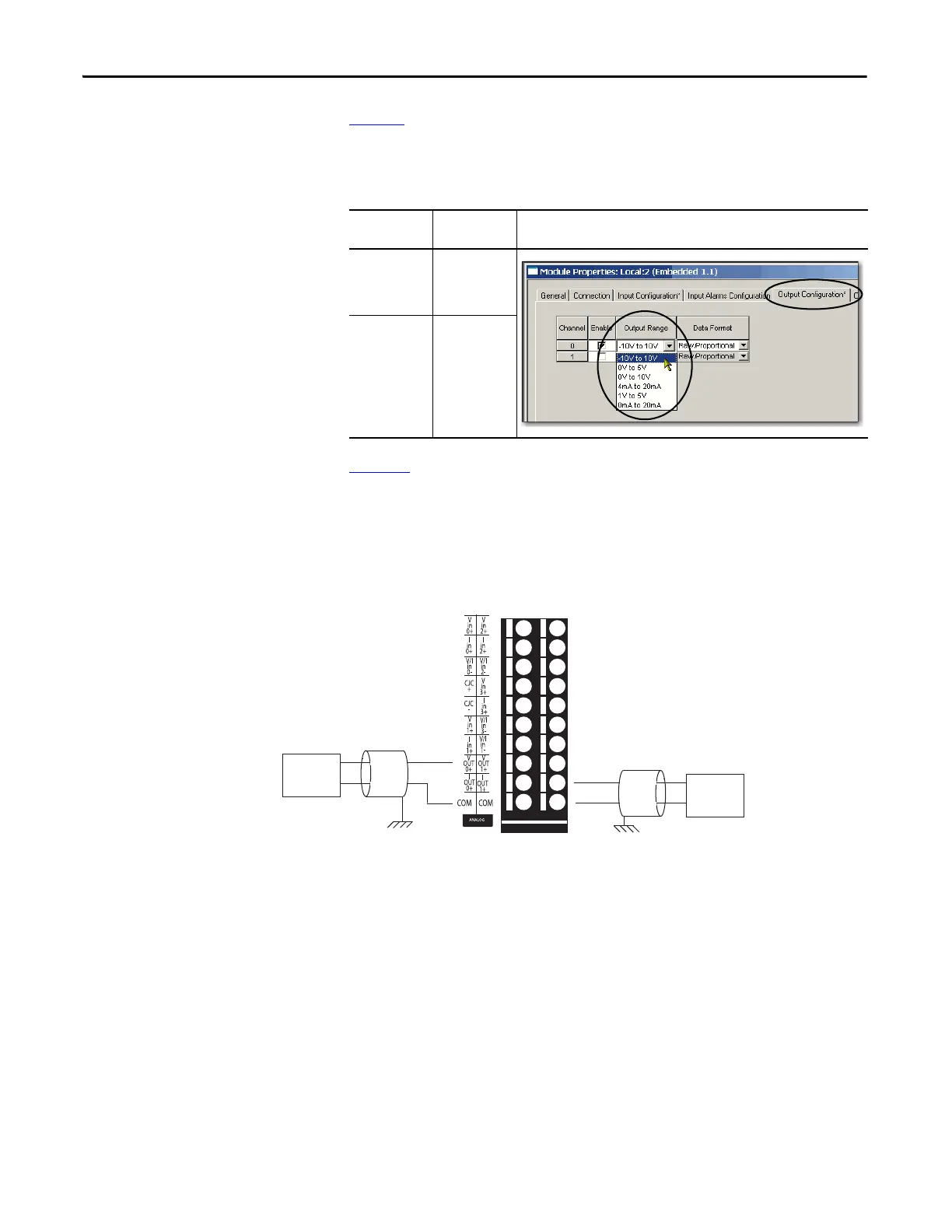

Figure 33 - 1769-L27ERM-QBFC1B Controller Analog Output Wiring Diagrams
Table 11 - Output Types
Output Type Output
Ranges
Project Configuration
Voltage • -10…10V
• 0…5V
• 0…10V
• 1…5V
Current • 4…20 mA
• 0…20 mA
Voltage
Load
Earth Ground
Current
Load
Voltage Analog
Output Wiring
Diagram
Current Analog
Output Wiring
Diagram
Earth Ground
