10 ControlLogix DC (19.2-30V) Diagnostic Output Module
Publication 1756-IN058D-EN-P - October 2000

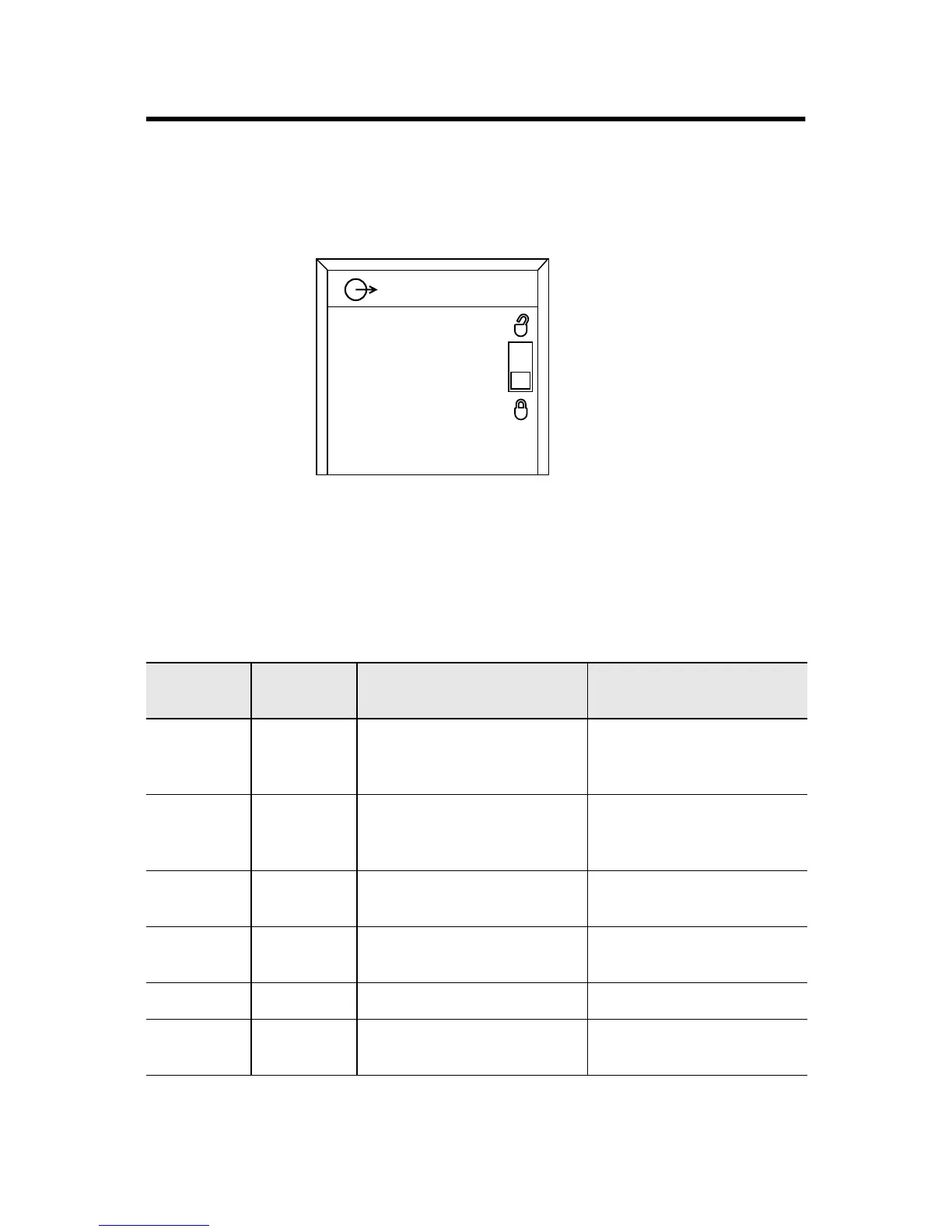

Check the Indicators
The indicators show individual I/O status (yellow) for each point and
a bi-colored LED for module "OK" (red/green).
During power up, an indicator test is done and the following occurs:
• The "OK" indicator turns red for 1 second and then turns to
flashing green if it has passed the self-test.
• The I/O status indicators turn ON for a maximum of 2 seconds
and then turn OFF.
This completes installation of the module. Use the information below
to remove the module.
LED
indicator:
This
display:
Means: Take this action:
OK Steady
green light
The outputs are actively being
controlled by a system
processor.
None
OK Flashing
green light
The module has passed
internal diagnostics but is not
actively controlled.
Configure the module.
OK Flashing red
light
Previously established
communication has timed out.
Check controller and chassis
communication.
OK Steady red
light
An unrecoverable error has
occurred on the module.
Replace the module.
I/O State Yellow The output is active. None
I/O Fault Red A fault has occurred for this
point.
Check this point at the
controller.
40463-M
ST01234567
FLT012 34567
DIAGNOSTIC
S T 8 9 10 11 12 13 14 15
FLT 8 9 101112131415
DC OUTPUT
O
K
