Rockwell Automation Publication 842E-UM001C-EN-P - September 2016 47
Configuring the Encoder for Your EtherNet/IP Network Chapter 5

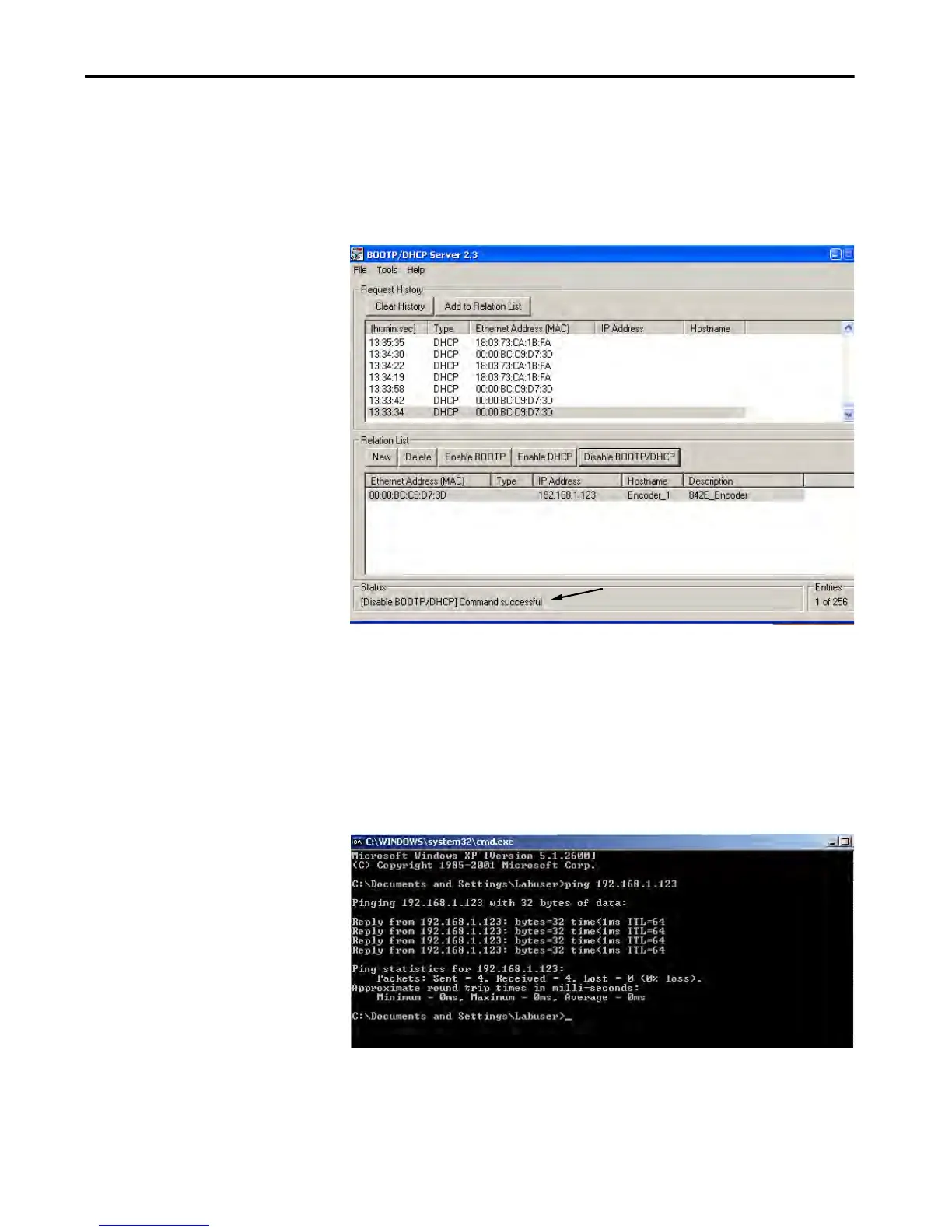

5. Disable DHCP: highlight it by clicking once on the encoder in the
relation list. Then click Disable BOOTP/DHCP to instruct the 842E
encoder to retain the IP address at the next power cycle.
Wait for the status message to show that the command was successfully
sent. If the message does not appear, repeat this step.
Figure 3
6. Click File > Save As to save the relationship, if desired.
7. Cycle the power to the 842E encoder. You no longer see that the 842E
encoder appears in the request history panel.
From a DOS prompt, you can ping the new address. The response is four
packets sent, four packets received, and zero lost.
Figure 4
