Kinetix 5700 DC-bus Power Supplies 13
Rockwell Automation Publication 2198-IN009B-EN-P - June 2015
Ground Your DC-bus Power Supply to the Subpanel
Ground Kinetix 5700 drives and Bulletin 2198 capacitor modules to a bonded-cabinet ground
bus with a braided ground strap. Keep the braided ground strap as short as possible for optimum
bonding.

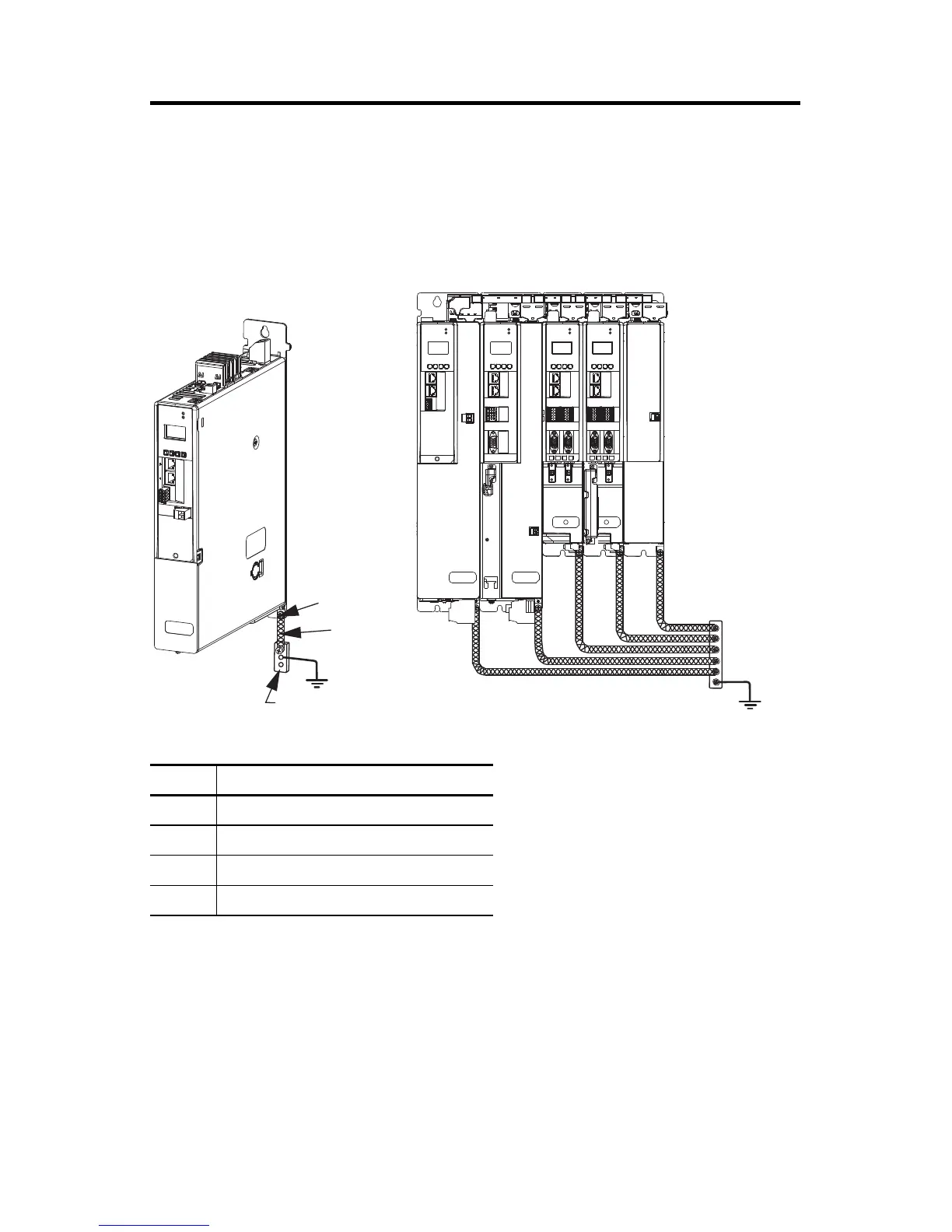

Connect the Braided Ground Strap
Item Description
1 Ground screw (green) 2.0 N•m (17.5 lb•in), max
2 Braided ground strap (customer supplied)
3 Ground grid or power distribution ground
4 Bonded-cabinet ground bus (customer supplied)
Braided Ground Straps
12 mm (0.5 in.) by 0.8 mm (0.03 in.)
Keep straps as short as possible.
4
3
2
1
DC-bus Power Supply
(typical example)
Kinetix 5700 Servo Drives
(typical system)
To Next Page
