Allen-Bradley Kinetix 5700 Installation Instructions

8 Kinetix 5700 DC-bus Power Supplies
Rockwell Automation Publication 2198-IN009B-EN-P - June 2015

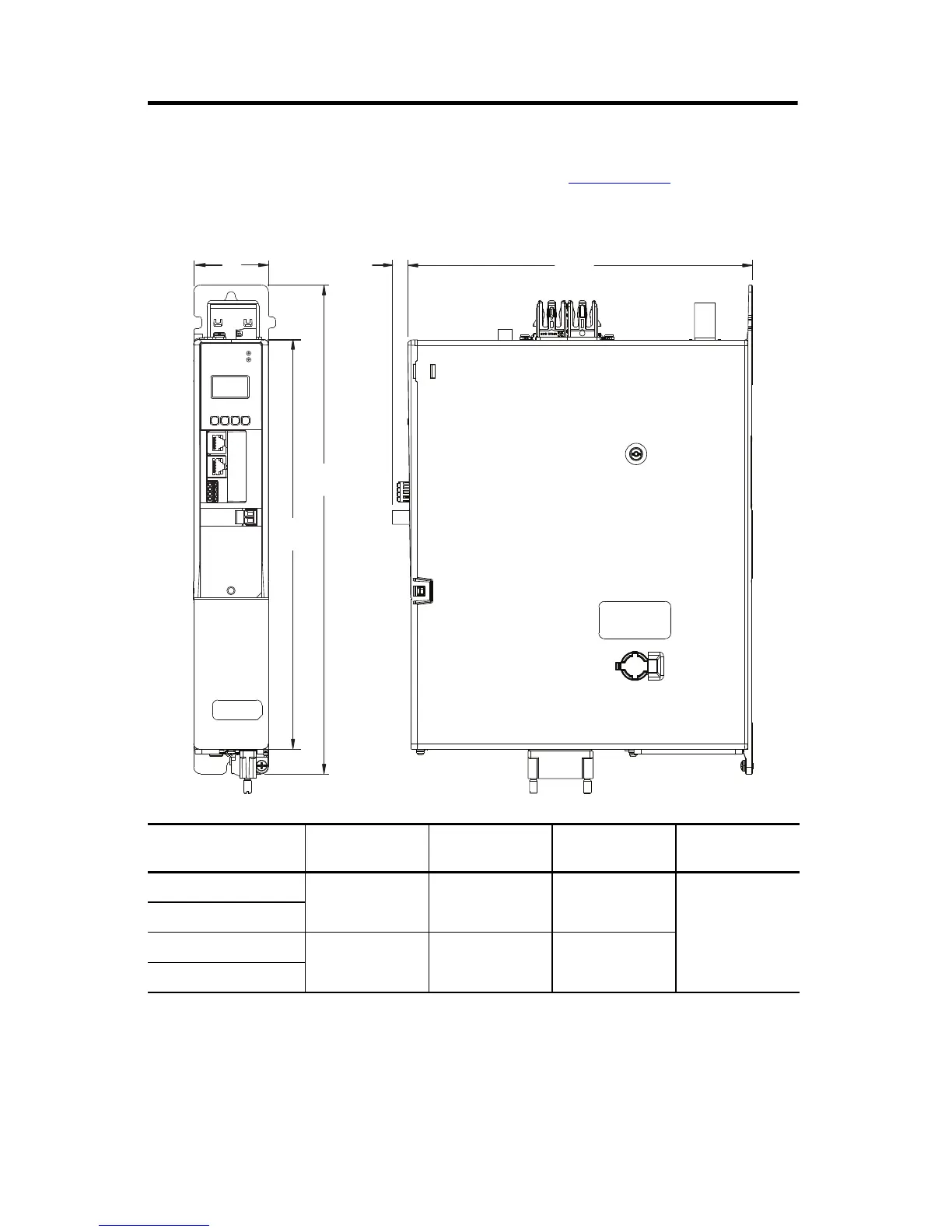

Product Dimensions
Refer to the Kinetix Servo Drives Technical Data, publication GMC-RM003, for product
dimensions of all Kinetix 5700 drive modules.
DC-bus Power Supply
Cat. No.
A
mm (in.)
B
mm (in.)
C
mm (in.)
D
mm (in.)
2198-P031
55 (2.17) 300 (11.8) 358 (14.1)
252 (9.9)
2198-P070
2198-P141
85 (3.35) 375 (14.8) 433 (17.0)
2198-P208
B
MOD
NET
2
1
1
4
I/O
C
A
D
12.0
(0.47)
Dimensions are in mm (in.)
2198-P031
DC-bus Power Supply is Shown
