Kinetix 5700 DC-bus Power Supplies 7
Rockwell Automation Publication 2198-IN009B-EN-P - June 2015
Calculate the left-to-right hole pattern for any Kinetix 5700 drive module configuration by
following these steps.
1. The first hole location is zero.
2. The second hole location is module width minus 55 mm.
3. The next hole location is 55 mm.
4. Repeat step 2 and step 3 for the remaining holes.

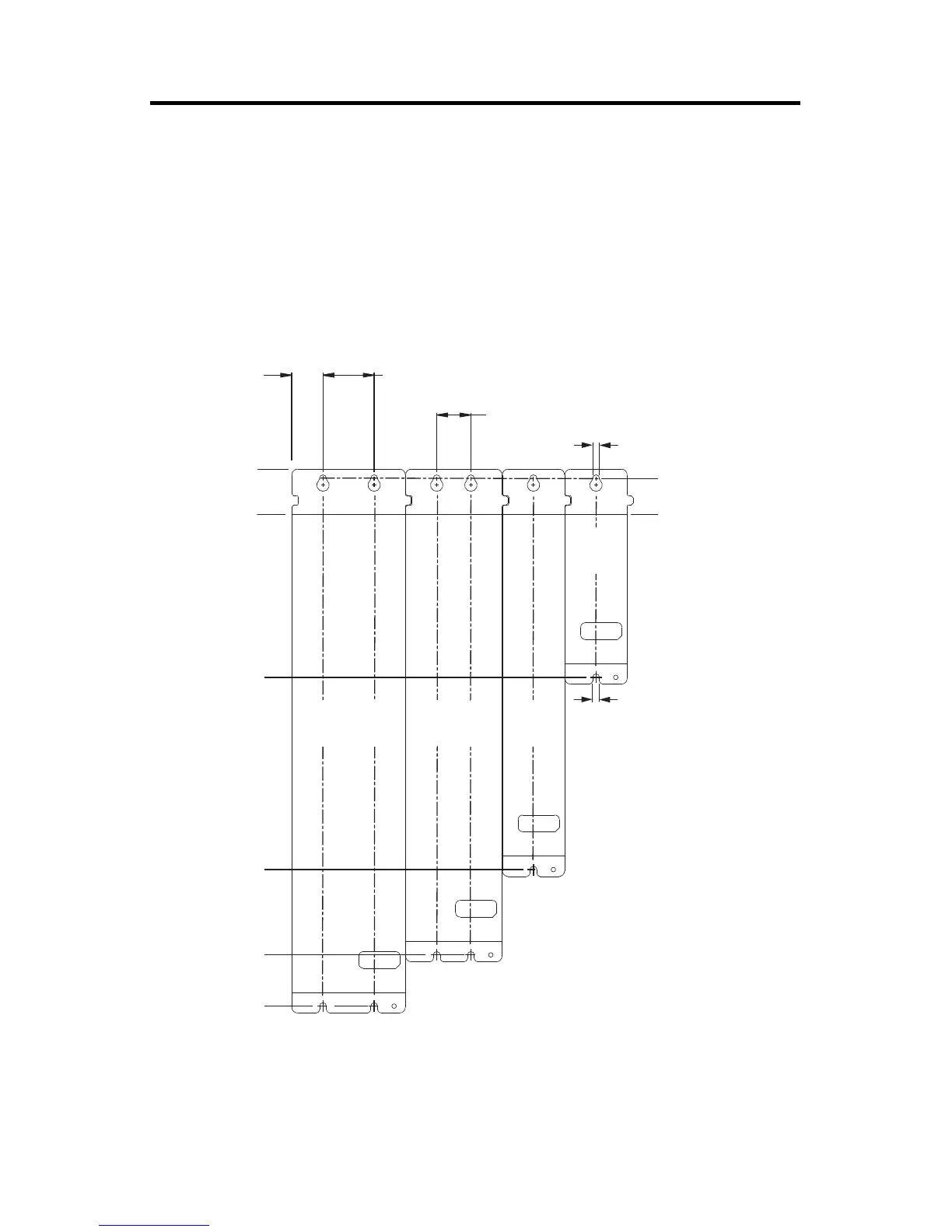

Kinetix 5700 Mounting Hole Patterns
Also available to assist you with mounting holes is the Kinetix 5700 System Mounting Toolkit,
catalog number 2198-K5700-MOUNTKIT.
27.5 (1.08)
Dimensions are in mm (in.)
Module Top
176 (6.93)
Lower Mounting Hole
345 (13.58)
Lower Mounting Hole
420 (16.54)
Lower Mounting Hole
465 (18.31)
Lower Mounting Hole
Ø 6.0 (0.24)
Typ ic al
Ø 6.0 (0.24) Typical
00.0 (0.00)
Upper Mounting Holes
32.0 (1.26)
Module Top, reference
45.0 (1.77) See Mounting Hole Pattern Calculations
30.0 (1.18) See Mounting Hole Pattern Calculations
100 mm Wide
Module
85 mm Wide
Module
55 mm Wide
Module
55 mm Wide
Module
Applies to only 2198-S160-ERS3
Single-axis Inverter
Applies to 2198-Pxxx Power Supplies,
2198-S086-ERS3 and 2198-S130-ERS3 Inverters,
and 2198-Dxxx-ERS3 Inverters
Applies to 2198-Pxxx Power Supplies,
2198-Dxxx-ERS3 Inverters, and
2198-CAPMOD-2240 Capacitor Module
First Mounting Hole
(typical) Upper and Lower
Mounting Hole
(all drive modules)
Applies to only
2198-CAPMOD-DCBUS-IN
Extension Module
To Next Page
