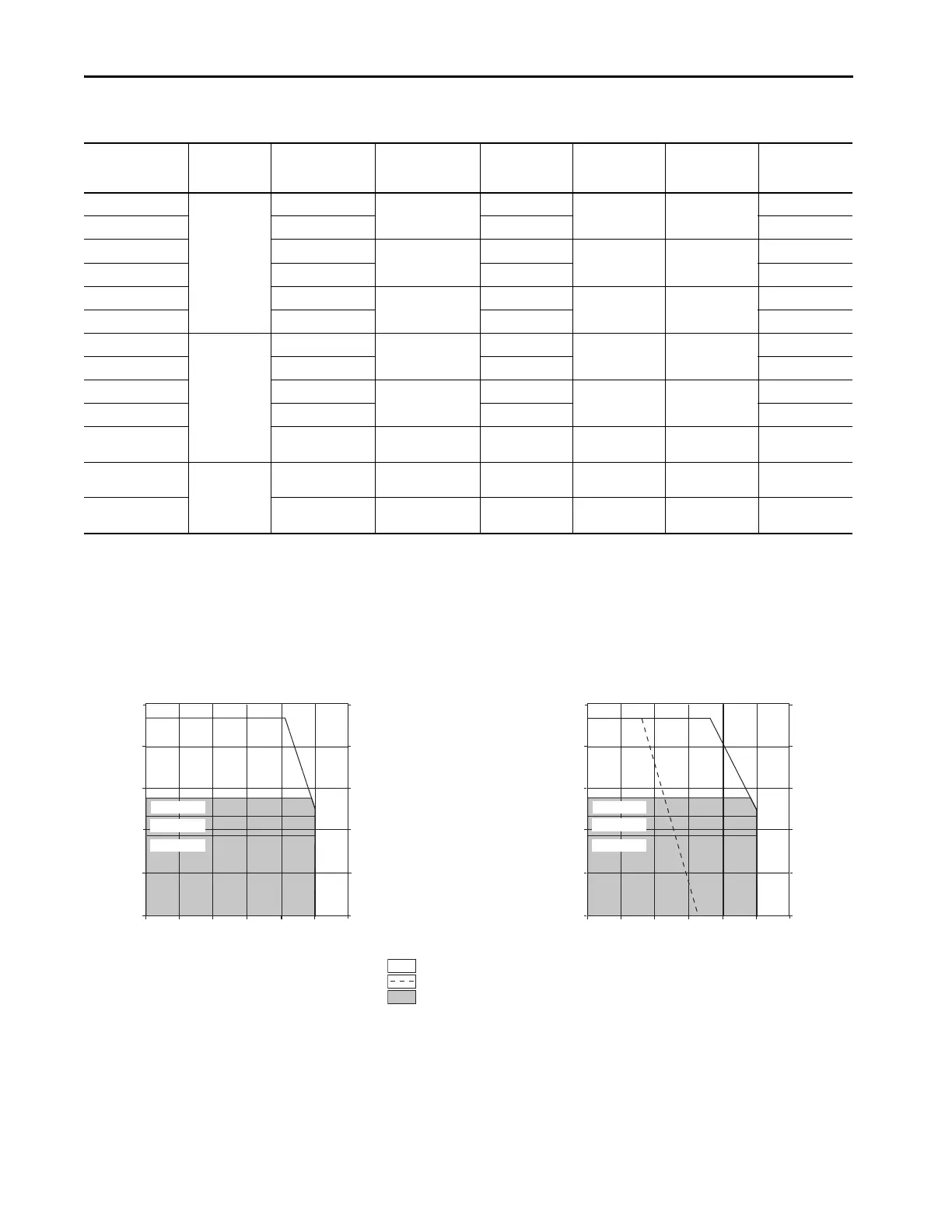

LDC-Series Performance Specifications with Kinetix 6000 (200V-class) Drives (continued)
Performance specification data and curves reflect nominal system performance of a typical system with actuator at 40 °C (104 °F) and drive at 50 °C (122 °F) ambient and rated line voltage. For additional
information on ambient and line conditions, see Motion Analyzer software.
Kinetix 6000 (200V-class) Drives/LDC-Series Linear Motor Curves
Linear Motor
Cat. No.
Speed, max
m/s (ft/s)
System Continuous
Stall Current
(1)
Amps 0-pk
(1) Values represent the range between no cooling (low value) and water cooling (high value).
System Continuous
Stall Force
(1)
N (lb)
System Peak
Stall Current
Amps 0-pk
System Peak
Stall Force
N (lb)
Linear Motor
Rated Output
kW
Kinetix 6000
200V-class Drives
LDC-C075200-DHT
10.0 (32.8)
7.7…11.5
348…523 (78…117)
22.9
882 (198) 1.74…2.61
2094-AM02-S
LDC-C075200-EHT 3.8…5.7 11.5 2094-AMP5-S
LDC-C075300-DHT 11.5…17.2
523…784 (117…176)
35.6
1368 (308) 2.61…3.92
2094-AM03-S
LDC-C075300-EHT 3.8…5.7 11.9 2094-AM01-S
LDC-C075400-DHT 15.3…23.0
697…1045
(157…235)
47.4
1824 (410) 3.48…5.22
2094-AM03-S
LDC-C075400-EHT 7.7…11.5 23.7 2094-AM02-S
LDC-C100300-DHT
10.0 (32.8)
11.1…16.7
674…1012
(152…227)
34.3
1767 (397) 3.37…5.06
2094-AM03-S
LDC-C100300-EHT 3.7…5.6 11.4 2094-AM01-S
LDC-C100400-DHT 14.8…22.2
899…1349
(202…303)
45.7
2356 (530) 4.49…6.74
2094-AM03-S
LDC-C100400-EHT 7.4…11.1 22.8 2094-AM02-S
LDC-C100600-DHT 22.2…33.3
1349…2023
(303…455)
68.5 3534 (794) 6.74…10.11 2094-AM05-S
LDC-C150400-DHT
10.0 (32.8)
14.1…21.1
1281…1922
(288…432)
45.2 3498 (786) 6.40…9.61 2094-AM03-S
LDC-C150600-DHT 21.1…31.7
1922…2882
(432…648)
67.8 5246 (1179) 9.61…14.41 2094-AM05-S
200
160
120
80
40
0
45.0
36.0
27.0
18.0
9.0
0
2094-AM01-S and LDC-C030100-DHT
Force
(N)
Force
(lb)
Velocity (m/s)
2
86
0
12
10
4
Water Cooling
Air Cooling
No Cooling
400
320
240
160
80
0
89.9
71.9
53.9
36.0
18.0
0
2094-AM02-S and LDC-C030200-DHT
2094-AM01-S and LDC-C030200-EHT
Force
(N)
Force
(lb)
Velocity (m/s)
2
86
0
12
10
4
Water Cooling
Air Cooling
No Cooling
= Intermittent operating region (LDC-Cxxxxxx-DHT)
= Intermittent operating region (LDC-Cxxxxxx-EHT)
= Continuous operating region
