174 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019

Chapter 8 Configuration Examples for a Kinetix Drive

5. Click the Motor Feedback dialog box.

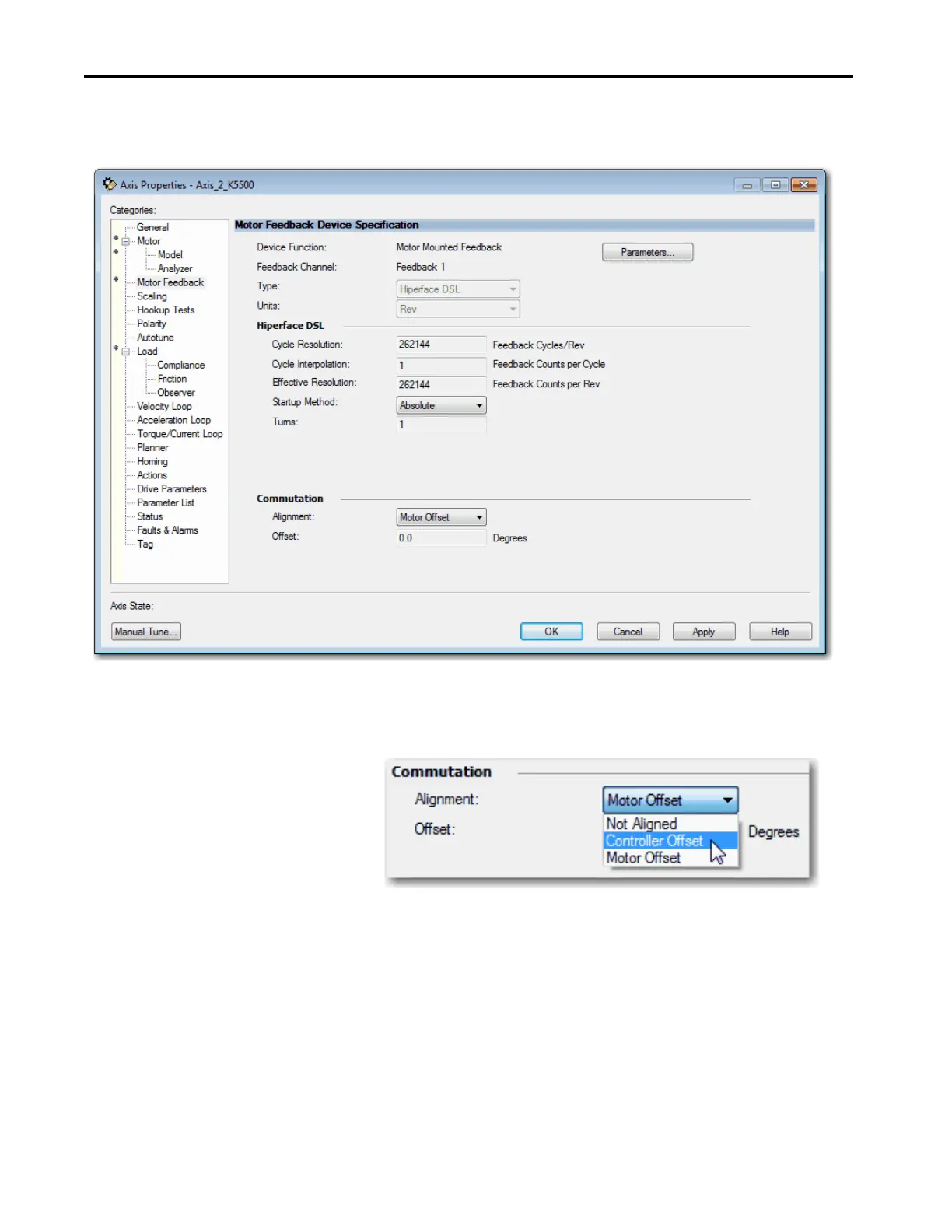

Figure 41 - Example 4: Velocity Loop with Motor Feedback, Motor Feedback Dialog Box

With this drive and motor combination, the Motor-Mounted Feedback

that is available is the Hiperface DSL type. The data is automatically

populated based on that selection. You can assign the commutation

alignment.
