Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 93
Configure Integrated Motion Control Using Kinetix 5700 Drives Chapter 4

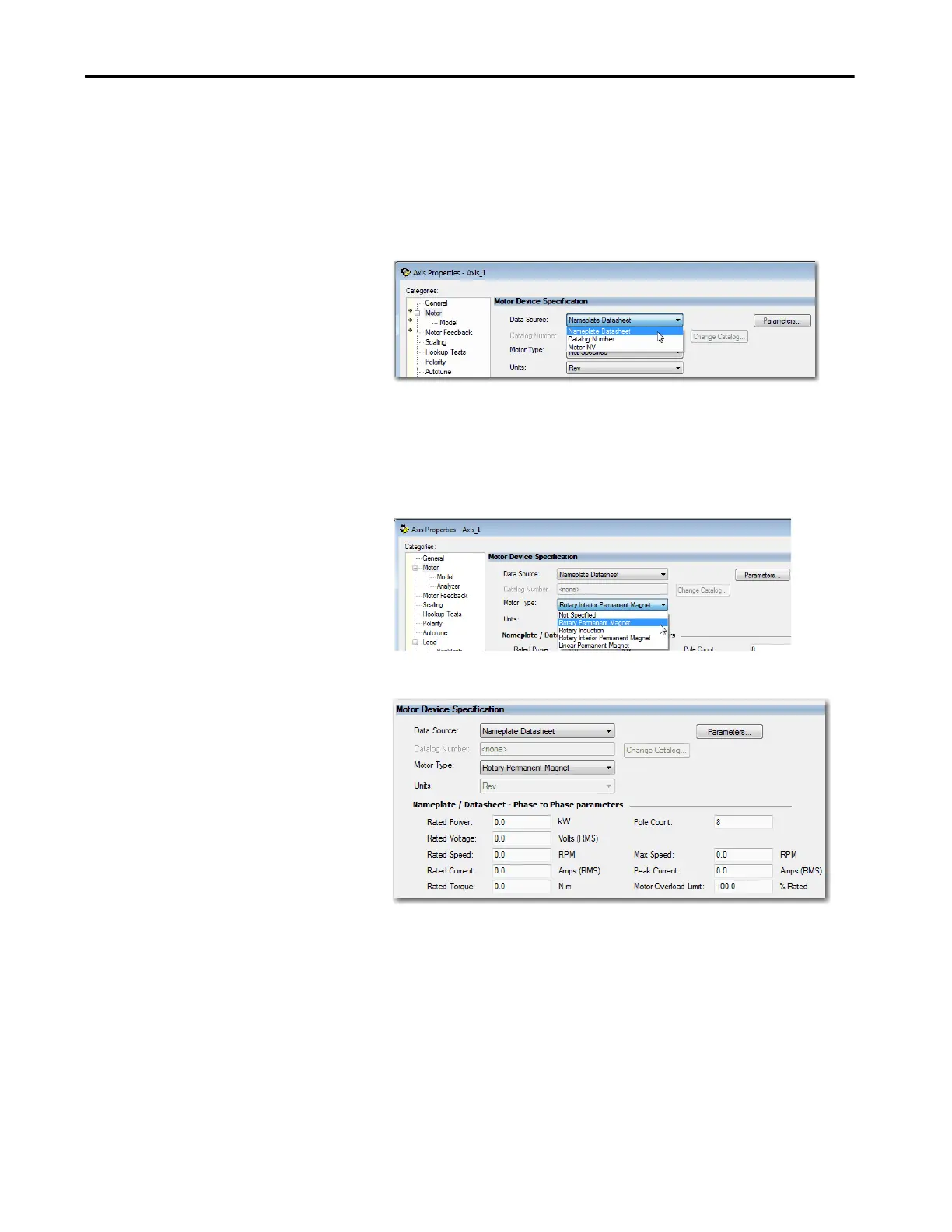

Choose Nameplate as the Motor Data Source
The Nameplate option requires you to enter the motor specification
information from the motor nameplate and the motor data sheet.
1. On the Motor dialog box of Axis Properties, from the Data Source pull-
down menu, choose Nameplate data sheet.
2. Choose a motor type. The following motor types are compatible:
• Surface Mount Permanent Magnet
•Linear Permanent Magnet
•Rotary Induction
• Interior Permanent Magnet
Notice that the motor information fields are initialized to defaults.
3. Enter the parameter information from the motor Nameplate data sheet
and click Apply.
