8 Kinetix 7000 High Power Servo Drives
Rockwell Automation Publication 2099-IN003C-EN-P - June 2015

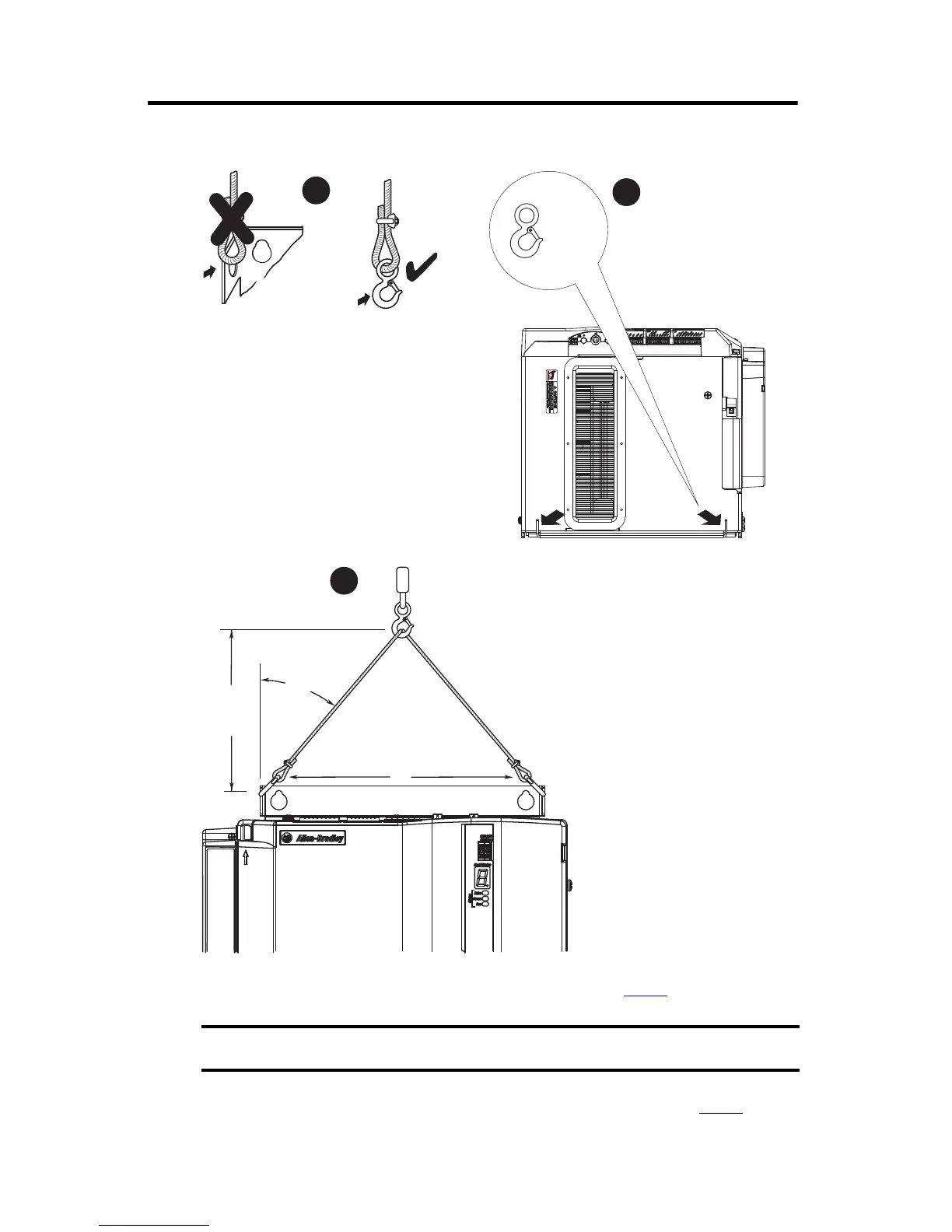

2. Follow these lifting instructions when mounting the drive to the panel.
3. Install the recommended mounting bolts listed in the table on page 9
.
4. Tighten all mounting fasteners to the value recommended in the table on page 9
.
Each Kinetix 7000 drive requires four mounting bolts.
1
>
1
/
2
A
A
5
°
4
For 2099-BM09-S and 2099-BM10-S Drives
37.2 kg (82.0 lb)
A = 259.1 mm (10.2 in.)
For 2099-BM11-S and 2099-BM12-S Drives
71.4 kg (157.5 lb)
A = 360.6 mm (14.2 in.)
3
