Organize Tags Chapter 2
EXAMPLE
User-defined data type that stores the data that is required to run a machine.
Because several drill stations require the following mix of data, use a user-defined data type.

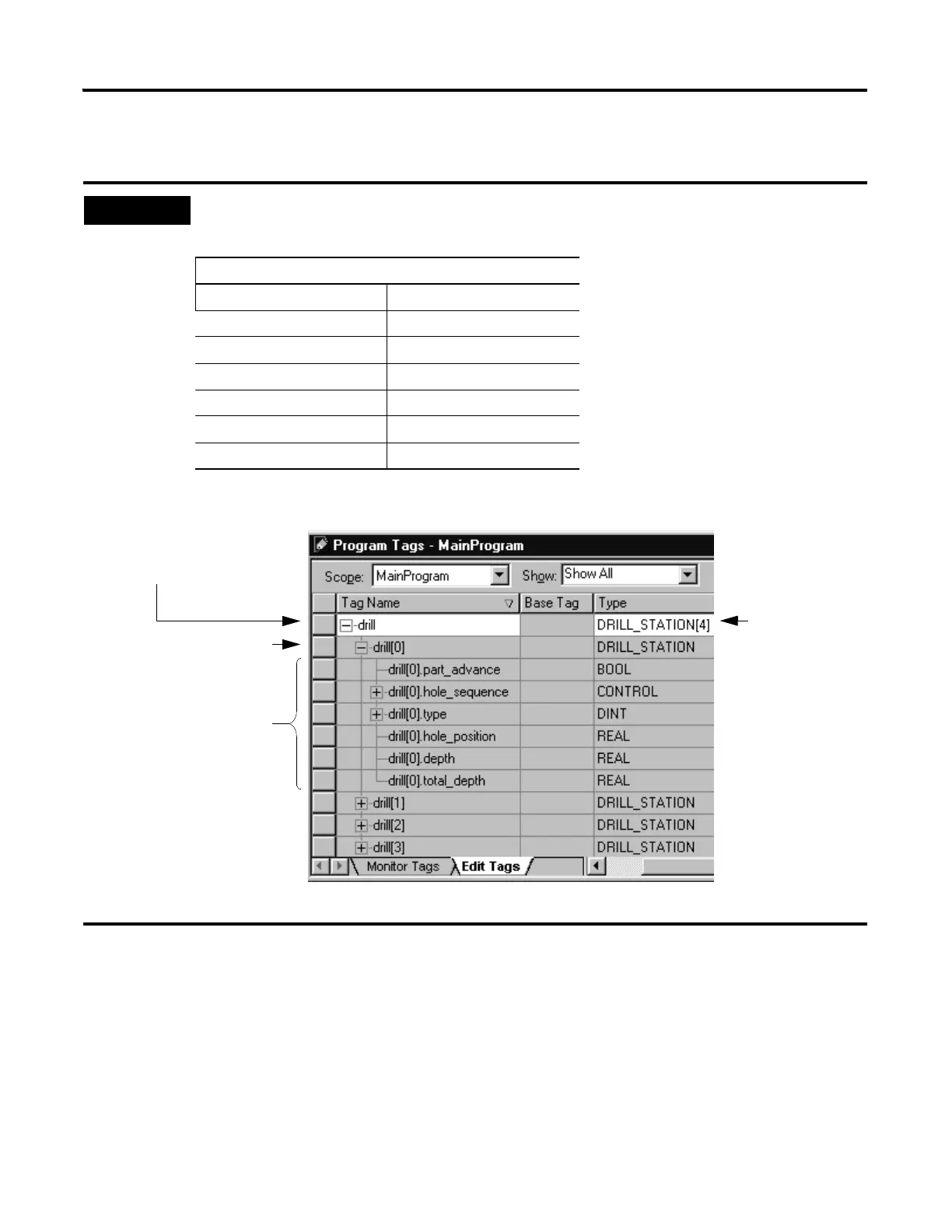

An array that is based on this data type looks like this example.
Name (of data type): DRILL_STATION
Member Name Data Type
Part_advance BOOL
Hole_sequence CONTROL
Type DINT
Hole_position REAL
Depth REAL
Total_depth REAL
42583
Array of Drills
First Drill
This array contains
four elements of the
DRILL_STATION
data type.
Data for the Drill
